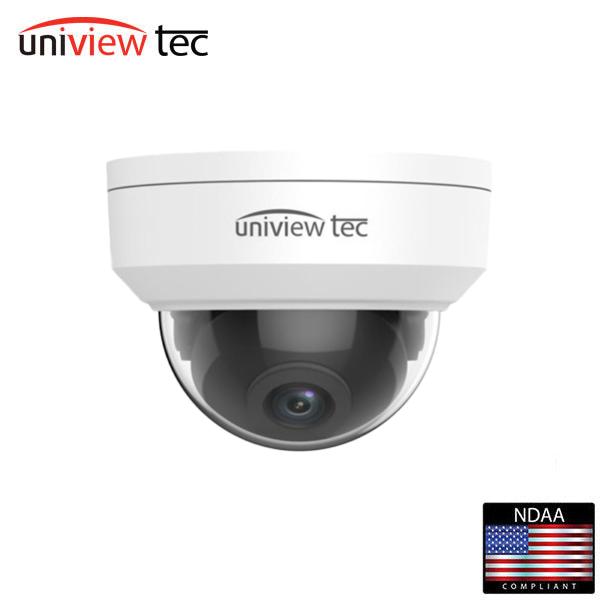

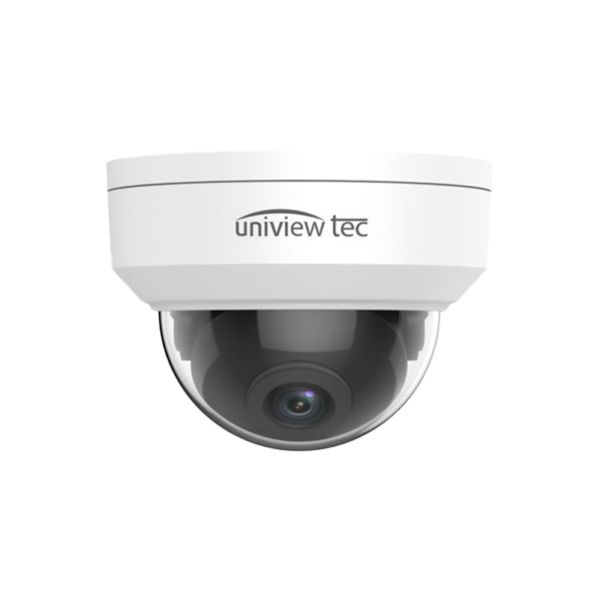

*Discontinued* Uniview Tec / UVT / IPV528X / Dome Camera / IP / 5MP / 2.8mm Fixed Lens / True Day-Night / WDR / Lighthunter / 30m IR
- $169.00
-
- $169.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesLightHunter Technology for ultra-high quality color video images in low light applications with up 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet2.8mm fixed lens, TRUE Day/Night and WDR functionality for all Lighting ConditionsTwo-way Audio, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)Triple Video Streams, ONVIF Profile S CompliantIntelligent Perimeter Protection with Smart Intrusion Detection AnalyticsPoE & 12VDC Power Options; Optional Wall and Pendant Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $169.00
-
- $169.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8mm@ F1.6 |
| Angle of View (H x V ) | 96.1° x 55.3° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 30m (98 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main Stream: 5MP (2880 x 1620) @ 30fps Sub: D1 (720 x 576) @ 30fps Third Stream: CIF (352 x 268) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 4.5W |
| Dimensions (Ø x H) | ?108.7 x 81.1 mm (Ø4.3” x 3.2”); 0.43kg (0.93lb) |
| Audio I/O & Compression | 1 / 1; G.711 |
| Alarm I/O | 1 / 1 |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FCC |
