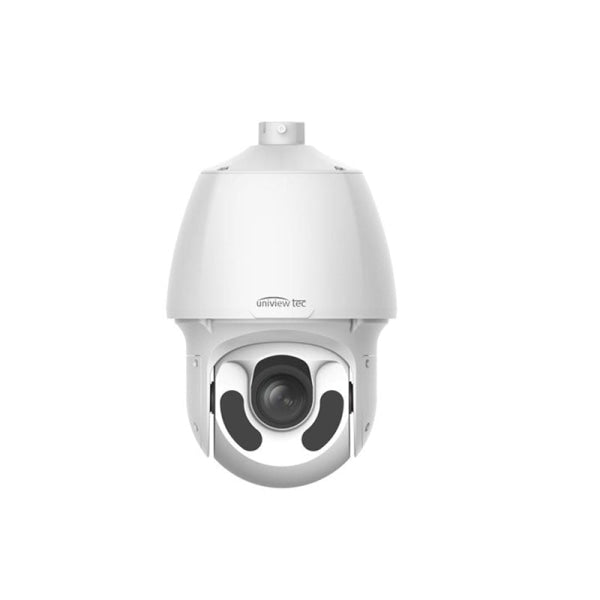

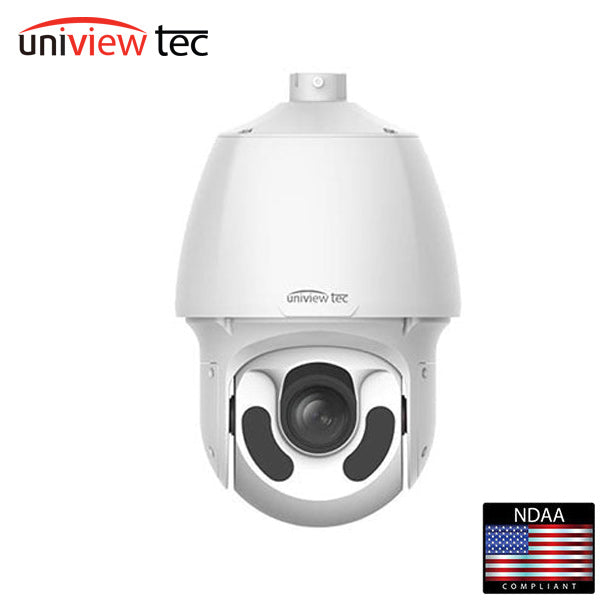

*Discontinued* Uniview Tec / UVT / IPCSD233X / Dome Camera / 2MP / 4.5mm - 148.5mm Optical Lens / Lighthunter / WDR / 150m IR
Out of Stock
SKU:
UNT-IPCSD233X-delete
NSID:
68331
- $869.00
-
$1,239.60 - $869.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high image quality in low light applications up to 2MP, Full HD 1920 x 1080 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 492 Feet
- 4.5 ~ 148.5mm, 33x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 300°/sec and up to 1024 Preset Positions
- Five Video Streams; ONVIF Profile Series Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP66 Weather Resistant Housing; Optional Mounts Available; PoE, 24VAC/DC Power
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $869.00
-
$1,239.60 - $869.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/2.8", progressive scan , 2 megapixel, CMOS |
| Lens | 4.5 ~ 148.5 mm, auto focus / MTR zoom lens |
| Angle of View (H x V) | 56.2° ~ 2.6° x 33.5° ~ 1.4° (wide ~ tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 150m (492ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate/ Stream | Main: 2MP (1920 x 1080) @ 60fps Sub: 2MP (1920 x 1080) @ 60fps Third , Fourth & Fifth Streams: D1 (720*576), Max 60fps |
| HLC, BLC, Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Pan and Tilt, Presets, Patterns, Patrols | 360° Endless , 300°/s max Pan; -15° ~ 90° Tilt, 240°/s max; 1024 Presets |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, G, and T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 24VAC or 24VDC +/-25%; PoE (Optional Injector Required); Max 48W |
| Dimensions (Ø x H) & Weight | Ø227 x 359.4mm (Ø8.9 x 14.2”); 5.3kg (11.68lb) |
| Audio I/O & Compression | 1 / 1; G.711U, G.711A |
| Alarm I/O / Serial Port | 2 / 1; 1 x RS485 |
| Operating Temperature & Humidity |
-40°C ~ +65°C (-40°F ~ 149°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, CE, FCC |
