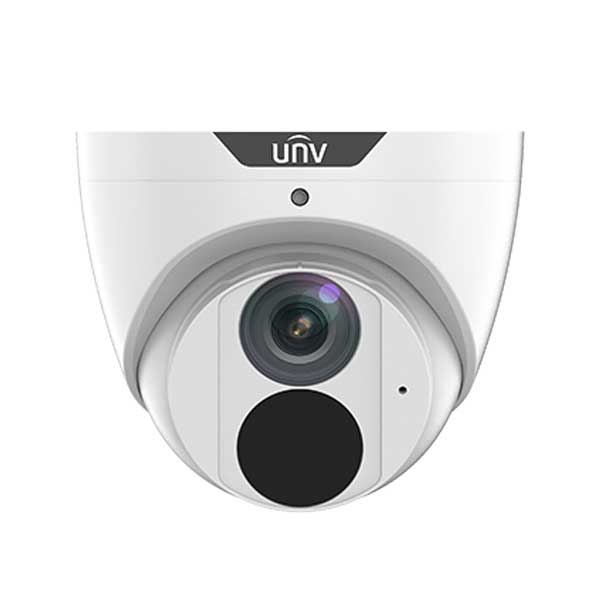

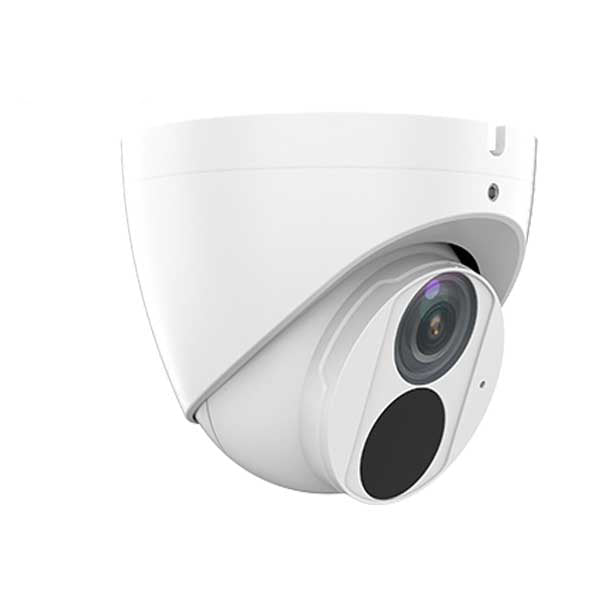

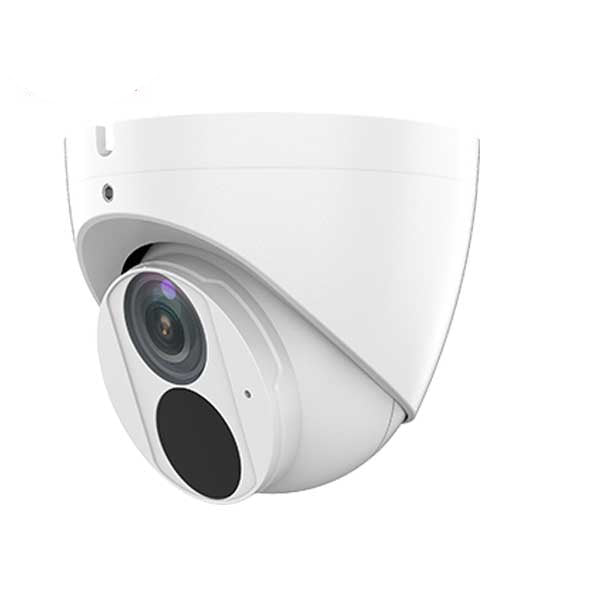

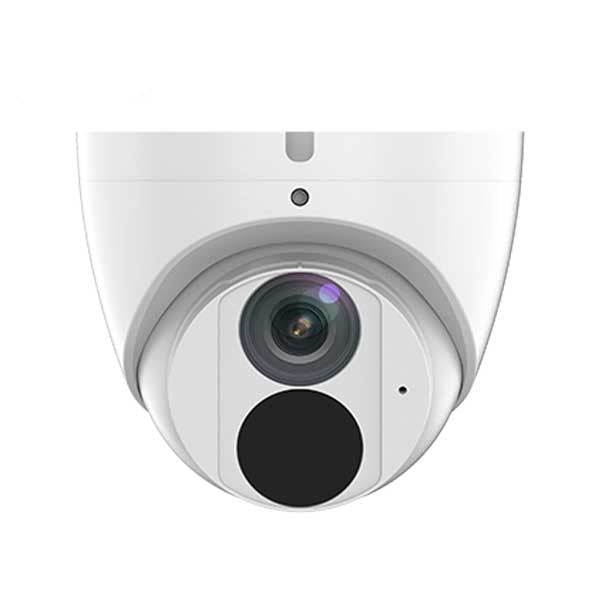

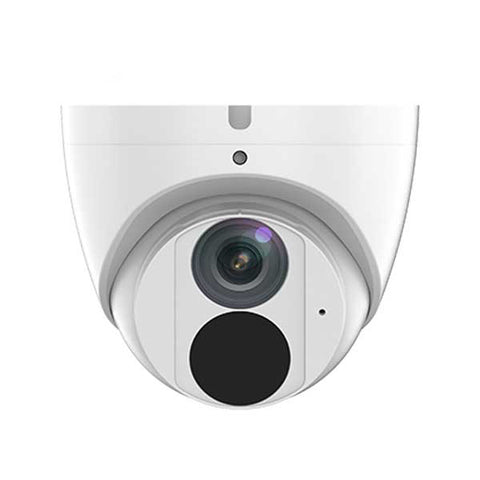

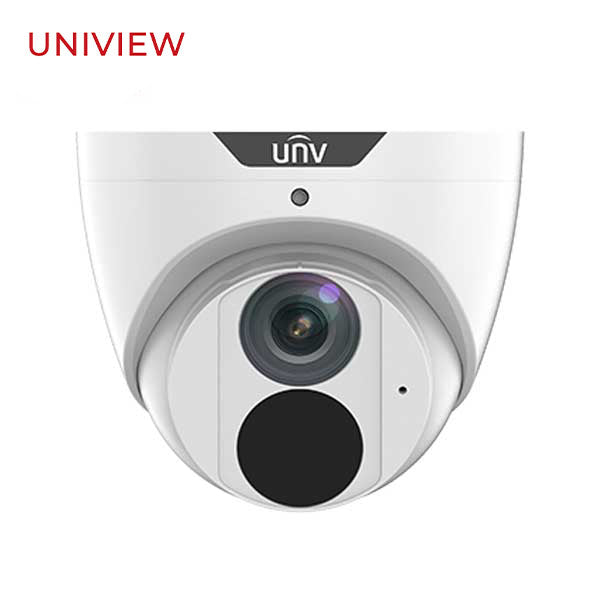

*Discontinued* Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SB-ADF28KM-I0
Out of Stock
SKU:
UNV-3618SB-ADF28KM-I0
NSID:
7255
- $309.00
-
- $309.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- 8MP; 2.8mm
- Supports 256 G Micro SD card
- IP67 protection
- True WDR 120dB
- Built-in Mic
- Smart IR up to 30m (98ft)
- Ultra 265, H.265, H.264, MJPEG
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $309.00
-
- $309.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
| Camera | |
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 |
| DORI Distance | Lens: 2.8mm Detect: 84m (275.6ft) Observe: 33.6m (110.2ft) Recognize: 16.8m (55.2ft Identify: 8.4m (27.5ft) |
| Angle of View (H) | 112.4°~ 86.5° |
| Angle of View (V) | 60.1°~ 44.1° |
| Angle of View (O) | 146.1°~112.5° |
| Adjustment angle | Pan: 3° ~ 360° / Tilt: 0° ~ 80° / Rotate: 3° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR on |
| WDR | 120dB |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >56 dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Intelligent | |
| Smart Intrusion Prevention | Line crossing detection, Intrusion detection, Leave Area detection; |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Dimensions (Ø x H) | Φ110.5 x 94.1mm (Φ4.4” x 3.7”) |
| Weight | 0.44kg (0.97lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Reset Button | N / A |
Downloads
Digital Defog
The Uniview 8MP WDR Eyeball Network IR Camera puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.
True WDR
The 3618SB-ADF28KM-I0 IP Eyeball Camera has True 120dB WDR (Wide Dynamic Range). Scenes with a variable range of light are difficult for most cameras. However, with True WDR Cameras, scenes are rendered in full detail for bright and dim areas simultaneously. This is especially helpful in applications such as entry ways where you may have dim lighting indoors, but your doorway or windows have bright sunlight.
ONVIF COMPATIBILITY
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
