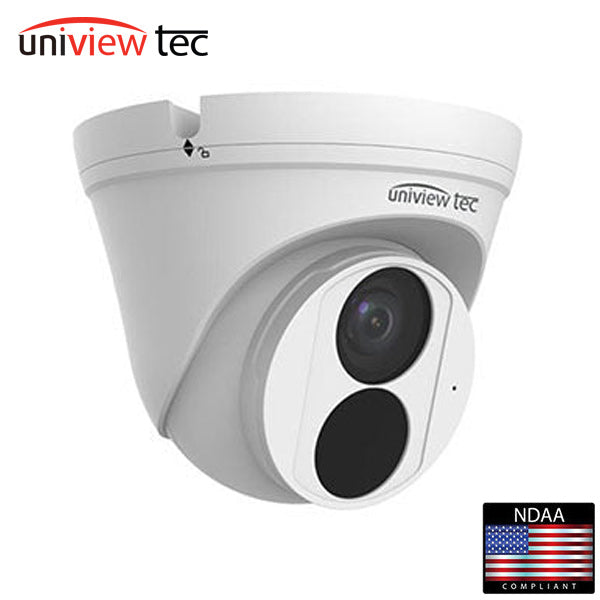

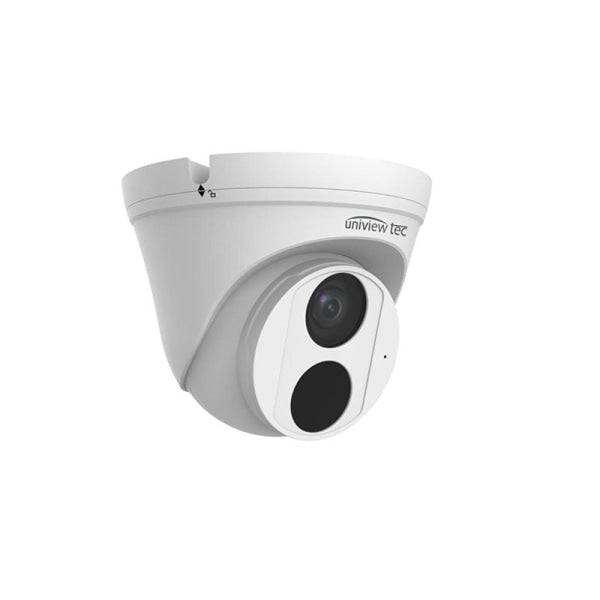

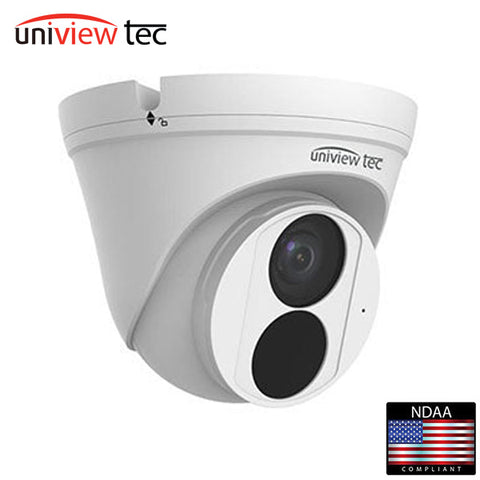

*Discontinued* Uniview Tec / UVT / IPT5E28X / Turret Dome Camera / 5MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR
Out of Stock
SKU:
UNT-IPT5E28X
NSID:
68314
- $149.00
-
- $149.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP, 2880 x 11620 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- One-way Audio w/ Built-in Microphone, Backlight Compensation, 3D DNR (Digital Noise Reduction); ONVIF Profile Series Compliant
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Defog, Corridor Mode, Privacy Mask and Motion Detection, Dual Video Streams
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- PoE & 12VDC Power Options and Optional Mounts Available; IP67 Weather Resistant Housing
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $149.00
-
- $149.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 112.9° x 59.1° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Signal / Noise Ratio | >52dB |
| IR LED Range | Up to 30m (98 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 5MP (2880 x 1620) @ 25fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | ONVIF (Profile S, Profile T), API |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | RJ45, 10M/100M Base-T X Ethernet |
| General | |
| Power | 12 V DC, PoE (IEEE802.3 af); Power consumption: Max 4W |
| Audio I / O & Compression | 1 / 0, with built-in microphone; G.711 Compression |
| Dimensions (Ø x H) & Weight | Φ118 x 95 mm (Ø4.6 x 3.8”); 0.35kg (0.77lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
