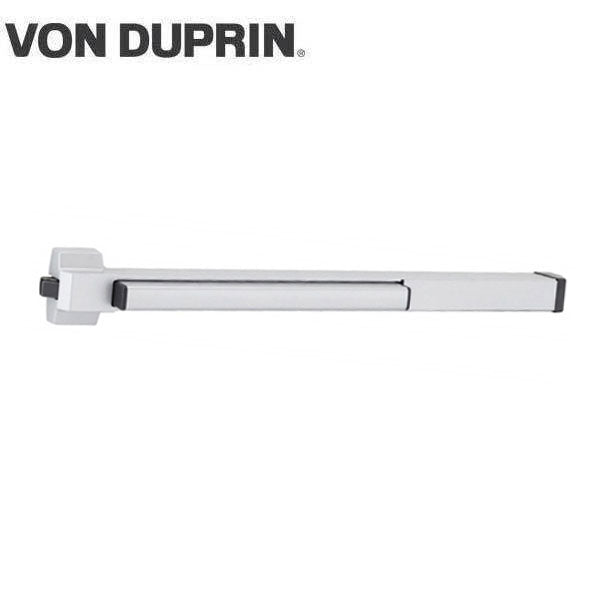

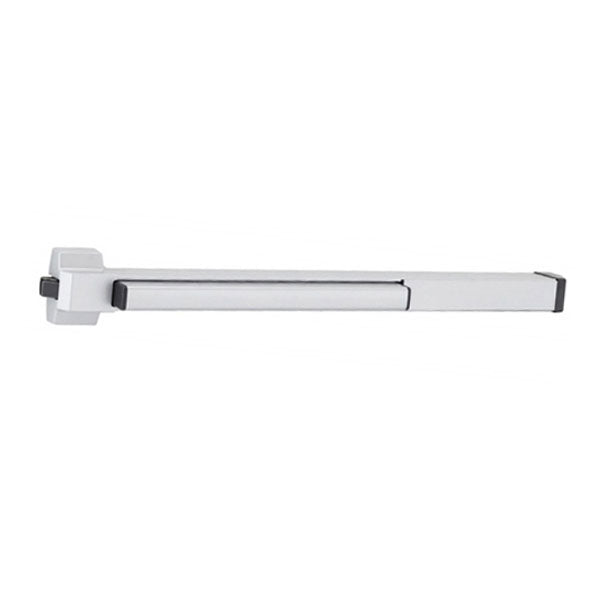

Von Duprin - 22EO - Rim Exit Device - Exit Only - No Trim - Aluminum Finish - 3 Foot

Available to Order
SKU: VNDP-22EO-SP28
NSID: 7322

Please Note: This product ships within 2 Days

$351.78
$579.60
$351.78


The 22 Series is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touch bar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Trim No Trim - Exit Only
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths 3' (914 mm)
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm
Projection push bar

Push bar neutral - 3 3/4" (95 mm)

Push bar depressed - 3" (76 mm)

Latch bolt Deadlocking, 3/4" (19 mm) throw
Fasteners Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws
Dogging feature Hex key dogging standard
Strikes 299 – Dull black
Fire Rated No
Certifications ANSI A156.3 – 2008 Grade 1.
