$430.00 $704.00
Available: In Stock
Wishlist
  • Product SKU: VNDP-22L06-3-SP28
  • VNDP-22L06-3-SP28
    Item Number: 7954

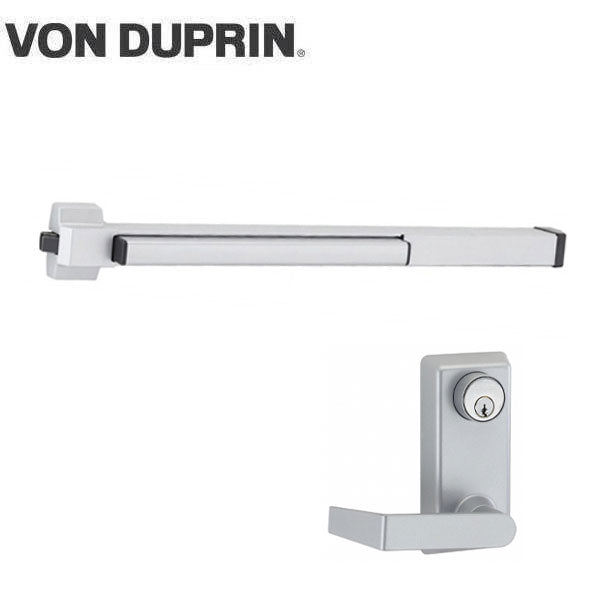

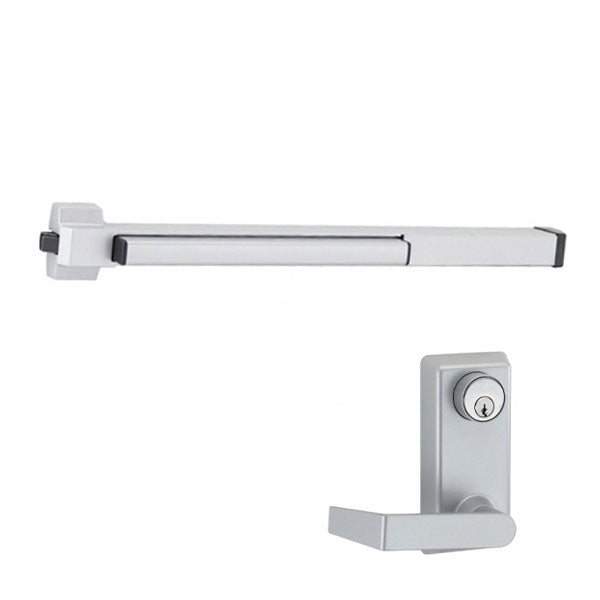

    The 22 Series is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touch bar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

    $430.00

Specifications

Trim  Trim Lever
Trim description 230L
Lever Style  06 Standard
Escutcheon plate
size
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
Projection 2 5/8" (67 mm)
ANSI function 08 Entrance by lever. Key (pullside) locks/unlocks lever.
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Cylinder 1/4" Mortise
Device lengths 3' (914 mm)
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm
Projection push bar

Push bar neutral - 3 3/4" (95 mm)

Push bar depressed - 3" (76 mm)

Latch bolt Deadlocking, 3/4" (19 mm) throw
Fasteners Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws
Dogging feature Hex key dogging standard
Strikes 299 – Dull black
Fire Rated  No
Certifications ANSI A156.3 – 2008 Grade 1.
