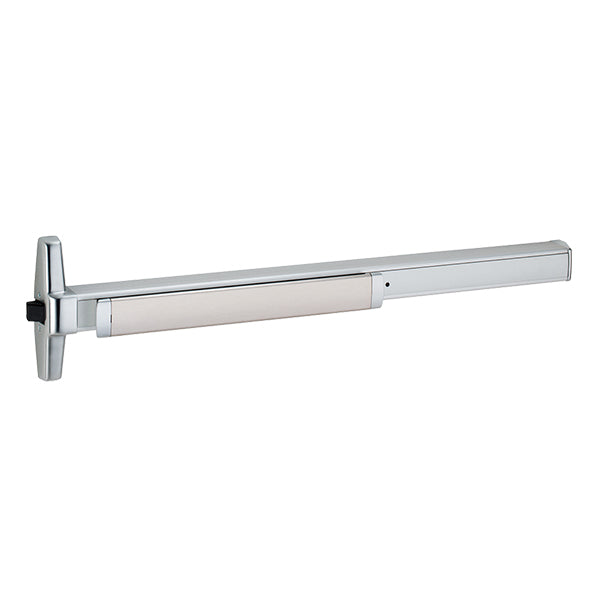

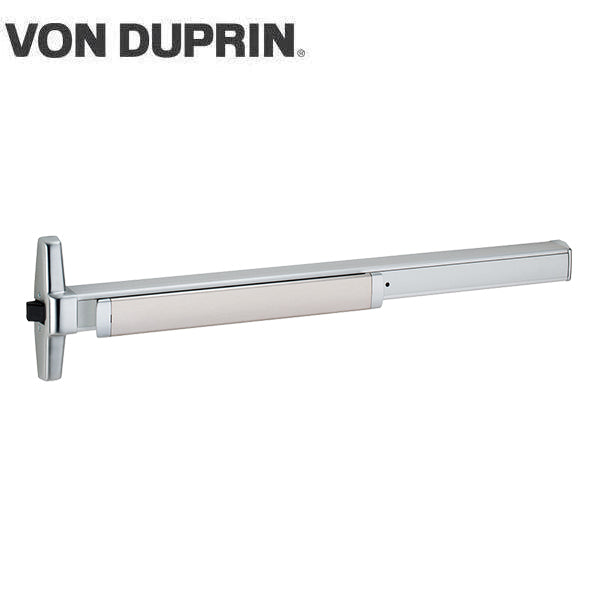

*Discontinued* Von Duprin - 35A - Panic Rim Exit Device - Narrow Stile Pushpad - 48" - Night Latch - RHR - Satin Chrome - Less Trim - Grade 1
*Discontinued* Von Duprin - 35A - Panic Rim Exit Device - Narrow Stile Pushpad - 48" - Night Latch - RHR - Satin Chrome - Less Trim - Grade 1
$1,438.14$1,725.77On Sale
You save $287.63 (17%)
The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.
Architectural design elements differ slightly between the 33A and the 35A. The 35A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case.
Details
Specifications
| Trim | No Trim - Exit Only |
| Device functions | EO - Exit Only |
| Device lengths | 3' 2' 4" to 3' (711mm to 914 mm) Door size |
| Device centerline from finished floor |
39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion |
| Center case dimensions |
8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm) ) |
| Mechanism case dimensions |
2 1/4" x 2 1/4" (57mm x 57mm) |
| Projection push bar |
Pushbar Neutral – 3 13/16" (97 mm) |
| Latch bolt | Deadlocking, 3/4" (19mm) throw |
| Fasteners | Includes 1-3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #325 SNB furnished standard for EO (exit only device) |
| ELR: | Quiet Motorized |
| Escutcheon: | Pull |
| Function: | Night Latch |
| Handing | Right Hand Reverse |
| Finish | Satin Chrome |
| Dogging feature | Hex key dogging standard |
| Strikes | 1439 – Dull black |
| Certifications | ANSI/BHMA A156.3 2014 Grade 1 certified ANSI/UL 10C (fire-rated only) ANSI/UL 305 CAN/ULC-S104 (fire-rated only) CAN/ULC-S132 |
