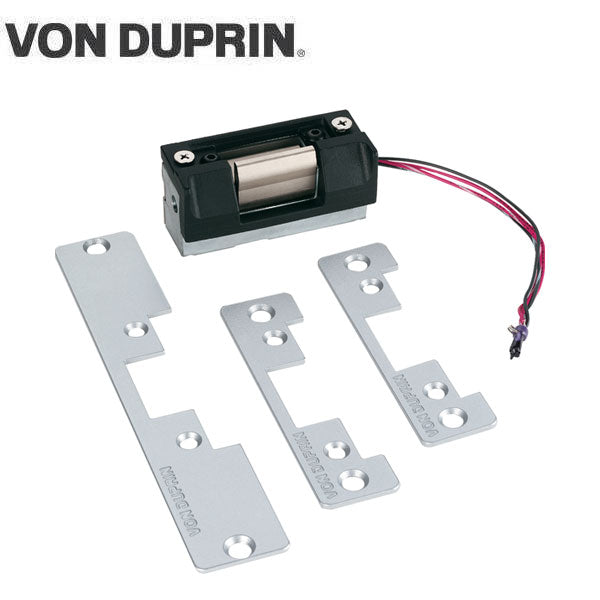

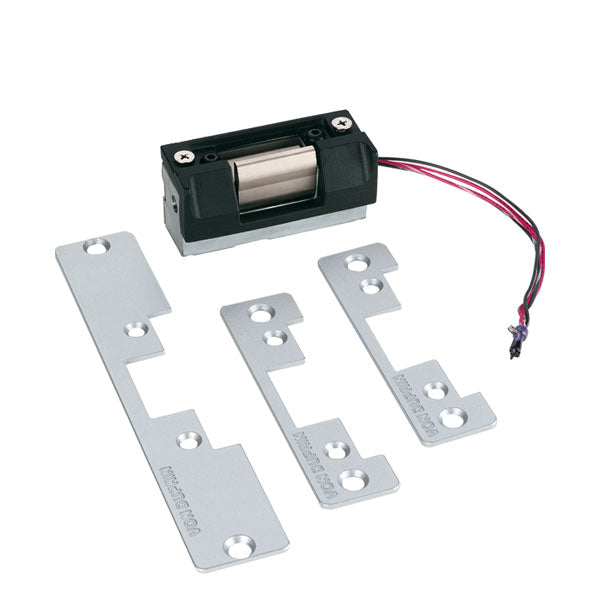

Von Duprin - 5100 Electric Strike Kit w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC
Von Duprin - 5100 Electric Strike Kit  w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC
Von Duprin - 5100 Electric Strike Kit  w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC
Von Duprin - 5100 Electric Strike Kit  w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC
Von Duprin - 5100 Electric Strike Kit  w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC

Von Duprin - 5100 Electric Strike Kit w/ 3 Faceplates - Adjustable Fail Safe / Fail Secure - 12/24VDC

$135.75 $152.25
Available: In Stock
Wishlist
  • Product SKU: VNDP-5100-3FP-SP28
  • VNDP-5100-3FP-SP28
    Item Number: 7938

    The Von Duprin 5100 electric strike has been designed to offer flexibility and convenience for locksmiths and security professionals. This easy-to-install electric strike was created for medium-duty applications, specifically to control traffic flow through interior and exterior openings in retail and commercial environments.

    The 5100 electric strike is compatible with a wide range of cylindrical devices and is extremely versatile for field conversions. The combination of three faceplate options plus field selectable voltage and power fail modes allows it to be changed on the job site to create as many as 12 different configurations. An adjustable keeper also improves fit for applications with weather stripping or tight door preps

    More Information Below

    $135.75
Construction Stainless steel construction Tamper resistant
Static strength 1300 lbs
Dynamic strength 70 ft-lbs.
Endurance 1,000,000 cycles
Fail Safe / Fail Secure  Field Adjustable Fail Safe/Fail Secure
Voltage Dual voltage 12 or 24VDC
Handing Non Handed
Solenoid Internally mounted solenoid
Lockset compatibility Deeper depth of 1⁄2" is sufficient to accommodate all cylindricallocks up to 5⁄8" throw and most aluminum narrow stile deadlatches.
Latchbolt throw 1⁄ 2" to 5⁄8" (1 ⁄ 2" keeper depth)
Face plate length 4 7⁄8" or 7 15⁄16"
Depth 1 11⁄16"
Frame application
Hollow metal, aluminum and wood
Number of doors Single
Finish US SP28/BHMA 698 Aluminum
Certifications Certifications UL 1034 burglary listing
Warranty 1 year limited manufacturer warranty



Downloads



Please Note: Bulk price rates are available! Call us at 1-800-878-6604.

VNDP-5100-3FP-SP28
Item Number: 7938

The Von Duprin 5100 electric strike has been designed to offer flexibility and convenience for locksmiths and security professionals. This easy-to-install electric strike was created for medium-duty applications, specifically to control traffic flow through interior and exterior openings in retail and commercial environments.

The 5100 electric strike is compatible with a wide range of cylindrical devices and is extremely versatile for field conversions. The combination of three faceplate options plus field selectable voltage and power fail modes allows it to be changed on the job site to create as many as 12 different configurations. An adjustable keeper also improves fit for applications with weather stripping or tight door preps

More Information Below

Construction Stainless steel construction Tamper resistant
Static strength 1300 lbs
Dynamic strength 70 ft-lbs.
Endurance 1,000,000 cycles
Fail Safe / Fail Secure  Field Adjustable Fail Safe/Fail Secure
Voltage Dual voltage 12 or 24VDC
Handing Non Handed
Solenoid Internally mounted solenoid
Lockset compatibility Deeper depth of 1⁄2" is sufficient to accommodate all cylindricallocks up to 5⁄8" throw and most aluminum narrow stile deadlatches.
Latchbolt throw 1⁄ 2" to 5⁄8" (1 ⁄ 2" keeper depth)
Face plate length 4 7⁄8" or 7 15⁄16"
Depth 1 11⁄16"
Frame application
Hollow metal, aluminum and wood
Number of doors Single
Finish US SP28/BHMA 698 Aluminum
Certifications Certifications UL 1034 burglary listing
Warranty 1 year limited manufacturer warranty



Downloads



Please Note: Bulk price rates are available! Call us at 1-800-878-6604.

Compatible With
