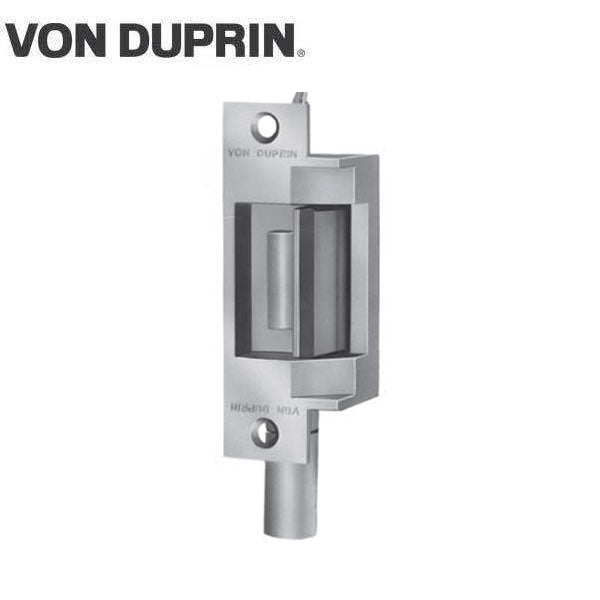

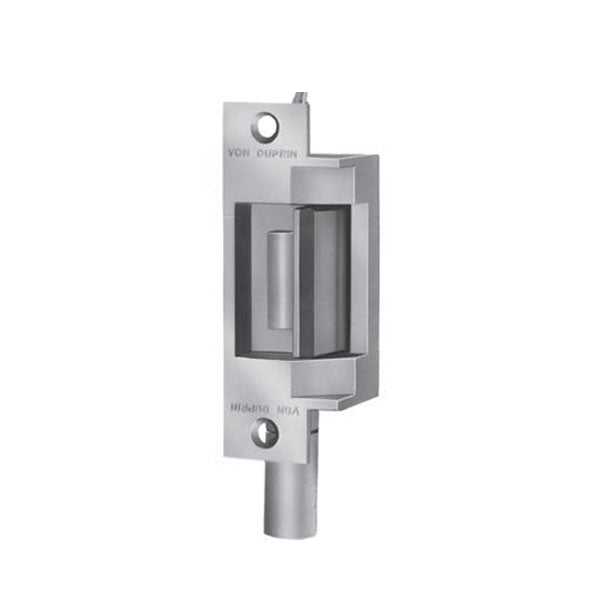

Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Dual Signal Switch - Satin Stainless - 24VDC
- $751.08
-
$901.30 - $751.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 6200 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C listed. 6200 Series electric strikes are designed for use with a variety of mortise or cylindrical locksets. It interfaces with the latch mechanism of the exit device. The 6200 Series movable lip (keeper) allows a door to open, even when the latch bolt is extended. This feature, called remote release provides added benefits such as increased convenience and efficiency. The 6200 Series also provides added security and traffic control.
6200 Series electric strikes can be used for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown below
More Information Below
| Retrofits model | VD 3140, FA 712 |
| Static strength | 1500 lbs. holding strength |
| Dynamic strength | 70 ft-lbs. impact strength. |
| Latchbolt throw | 3/4" |
| Face plate length | 4 7/8" |
| Backbox depth | 1 11/16" |
| Strike Box | Strike box is adjustable to compensate for misalignment of the door or frame |
| Fail Safe / Fail Secure | Fail Secure |
| Voltage | 24VDC |
| Handing | Non Handed |
| Lockset Types | Mortise without deadbolt or Cylindrical |
| Number of doors | Single Doors |
| Door and frame type |
Hollow metal Aluminum |
| Connectors | Two piece plug connectors are furnished for ease of installation and for removal during strike servicing |
| Dual Signal Switch | Strike with Dual Signal Switch has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked, DS is standard, rated 24V, operating range from 2 ampere to 50 milliampere. |
| Application notes | For use with ANSI prep at standard height. Strike pocket inserts are provided to accommodate different manufacturers deadlocking trigger locations. |
| Finish | 630 US32D Satin stainless steel |
| Certifications | UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door - 3 Hours |
| Warranty | 1 year limited manufacturer warranty |
Retrofit Charts -
(Note: Von Duprin cannot guarantee compatibility as other manufacturer’s designs may change without notice)
Downloads
