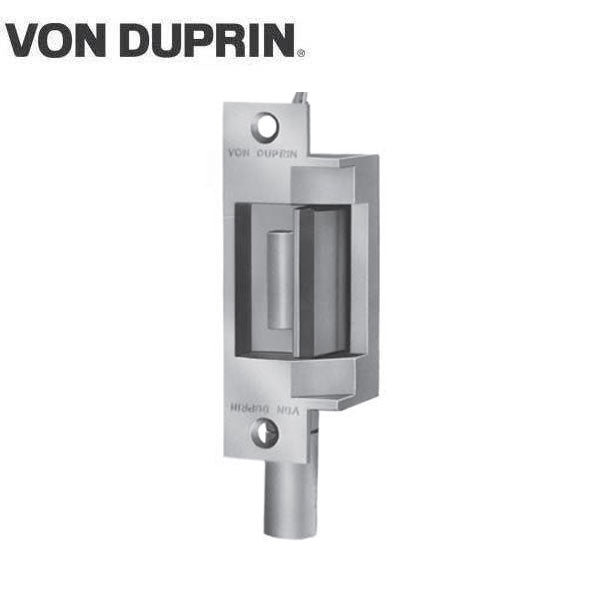

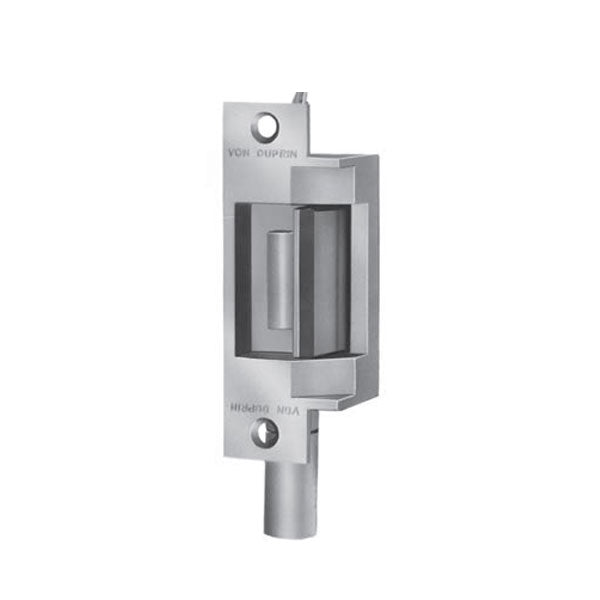

Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC
Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC
Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC
Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC
Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC

Von Duprin - 6211 Electric Strike for Mortise or Cylindrical Devices - Fail Secure - Satin Stainless - 12VDC

$450.00 $766.00
Available: In Stock
Wishlist
  • Product SKU: VNDP-6211-12V-US32D
  • VNDP-6211-12V-US32D
    Item Number: 7950

    The 6200 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C listed. 6200 Series electric strikes are designed for use with a variety of mortise or cylindrical locksets. It interfaces with the latch mechanism of the exit device. The 6200 Series movable lip (keeper) allows a door to open, even when the latch bolt is extended. This feature, called remote release provides added benefits such as increased convenience and efficiency. The 6200 Series also provides added security and traffic control.

    6200 Series electric strikes can be used for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown below

    More Information Below

    $450.00
Retrofits model VD 3140, FA 712
Static strength 1500 lbs. holding strength
Dynamic strength 70 ft-lbs. impact strength.
Latchbolt throw 3/4"
Face plate length 4 7/8"
Backbox depth 1 11/16"
Strike Box Strike box is adjustable to compensate for misalignment of the
door or frame
Fail Safe / Fail Secure  Fail Secure
Voltage 12VDC
Handing Non Handed
Lockset Types Mortise without deadbolt or Cylindrical
Number of doors Single Doors
Door and
frame type
Hollow metal
Aluminum
Connectors  Two piece plug connectors are furnished for ease of installation
and for removal during strike servicing
Application notes For use with ANSI prep at standard height. Strike pocket inserts are provided to accommodate different manufacturers deadlocking trigger locations.
Finish 630 US32D Satin stainless steel
Certifications UL1034 Burglary-Resistant and UL10C Electric Strike for
Fire Door - 3 Hours
Warranty 1 year limited manufacturer warranty





Retrofit Charts -

(Note: Von Duprin cannot guarantee compatibility as other manufacturer’s designs may change without notice)

Downloads



VNDP-6211-12V-US32D
Item Number: 7950
