Von Duprin - 900-FA - Optional Distribution Board - Plug-In Relay to Provide An Interface With Fire or Other Emergency Override Systems
In Stock
SKU:
VNDP-900-FA
NSID:
77069
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $57.41
-
$68.89 - $57.41
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

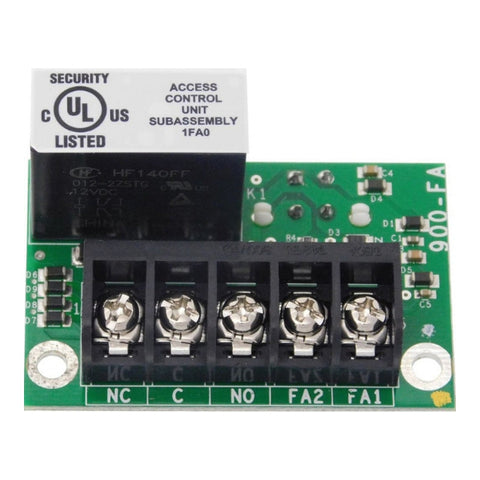

The Von Duprin 900-FA Fire Alarm Input Board is a plug-in relay module designed to interface with fire alarm or other emergency override systems. When activated by a fire alarm signal, it interrupts the power supply's DC output, ensuring connected devices respond appropriately during emergencies.
Features:
- Series: Von Duprin Power Supplies
- Device Supported: Fire Alarm
- Grade: Grade 1
- Product Type: Fire Alarm Input Board
The 900-FA Fire Alarm board can be installed on any one of the following power supply or option boards:
- PS902 Power Supply
- 900 2RS (2 relay)
- 900-2Q (2 Relay w/com)
- 900-4R (4 Relay)
- 900-4RL (4 Relay w/logic)
- 900-8F (8 Zone, Distribution-fuse) 900-8P (8 Zone, Distribution-PTC)
Board Input Power: Board requires 0.05A max. of power supply output current to operate
Output (Supervision): 30VDC, 1A resistive dry contact
