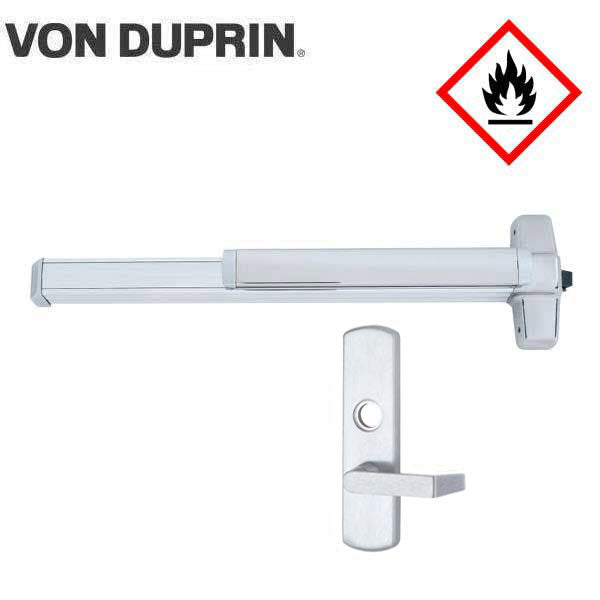

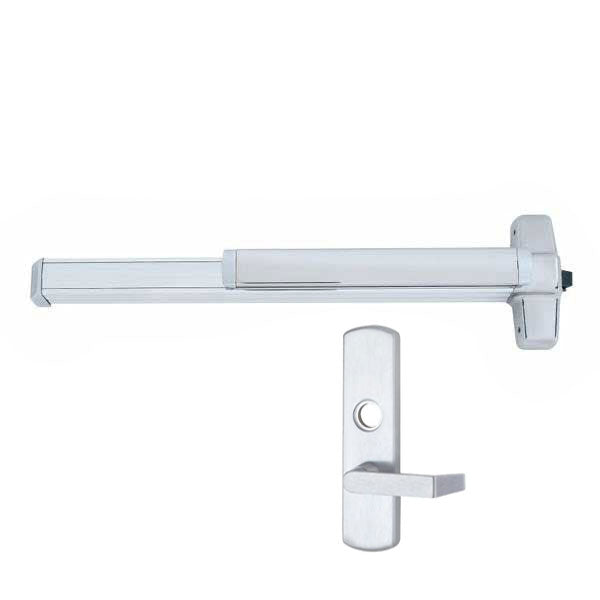

*Discontinued* Von Duprin - 98L - Mortise Lock Exit Device - 06 Lever - Night Latch - 4' Long - RHR - Fire Rated - Satin Chrome - Grade 1
Out of Stock
SKU:
VNDP-98L-NL-F-996L-NL-RV-48-US26D-RHR
NSID:
32811
- $1,609.08
-
$1,930.90 - $1,609.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
98-F rim fire exit devices for all types of single and double doors with mullion, UL listed for fire exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
- Used for Rim and Vertical devices
- $1,609.08
-
$1,930.90 - $1,609.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Function | Night Latch - Key retracts latch bolt |
| Device Length | 4' Length. fits 2'4" to 3' Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Lever | 06 Lever (Standard) |
| Trim | 996L-NL - Night latch - Key retracts latch bolt |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Dogging | Comes standard |
| Handing | RHR |
| Finish | US26D - Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. |
| Strikes | 299 – Dull black |
| Fired Rated | 3 Hours |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1, UL Listed, UL 10C |
