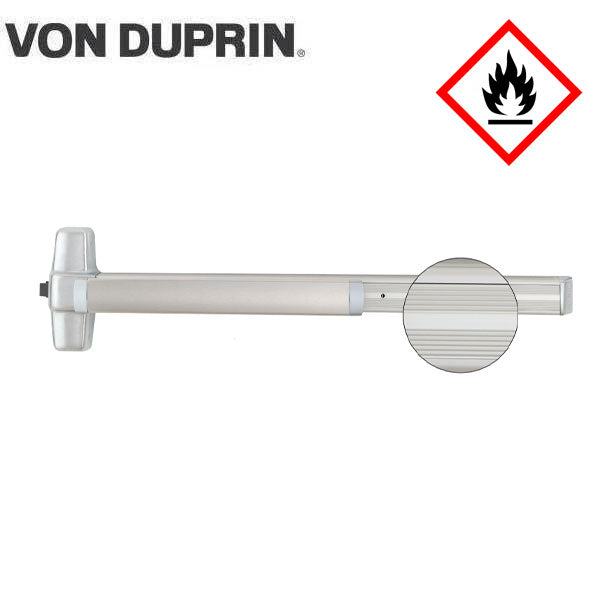

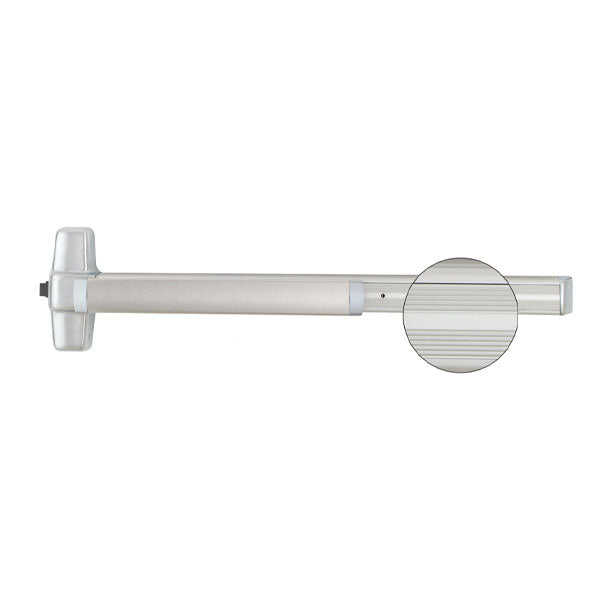

Von Duprin - 99EOF - Rim Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Lengths - Fire Rated
In Stock
SKU:
VNDP-99EO-F-3-26D
NSID:
7337
29889
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $646.24
-
$1,484.21 - $646.24
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
VNDP-99EO-F 3 26D
99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected. This Exit Device is Fire Rated
Specifications
| Trim | No Trim - Exit Only |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device lengths | 3' 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar |
Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Finish | 626 Satin Chrome |
| Dogging feature | Hex key dogging standard |
| Strikes | 299 – Dull black |
| Fire Rated | Yes |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
