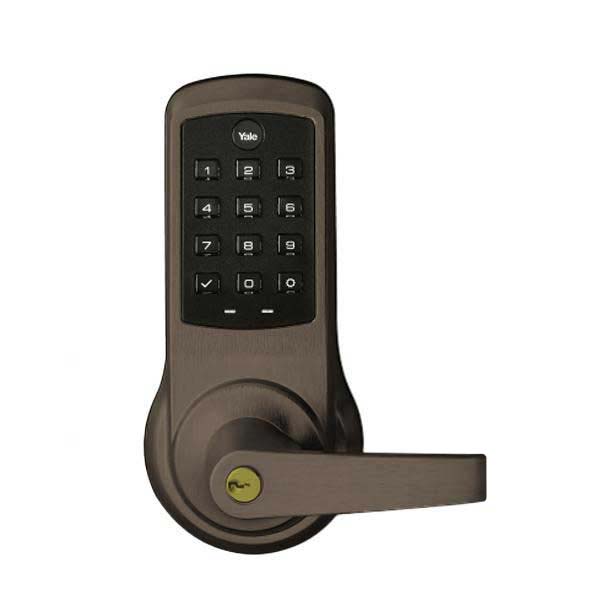

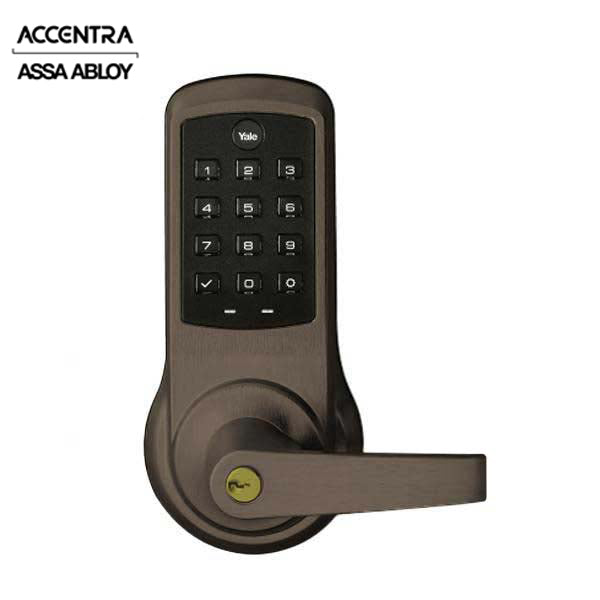

Yale - NTB612 - Electronic Cylindrical Lever Set - w/ Push Button Keypad - Keypad Only No Radio - Schlage C Keyway - Dark Oxidized Bronze Equivalent - w/ Key Override - Grade 1
Available to Order
SKU:
YALE-MO-NTB612-NR-613E-2803-53L
NSID:
36186
- $436.49
-
$441.76 - $436.49
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Yale nexTouch keyless electronic door locks combine a modern look with durability that is perfect for your multi-family or mixed-use property, small business, office, retail space, restroom, or other commercial building application. All nexTouch products are easy to use and install and allow you to manage access with up to 500 unique PIN codes. Yale nexTouch is ANSI/BHMA Grade 1 Certified and weather-resistant for outdoor use.
- Tactile Pushbutton Keypad with Lockout
- 500 Unique Pin Code Access
- Lifetime Audit Trail
- Voice Programming in 3 Languages
- Three Volume Modes
- Privacy Feature
- Weather Resistant Gasket Seal
- Low Battery Indicator
- Hardwired Power and 9V Battery Power Backup
Specifications:
| Lock Function | NTB612 - Deadlocking latchbolt, Pushbutton Keypad with Cylinder Override |
| Handing | Non-Handed, Field Reversible |
| Backset | 2-3/4" (70mm) |
| Throw | 1/2" (13mm) |
| Latch Diameter | 1" (25m) |
| Lever | Monroe Style |
| Finish | Dark Oxidized Bronze Equivalent |
| Tech | Keypad Only, No Radio |
| Door Thickness | Adjustable from 1-3/8" to 1-3/4" |
| Cylinder | Schlage 'C' Keyway 6 Pin |
| Strike | 497 ANSI 1-1/4" Standard |
| ADA | Meets Requirements of the Americans with Disabilities Act |
| Certifications | A156.2, Series 4000 Grade 1 Certified, UL Listed 3 Hours. |
| Warranty | 3 Year Limited Manufacturer's Warranty on mechanical and electrical. One year on the finish. |
