Yanhua - ACDP - Module 35 for Toyota R7F714xx ODO/Buick BCM Mileage Correction + Module 41 Toyota R7F7014xx/S6J3xxODO OBD/CAN Mileage Correction
Out of Stock
SKU:
YH-MODULE-35+41
NSID:
79789
- $300.00
-
$360.00 - $300.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Module 35 for Toyota R7F714xx ODO/Buick BCM Mileage Correction + Module 41 Toyota R7F7014xx/S6J3xxODO OBD/CAN Mileage Correction.
ACDP Module #35 vs Module #41

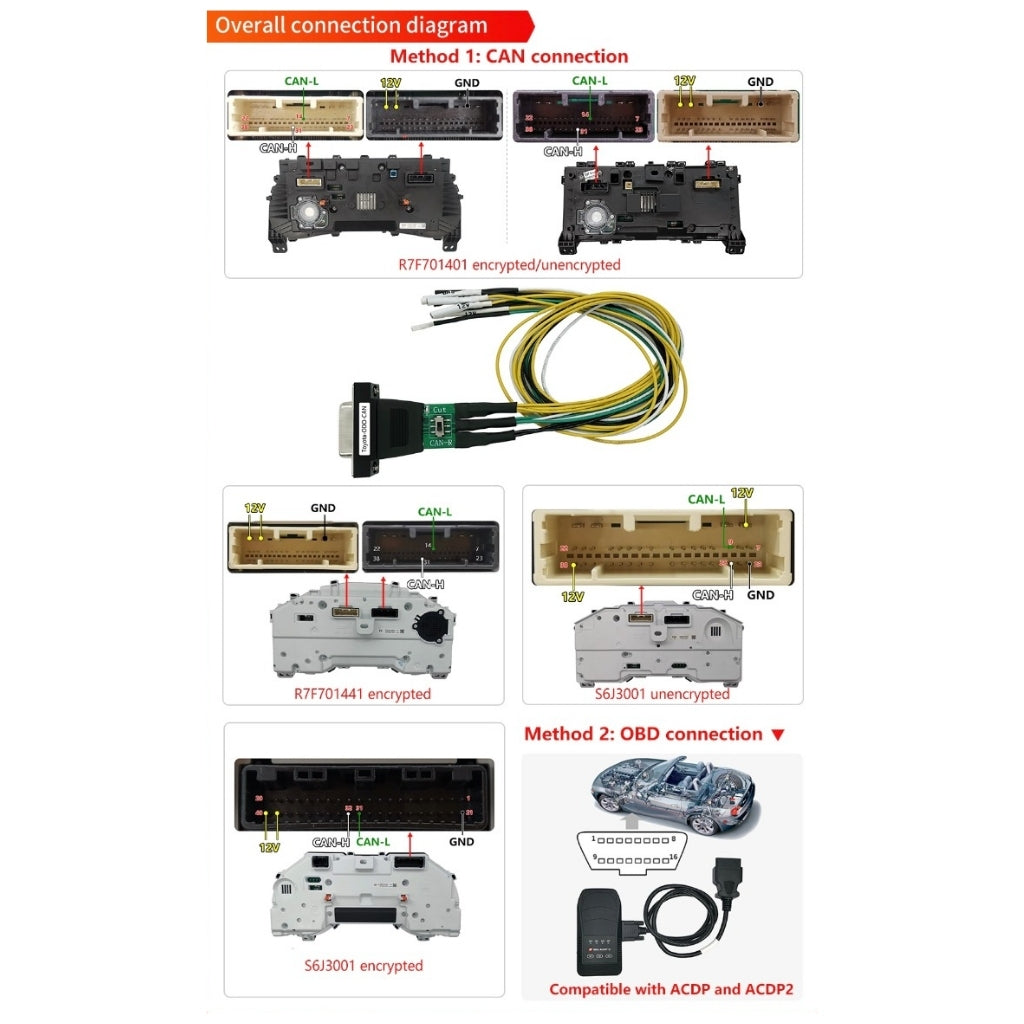

- Module 35 read by interface board through disassembling the cluster, while Module 41 read via OBD or CAN wiring, but this method does not work 100% of the time. If it fails, the instrument disassembly method with Module 35 is required.
- Module 41 way of OBD is compatible with more devices, and the two modules are functionally complementary. If you already own Module 35, you are eligible for a discount when purchasing Module 41. Additionally, a combined discount is available if you buy both modules together.
Module 35
Module functions:
- Support Toyota semi-LCD meter mileage correction with chip model R7F701441.
- Support Toyota full-LCD meter mileage correction with chip model R7F701401.
- Support Buick BCM mileage correction with chip model NEC3558.
- Support mileage correction of R7F701401(unencrypted) chip full LCD instruments such as Toyota Crown Cluger, Highlander, Venza, Avalon, Levin GT.
Supported Car Models:
Support Buick (2017-2022), Toyota (2021-2024) Levin, Corolla, Camry, RAV4, Frontlander, Sienna, Alphard, Vellfire and so on.
Module features:

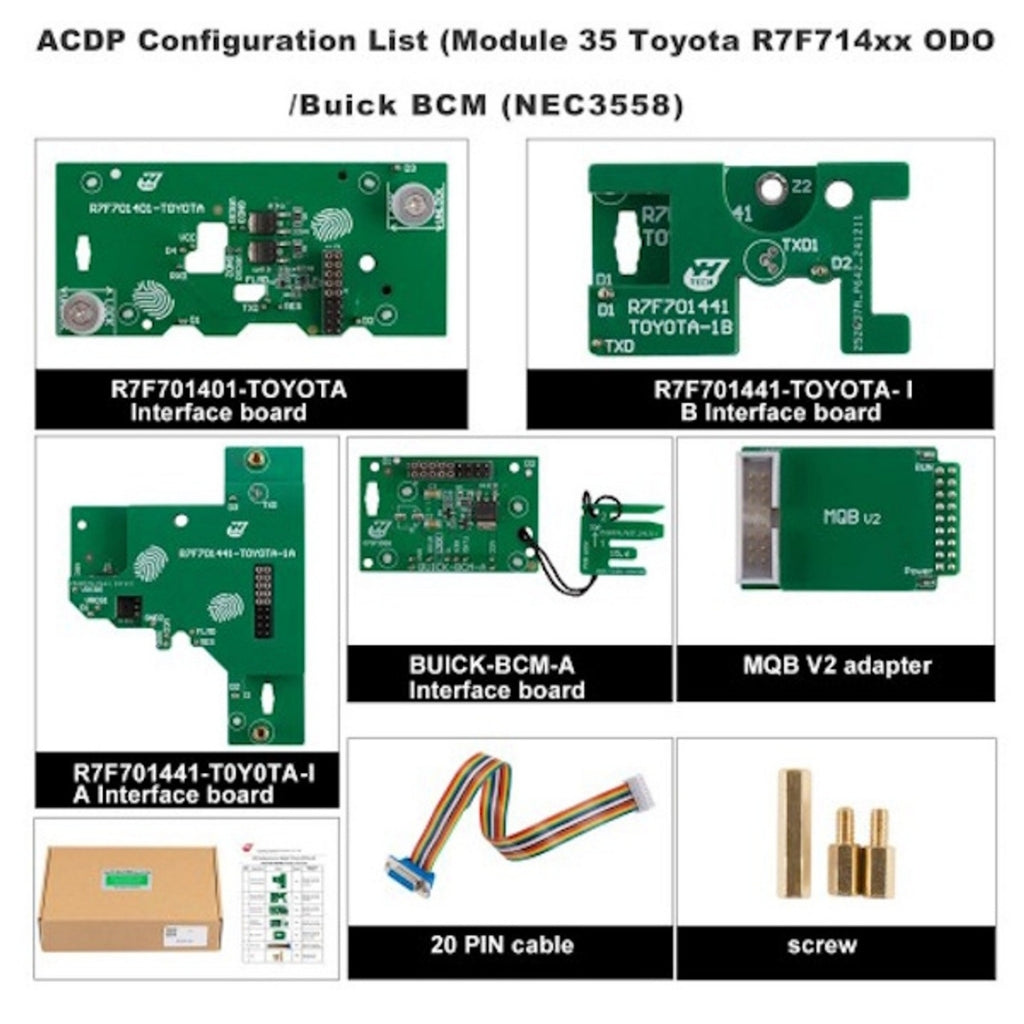

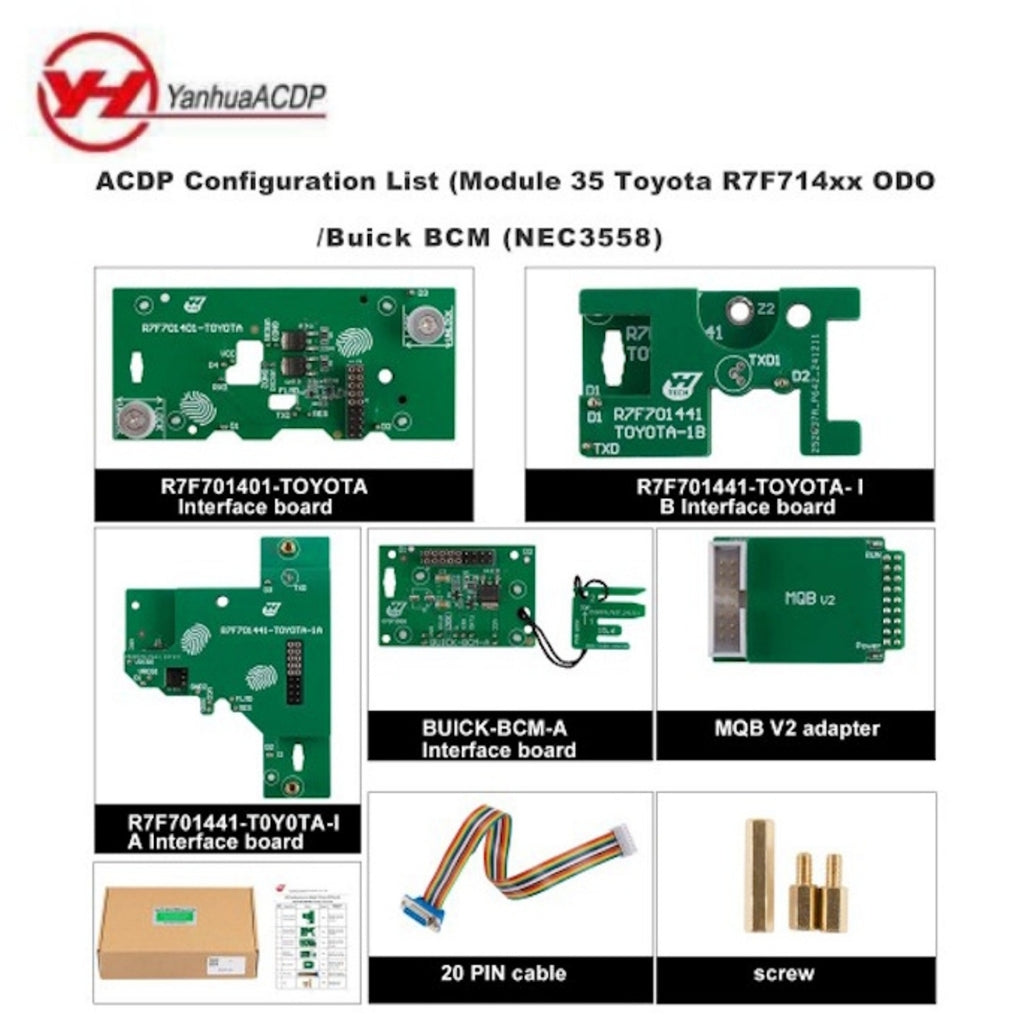

- Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins. No capacitor removal, No soldering required to read and write data without damage.
- The third-generation PCB interface board locking technology independently developed by Yanhua Tech makes the interface board locking more accurate and firm.
- The software comes with pin detection function, making data reading and writing safer and more reliable.
Module 41
Module Functions:

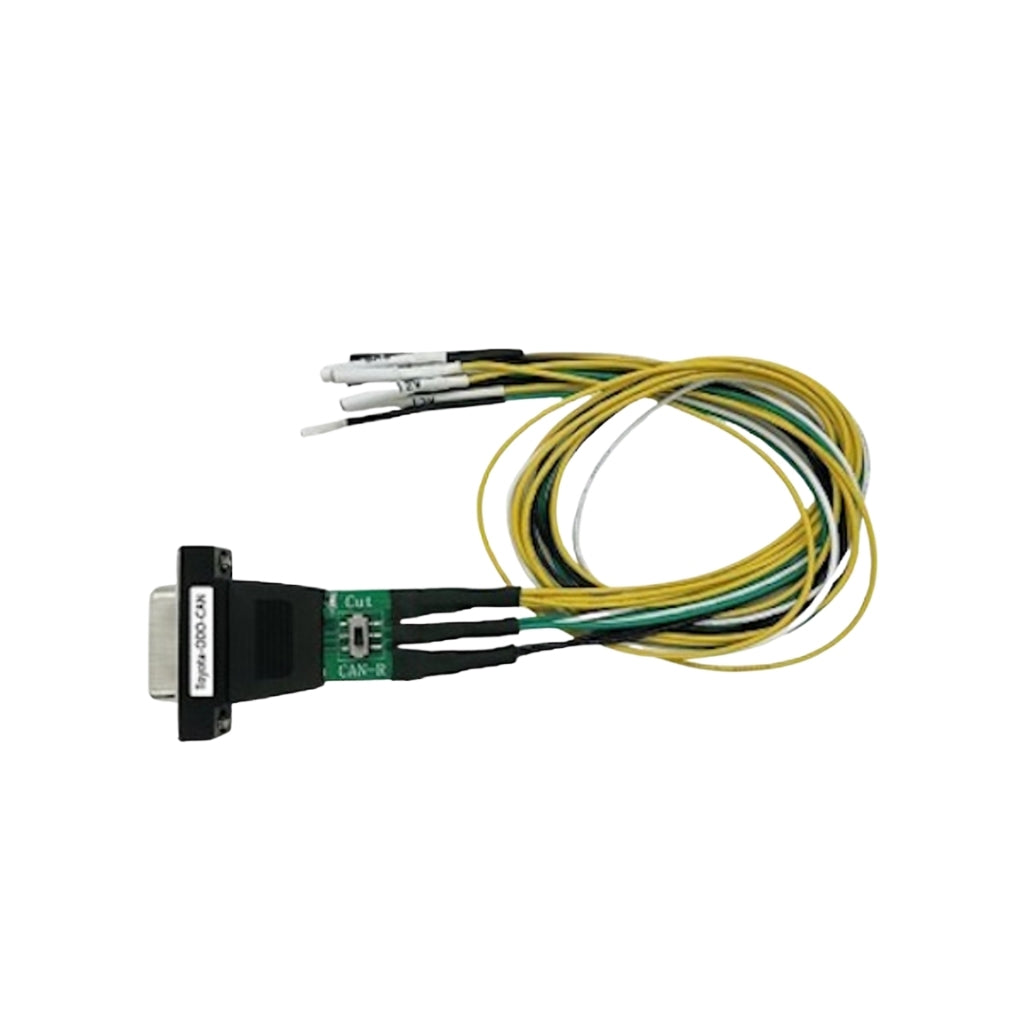

- Support Toyota S6J3001 encrypted/unencrypted chips instrument mileage correction via OBD/CAN mode.
- Supports Toyota R7F701401 encrypted/unencrypted chips instrument mileage correction via OBD/CAN mode.
- Supports Toyota R7F701441 encrypted/unencrypted chips instrument mileage correction via OBD/CAN mode.
- No Soldering, No risk.
Yanhua ACDP Toyota R7F7014xx and S6J3001 Car List
If R7F7014xx cluster cannot be done via OBD/CAN mode, you may need module 35 (need to disassemble cluster to change km).
Toyota
| Year | Car Model | Chip Model |
|---|---|---|
| 2019 | 4RUNNER | S6J3001 |
| 2019 | ALLION | S6J3001 |
| 2023 | ALPHARD | R7F701401 |
| 2018 | AVALON | S6J3001 |
| 2023 | AVANZA VELOZ | S6J3001 |
| 2023 | BZ4X | R7F701401 |
| 2024 | CAMRY | R7F701401 |
| 2018 | CAMRY | S6J3001 |
| 2018 | CH-R | S6J3001 |
| 2023 | COROLLA | R7F701401 |
| 2018 | COROLLA | S6J3001 |
| 2023 | COROLLA CROSS | R7F701401 |
| 2019 | COROLLA CROSS | S6J3001 |
| 2024 | CROWN | R7F701401 |
| 2018 | CROWN KLUGER | S6J3001 |
| 2019 | GRANACE | S6J3001 |
| GRANVIA | S6J3001 | |
| 2020 | HARRIER | R7F701401 |
| 2018 | HARRIER | S6J3001 |
| 2019 | HIACE | S6J3001 |
| 2023 | HIGHLANDER | R7F701401 |
| 2018 | HIGHLANDER | S6J3001 |
| 2024 | KLUGER | R7F701401 |
| 2019 | LEVIN | S6J3001 |
| 2024 | LEVIN | R7F701401 |
| 2019 | LINSHANG | S6J3001 |
| 2023 | RAIZE | S6J3001 |
| 2023 | RAV4 | R7F701401 |
| 2019 | RAV4 | S6J3001 |
| 2019 | SIENNA | S6J3001 |
| 2018 | TACOMA | S6J3001 |
| 2023 | TACOMA IV | R7F701401 |
| 2022 | TUNDRA | R7F701401 |
| 2023 | VELLFIRE III | R7F701401 |
| 2019 | VENZA | S6J3001 |
| 2020 | VIOS | S6J3001 |
| 2020 | WILDLANDER | R7F701401 |
| 2019 | WILDLANDER | S6J3001 |
| 2019 | YARIS CROSS | S6J3001 |
| 2019 | YARIS IV | S6J3001 |
Lexus
| Year | Car Model | Chip Model |
|---|---|---|
| 2019 | ES | S6J3001 |
| 2023 | GX550 | R7F701401 |
| LM350H | R7F701401 | |
| 2019 | LS | S6J3001 |
| 2019 | LS500 | S6J3001 |
| 2022 | LX600 | S6J3001 |
| NX350 | R7F701401 | |
| 2023 | RX350 | R7F701401 |
| 2023 | RX450H | R7F701401 |
| 2023 | RX500H | R7F701401 |
| 2018 | UX | S6J3001 |
