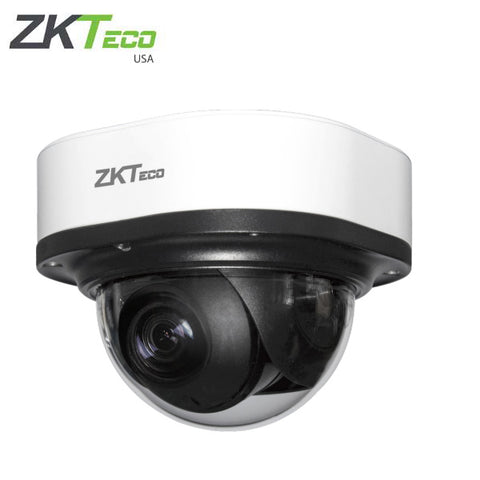

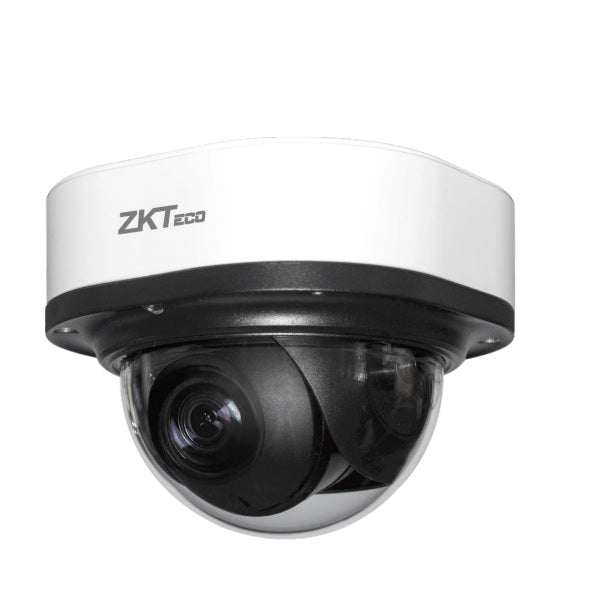

ZKTeco - DL-854N28B-E3 - Dome Camera / BioPro Series / 4MP CMOS Sensor / IP / 3.6mm - 10.8mm Lens / Outdoor / IP67 / 30m IR / Face Recognition
- $181.00
-
$217.20 - $181.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
BioPro Series 4MP IP cameras provide a cost-efficient solution that is powered by cutting-edge technology for crystal-clear video
monitoring.
With an embedded face detection algorithm, the camera supports White/Black-list event alarm deployment under different scenarios.
The BioPro series also offers multiple industry-leading intelligent video analytic functions, such as Face Detection, Line Crossing,
Intrusion, Object Left/Lost, Counting, for smart event alarms.
The P2P cloud function is built-in for every device, which is more convenient and flexible for remote real-time viewing
Features:
- 1/2.8” Sony STARVIS CMOS sensor
- H.265+ dual-stream encoding
- High-quality optical lens: 3.6-10.8mm
- 30m IR effective range
- Built-in PoE
- An embedded face detection algorithm
- Intelligent video analytics available
- Multiple web browsers supported
- Remote viewing with mobile application or VMS
- Lightning protection up to 6kV
- IP67 metal casing
- Support Audio/Alarm/RS485/SD card slot
Specifications:
Parameter | Value |
---|---|
Model | DL-854N28B-E3 |
Image Sensor | 1/2.8" Sony STARVIS CMOS |
Effective Pixels | 2592 * 1520 |
Flash / DDR | 128Mb / 1Gb |
IR LED No. | 4 |
IR Distance | 30m |
S/N Ratio | > 52dB |
Lens | |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 3.6mm - 10.8mm |
Aperture | F1.7 - F3.3 |
FOV | 29.8° - 93.5° |
Optical Zoom | 3X |
Compression | H.265+, H.265, H.264 |
Resolution | 4MP (2592 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
Bitrate Control | CBR / VBR |
Bitrate | 1024Kbps - 4Mbps |
Multi-Streaming | |
Main Stream | 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps |
Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
Third Stream | N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 5 areas |
WDR | TWDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D/3D DNR |
HLC | Support |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | Support |
IVA | |
Intelligent Video | Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering |
Facial Detection | |
Face Templates | N/A |
Face Detected Per Frame | 30 |
Detected Face Size | 80 x 80 - 300 x 300 Pixels |
Face Quality Filtering | Support |
Detection Area | User-defined |
Capture Response | ≤1s |
Network | |
Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP |
Interoperability | ONVIF Profile S, SDK, API |
Max. Online Users | 3 |
Web Browser | IE / Firefox / Chrome / Safari |
Management Software (VMS) | AntarVis 2.0 ZKBioSecurity IVS ZKBio Access IVS |
Operation System | Windows |
Mobile APP | AntarView Pro |
P2P Cloud Service | Support |
Note | Video streaming is not available for Firefox / Chrome / Safari |
Interface | |
Ethernet | 1 RJ-45 port (10/100Mbps) |
Audio I/O | 1/1 |
Alarm I/O | 2/1 |
RS485 | Support |
Reset Button | Support |
Micro-SD Slot | Support (Max 128GB) |
ANR | Support |
USB | N/A |
General | |
Power Supply | PoE (IEEE802.3af), DC 12V±10% |
Power Consumption | < 3W |
Ingress Protection | IP67 |
Dimensions (L*W*H) | Φ102 * 93.3 (mm) |
Working Temperature | -30°C ~ 60°C |
Working Humidity | 10% ~ 90% |
Net Weight | 0.50kg |
Gross Weight | 0.70kg |
Ordering Information | |
Camera | 4MP Camera |
Model | DL-854N28B-E3 |
Description | 4MP Motorized Lens Face Detection Bullet IP Camera |
