ZKTeco - KR500E - Outdoor / Indoor Weigand ID Reader - 26 Bit - 125 KHz Prox Card Reader - Mullion Mount - UHS Hardware
ZKTeco - KR500E - Outdoor / Indoor Weigand ID Reader - 26 Bit - 125 KHz Prox Card Reader - Mullion Mount - UHS Hardware

ZKTeco - KR500E - Outdoor / Indoor Weigand ID Reader - 26 Bit - 125 KHz Prox Card Reader - Mullion Mount

In Stock
SKU: ZKT-KR500E
NSID: 7527

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$49.00
$58.80
$49.00

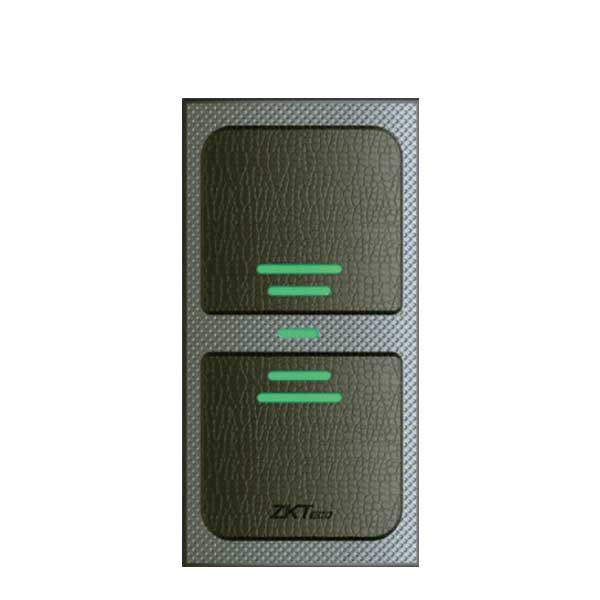

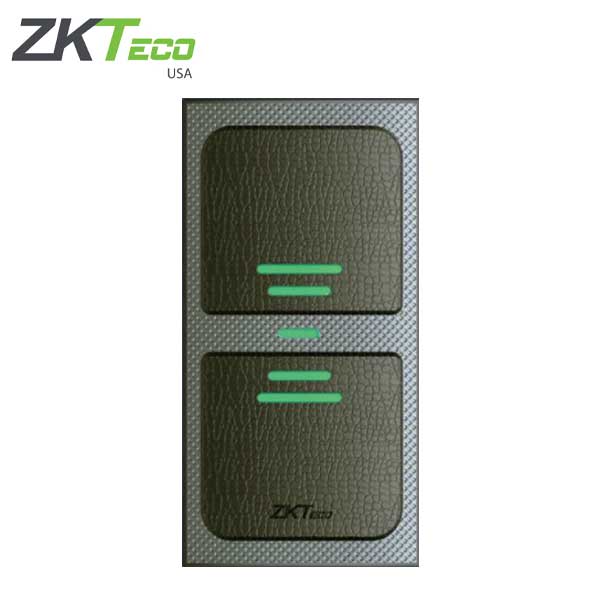

The KR500E External 26 Bit Weigand ID Reader for 125 Khz Prox Cards The KR Series is the main accessory line of external Wiegand readers for all ZKTeco access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10 cm The fact that this series is waterproof, and the operating temperatures can range from -20 degree to +65 degree, it is the ideal solution for outdoor installation. Also they can be connected with our ZKteco controllers.

  • Read range of up to 10cm(~4") for proximity card
  • External LED control
  • External Buzzer Control
  • Indoor/Outdoor operation
  • Solid Epoxy potted
  • Waterproof IP65
  • Reverse Polarity Protection
  • Call 1-800-878-6604 for Dealer Prices!
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Card Support
125 KHz Proximity Card Reader
Read Time <300ms
Read Distance 10 cm ~ 4" Inches
Input Port
2 External LED Control
2 External Buzzer Control
Output Format
26bit Wiegand
LED
2 color LED indicator: red and green
Beeper yes
Power DC 6-14V/70mA(max)
Waterproofing IP65
Operating Humidity
10% to 90% non-condensing
Operating Temp
°C: -10° to +70°C
Mounting For Mullion Mounting
