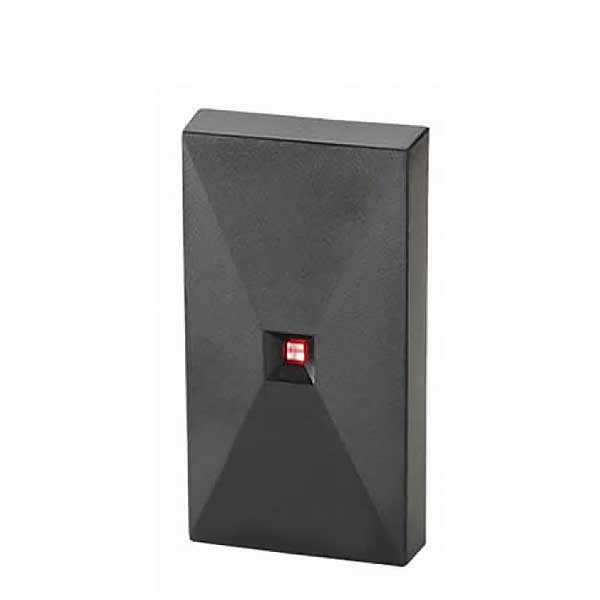

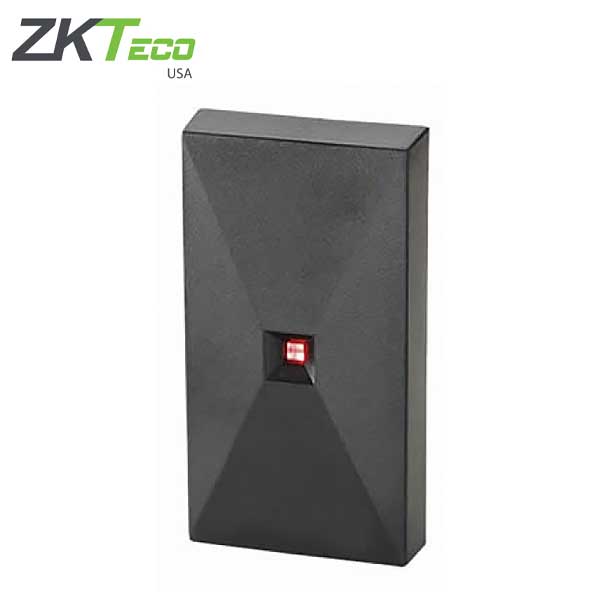

ZKTeco - KR503H - Outdoor / Indoor Weigand HID Reader - 26 Bit - 125 KHz HID Card Reader - Single Gang
In Stock
SKU:
ZKT-KR503H
NSID:
7525
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $145.24
-
$174.29 - $145.24
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The KR503H External 26 Bit Weigand ID Reader for 125 Khz Prox Cards The KR Series is the main accessory line of external Wiegand readers for all ZKTeco access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10 cm The fact that this series is waterproof, and the operating temperatures can range from -20 degree to +65 degree, it is the ideal solution for outdoor installation. Also they can be connected with our ZKTeco controllers.
- Read range of up to ~ 5" for proximity card
- Indoor/Outdoor operation
- Solid Epoxy potted
- Waterproof IP65
- Electronics sealed in weather and tamper-resistant epoxy potting
- Call 1-800-878-6604 for Dealer Prices!
Specifications
| Card Support |
125 KHz HID Card Reader |
| Read Time | <300ms |
| Read Distance | ~ 5" Inches |
| Output Format |
26bit Wiegand |
| LED |
red, green, amber and “off” (represent 4 states) |
| Beeper | yes |
| Power | 5 to 16V DC |
| Current draw | 30 mA typical, 75 mA peak @ 12V DC |
| Waterproofing | IP65 Electronics sealed in weather and tamper-resistant epoxy potting |
| Operating Humidity |
10% to 90% non-condensing |
| Operating Temp |
-35° F to 149° F / -40° C to + 65° C |
| Mounting | Single Gang - ~ 2-3/4" wide |
