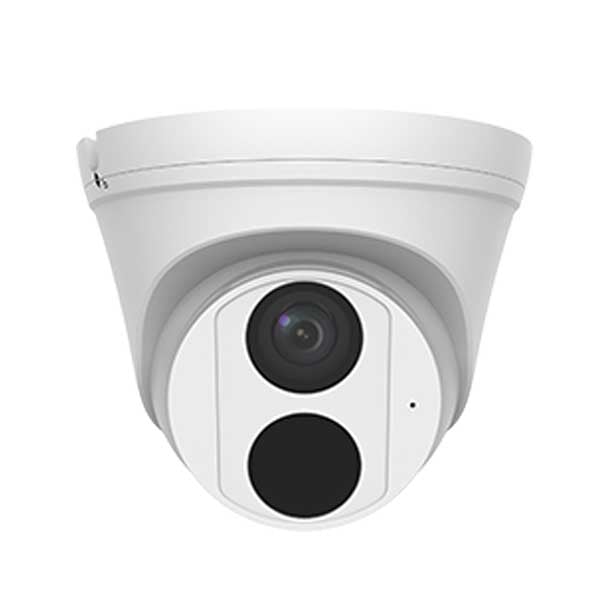

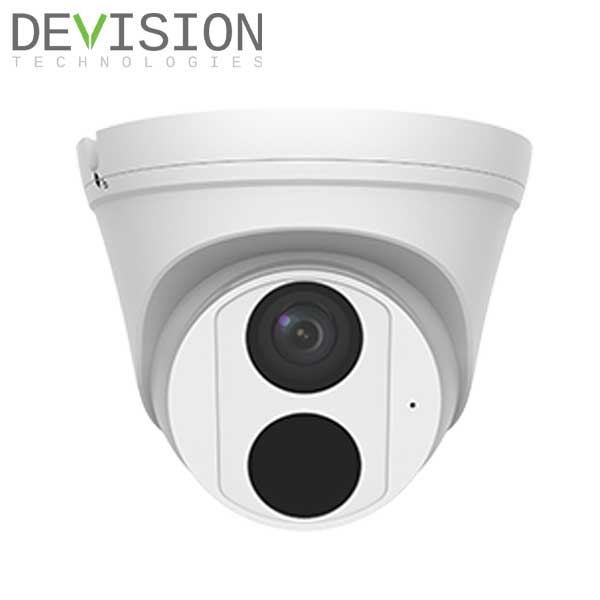

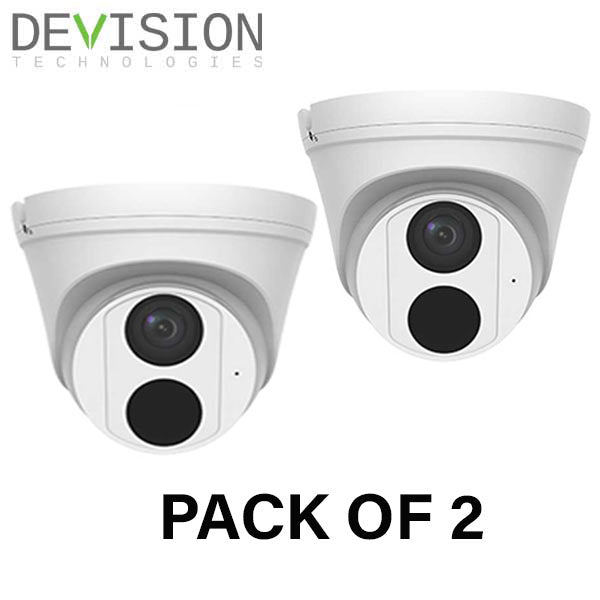

*Discontinued* 2 x Devision / IP / 2MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / IK10 / 30m IR / DV-B228-DWPSI (Bundle of 2)
Out of Stock
SKU:
2xDV-B228-DWPSI
NSID:
29623
- $113.00
-
- $113.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- High-quality image with 2MP, 1/2.7"CMOS sensor
- 2MP (1920x1080) at 30fps; 2MP (1280x720) at 30fps; 2MP (720x576) at 30fps; 2MP (640x360) at 30fps; 2MP (704x288) at 30fps; 2MP (352x288) at 30fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 GB Micro SD card
- IP67 protection
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $113.00
-
- $113.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
| Camera | |
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 |
| DORI Distance | Lens: 2.8mm |
| Angle of View (H) | 112.9° |
| Angle of View (V) | 59.1° |
| Angle of View (O) | 121.2° |
| Adjustment angle | Pan: 3° ~ 360° / Tilt: 0° ~ 68° / Rotate: 3° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.01Lux ( F2.0, AGC ON) 0Lux with IR |
| WDR | 120dB |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52 dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 kbps |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 4 OSDs |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR,NAS(NFS) |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 3W |
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | N / A |
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
