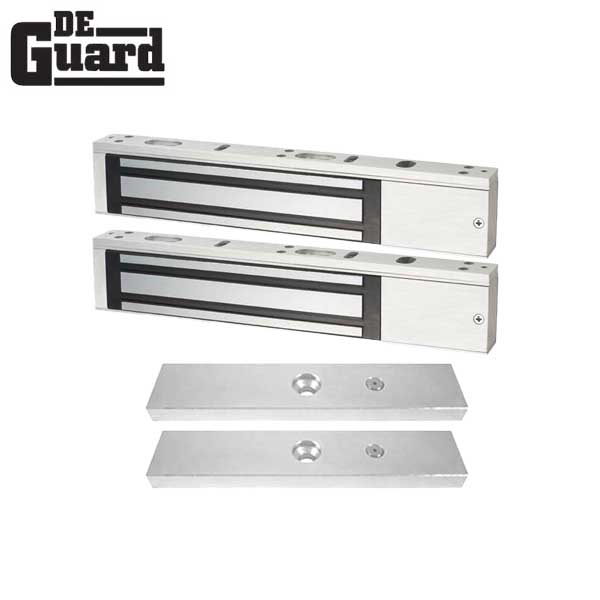

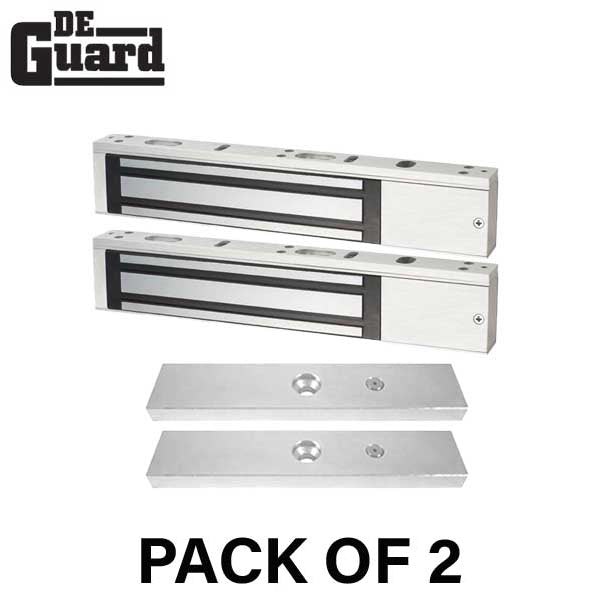

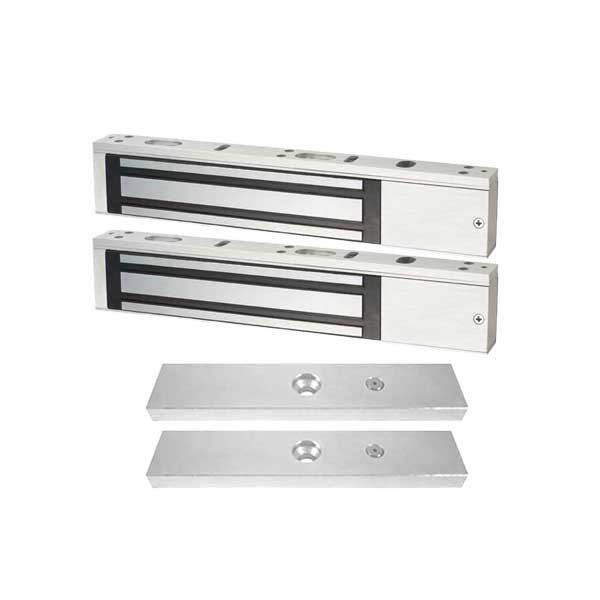

2 x Single Door Maglocks - 600 lb Holding Force - Bond Sensor - Grade 1 (Bundle of 2)
In Stock
SKU:
2xDMGL-600
NSID:
29343
- $122.12
-
$140.72 - $122.12
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
2xDMGL-600
This is a Bundle of 2 Surface Mounted Single Door 600 Lb Electromagnetic Locks used to secure the door in conjunction with push bars, request-to-exit devices, or credential readers. The locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door.
More Information Below
| Applications | Can be used with any access control system |
| Doors | Single Door |
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12 or 24 VDC±10% Selectable |
| Current Draw | 500 mA at 12 VDC, 250 mA at 24 VDC |
| Operating Temperature | 14º ~ 131º F (-10º ~ 55º C) |
| Electromagnet Dimensions | 9-7/8" L x 1-11/16" H x 1" W |
| Armature Dimensions | 7-1/4" L x 1-7/16" H x 5/8" W |
| Safety | Internal Voltage Spike Suppressor |
| Mounting | Adjustable mounting plate for easy proper installation |
| Finish | US32D/630 - Satin Stainless Steel |
| Certifications | Grade 1 |
| Bond Sensor |
Yes bi-color LED signals when lock is magnetically secured |
