Deguard

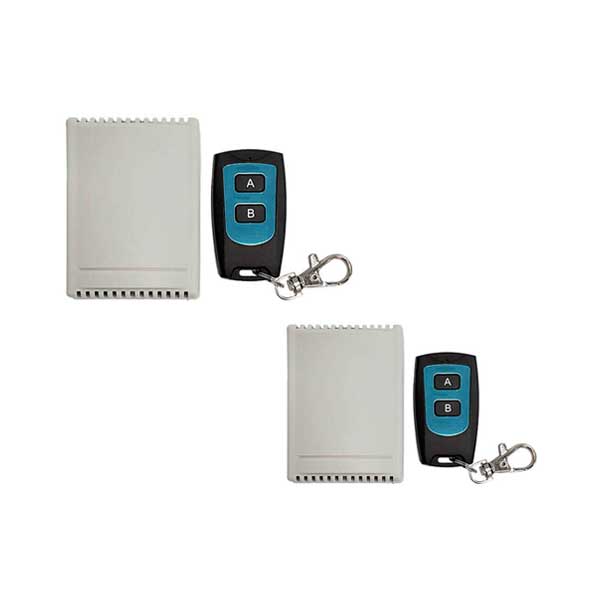

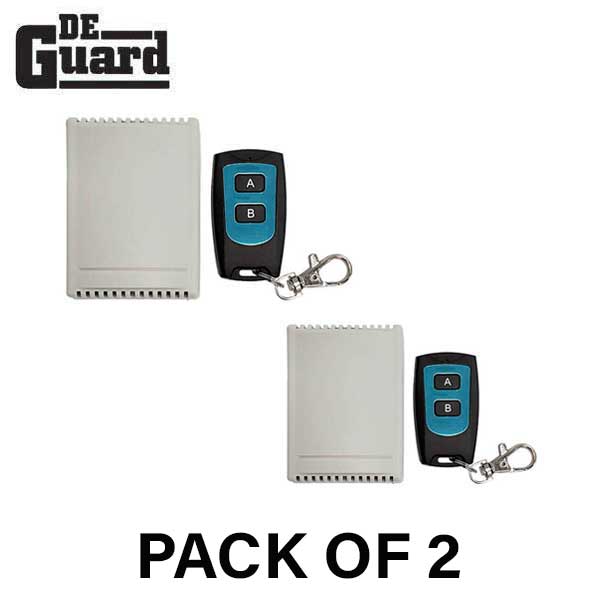

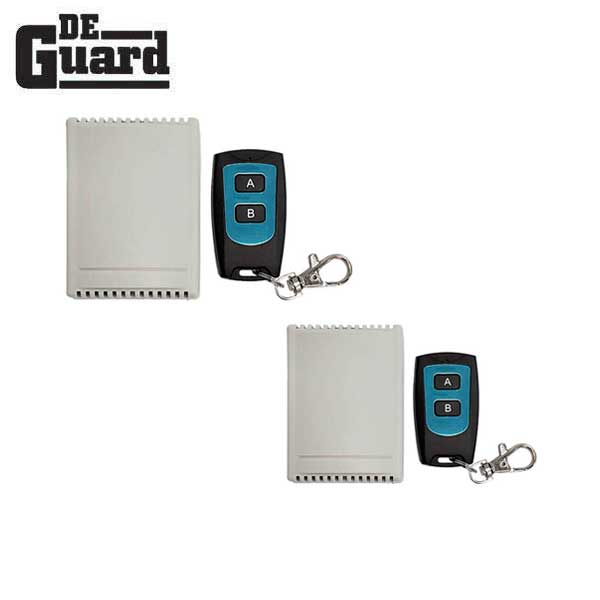

2 x Wireless Remote Control Switch Kit - 2 Door - 2-Channel Receiver & 2-Button Transmitter (434 MHz) (Bundle of 2)

2 x Wireless Remote Control Switch Kit - 2 Door - 2-Channel Receiver & 2-Button Transmitter (434 MHz) (Bundle of 2)

In stock
SKU 2xDAC-2CTR NSID 29337
$47.43$56.22On Sale You save $8.79 (16%)
Get it shipped Today! Order within:

This Bundle Includes: 2x Wireless Remote Control Switch Kit

The 2 Channel Wireless Remote Control Switch Kit is used to add wireless remote control functionality for your access control setup. Attach to a door with an electric strike and control entry and exit with a remote transmitter. Works on 2 channels so it can control up to 2 doors. Perfect for office situations, smart home setups, garage doors, and parking gates.

  • 12V NO/NC/COM
  • 3 Modes: Two-way jog, Two-way self-locking, Two-way interlocking
  • Up to 20 different codes 2262, 2260, 1527 chip equivalent frequency fixed code learning
  • Output Remote Control Distance: 10-30 meters
  • Easy installation
  • Long lifespan

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details


Specifications

Current
A@12V
Output Contact NO/NC/COM
Operating Temperature 14-131F
Operating Humidity 0-95% (non-condensing)

Includes

  • 1 Two-channel receiver
  • 1 Two-channel transmitter

Terminal block function description

1, (+V - positive input of power supply)

2, (GND - power supply negative input)

3, (1 - KC1 relay normally closed end) (2-KC1 relay common end) (3-KC1 relay normally open end)

4, (4-KC3 relay normally closed end) (5-KC3 relay common end) (6-KC3 relay normally open end)

5, (7-KC2 relay normally closed end) (8-KC2 relay common end) (9-KC2 relay normally open end)

6, (10-KC4 relay normally closed end) (11-KC4 relay common end) (12-KC4 relay normally open end)

Instructions
