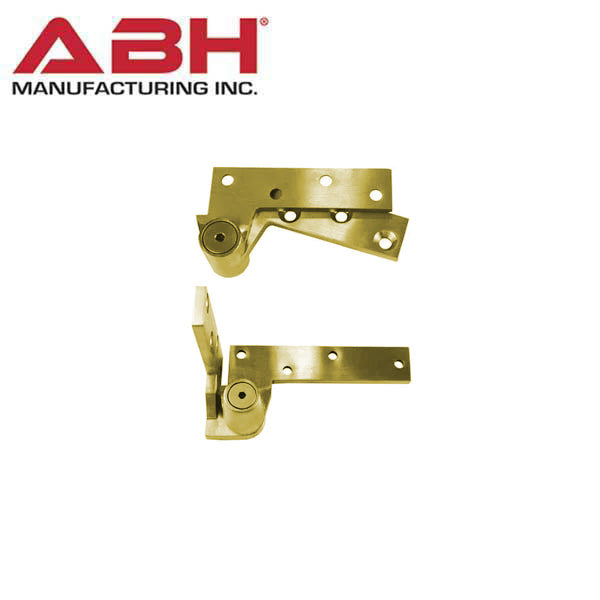

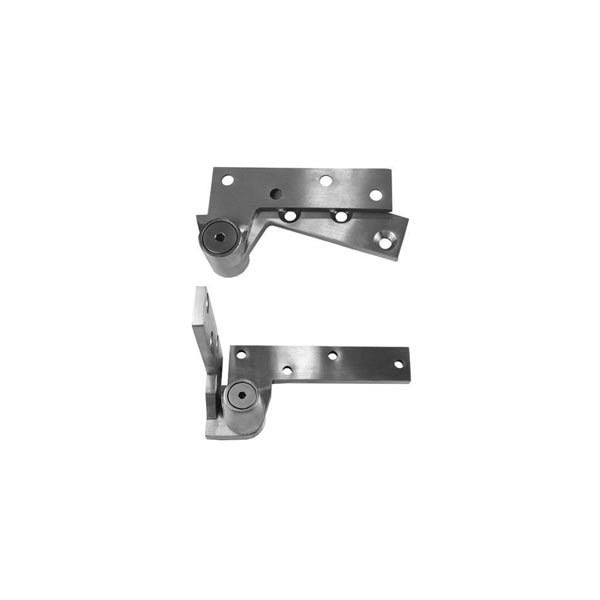

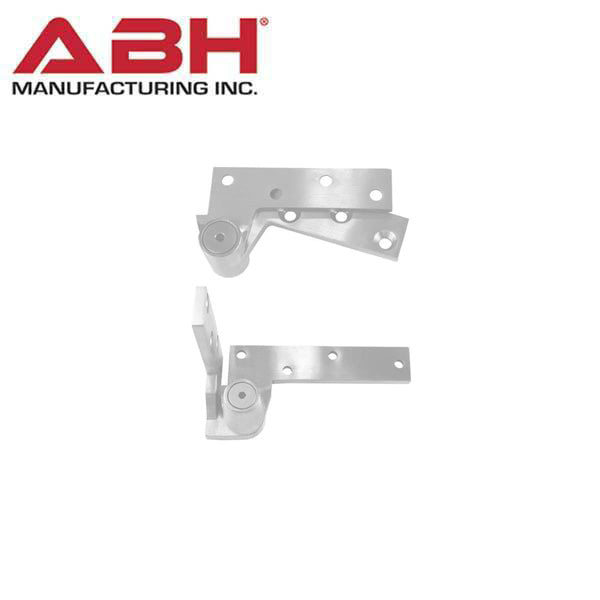

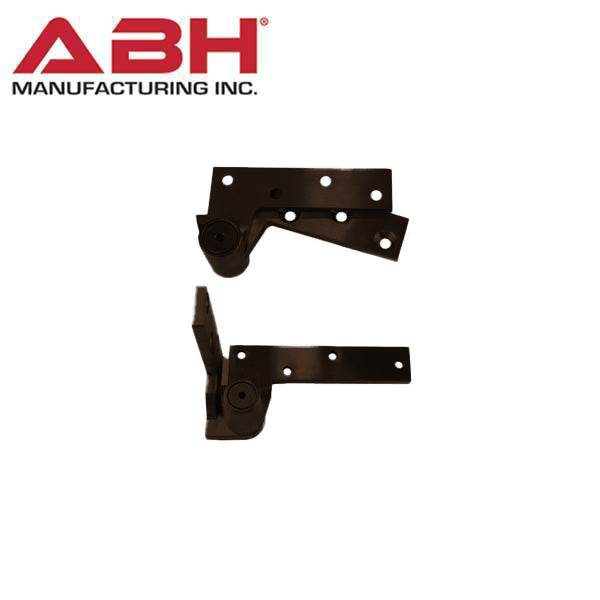

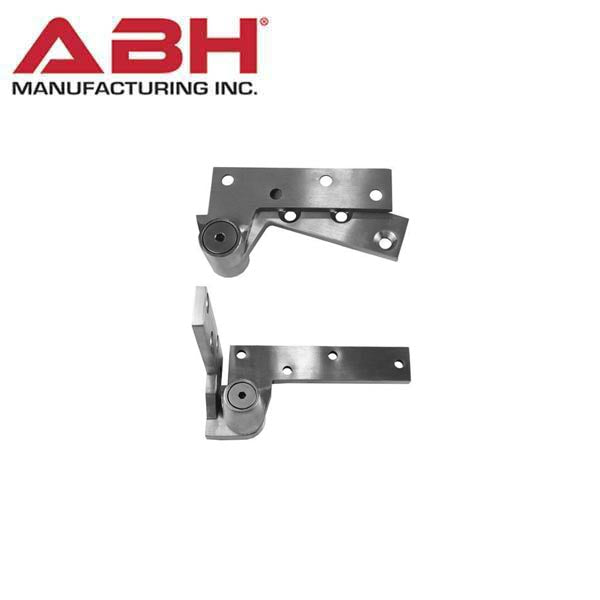

ABH - 0195 Pivot Set - 3/4" Offset - Optional Finish - Optional Handing
Availability:
Available to Order
- Product SKU: ABH-0195-LH-US32D
- NSID:
-
ABH-0195
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Features:- 019 intermediate pivot recommended (order separately)
- Handed - Specify LH or RH
- Maximum door load 450 pounds
- Maxium door width - 48"
- UL listed for use on 3-hour fire rated doors - Standard
- Heavy duty bearings
- Stainless steel base material
- Average weight per unit = 3.5 lbs
- Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
Includes:
- 0180 Top Pivot
- Frame leaf mortises into header
- Door leaf mortises into top of door
- 0195 Bottom Pivot
- Bottom leaf mortises into side jamb and rests on floor
- Door leaf mortises into botton of door
ABH-0195
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Features:
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Features:
- 019 intermediate pivot recommended (order separately)
- Handed - Specify LH or RH
- Maximum door load 450 pounds
- Maxium door width - 48"
- UL listed for use on 3-hour fire rated doors - Standard
- Heavy duty bearings
- Stainless steel base material
- Average weight per unit = 3.5 lbs
- Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
- 0180 Top Pivot
- Frame leaf mortises into header
- Door leaf mortises into top of door
- 0195 Bottom Pivot
- Bottom leaf mortises into side jamb and rests on floor
- Door leaf mortises into botton of door
