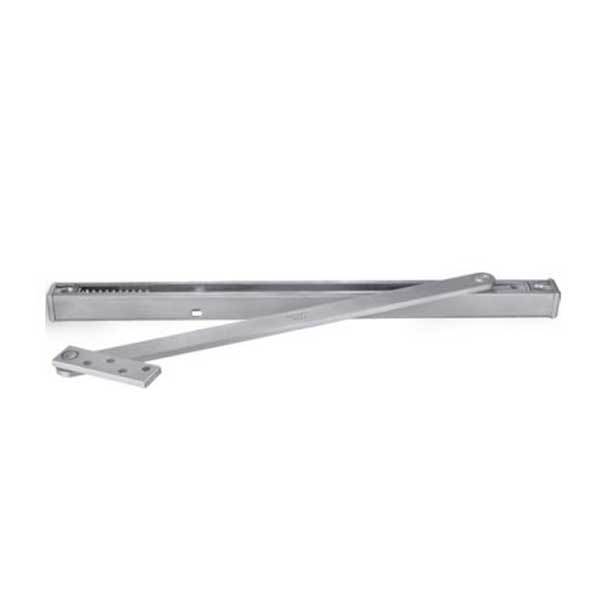

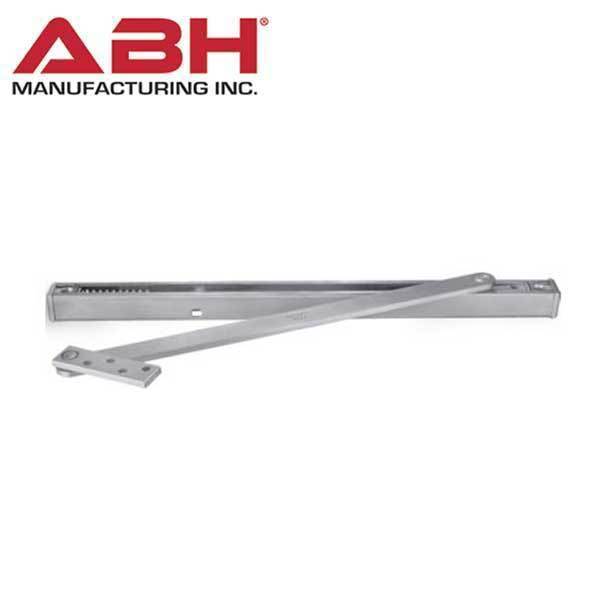

ABH - 1034 - Heavy Duty - Concealed Mount Overhead Door Friction - Satin Stainless Steel - 40"
Available to Order
SKU:
ABH-1034-40-US32D
NSID:
25043
- $121.80
-
$167.95 - $121.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Overhead holders and stops are used to prevent unnecessary damage
to the door, frame, wall and other door hardware by limiting the degree of door swing. They are installed at the top of a door opening; therefore, out of the general reach and not a tripping hazard. Whether for commercial or residential application, the use of overhead holders and stops extends the life of the opening and other hardware.
Friction – Most commonly used on doors without closers. Door will virtually stay held open at the selected degree of opening. Friction tension adjustment screw controls the amount of resistance when opening and closing the door. gree of opening.
Features:
- Concealed mount
- Heavy duty
- Single or double acting doors
- Non-handed
- For interior or exterior use on frequent traffic and heavyweight doors
- Shock absorbing spring provides 3 to 5 degrees cushion before dead-stop
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
Specifications:
| Function: | Door Friction |
| Door Thickness: | 1-3/4" minimum |
| Frame Opening: | 40" - 43 15/16" |
| Center Hung |
43" - 46 15/16" |
| Handing: | Non-handed |
| Spring: | Shock absorbing spring provides 3° to 5° cushion before dead-stop |
| Material: | Stainless Steel |
| Finish: | Satin Stainless Steel |
| Mounting Style: | Concealed |
| Certification: | ANSI Code C01531 |
