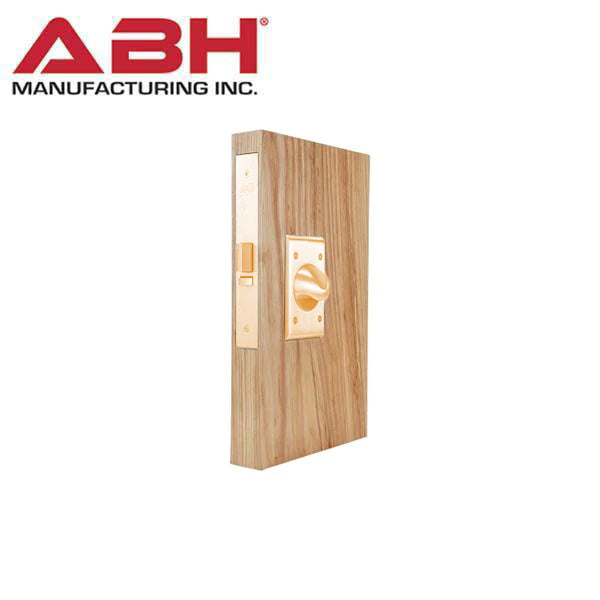

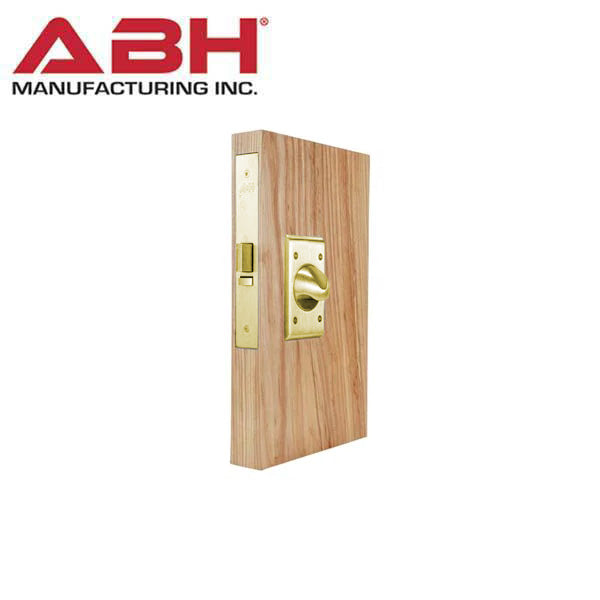

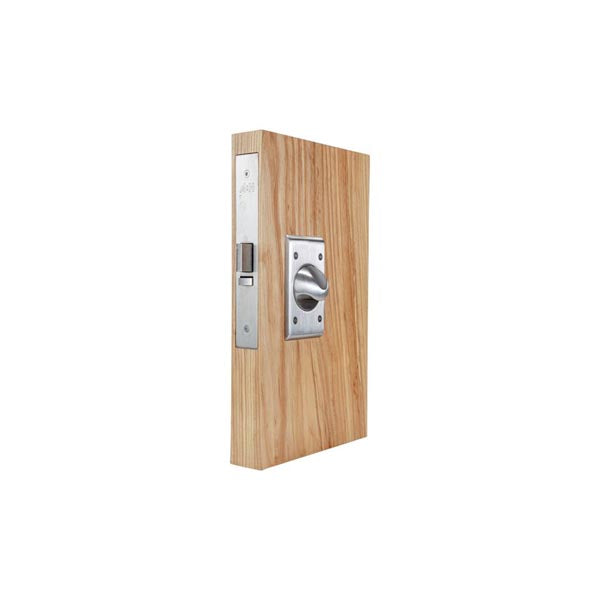

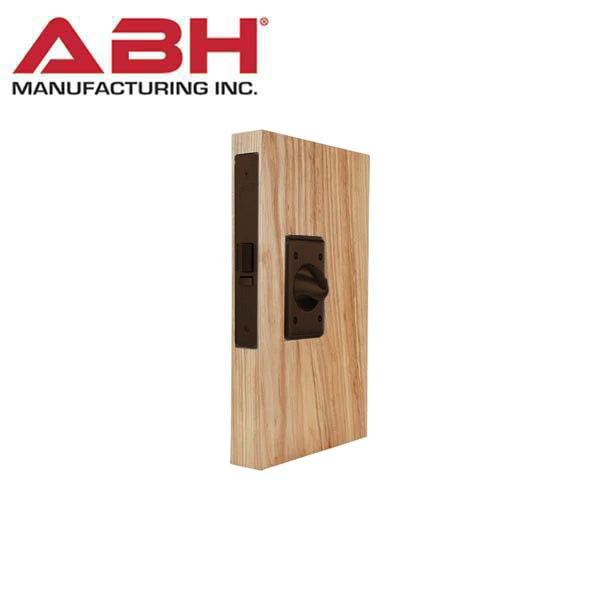

*Discontinued* ABH - 6200, 6600 and 6700 Asylum Trim - Optional Finish
Out of Stock
SKU:
ABH-6200-US32D
NSID:
- $167.48
-
- $167.48
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ABH-6200
Asylum Trim for Hospital Latches
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Asylum Trim for Hospital Latches
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
-
6200 Features:
- Helps support a safer enviorment in hospitals and other institutions where safety is of the highest priority
- Cylindrical latch application - passage function
- 1-3/4" standard door thickness (specify if different)
- "SEC" Security fasteners provided standard
- Trim is mounted using four thru-bolts for maximum stability
- One continuous spring provides a smoother operation and an extended life for the unit
- Non-handed for installation and stocking ease
- Trim can be mounted vertical or horizontal (with handels pointing toward hinge edge of door)
- Handles can be mounted up or down by simply rotating trim 180°
- UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 3 lbs
- Patent# 6,196,599 & Additional Patents Pending
- $167.48
-
- $167.48
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x- Mortise lock body provided - specify function
- Mortise lock body only available in 2-3/4" backset
- 4-7/8" ASA strike supplied standard
- Mortise lock cylinder and cam not provided
- Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
- 6 Pin Cylinder = 1-1/8" long
- 7 Pin Cylinder = 1-1/4" long
- 1-3/4" standard door thickness (specify if greater than 1-3/4")
- Meets ADA requirements
- All mounting hardware goes through mortise lock body prep - no additional prep required
- One continuous spring provides a smoother operation and an extended life for the unit
- Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
- Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
- Handles can be mounted up or down by simply rotating trim 180°
- UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 7 lbs
- Patent# 5,730,478 & #6,196,599
- ABH custom manufactures the hospital push/pull trim to work with other manufacturers' mortise lock bodies
- Great for retrofit applications where the owner wants to keep existing lock bodies and keep keying system in-tact and keep costs low
- Models and manufacturers are as follows:
- 6710 - Trim for Best*, Falcon*, Marks*, Dorma* mortise lock body
- 6720 - Trim for Schlage* mortise lock body
- 6730 - Trim for Yale* mortise lock body
- 6740 - Trim for Corbin Russwin* mortise lock body
- 6750 - Trim for Sargent* mortise lock body
- 6760 - Trim for PDQ* mortise lock body
- 6770 - Trim for Arrow* mortise lock body
- No mortise lock body or strike supplied
- Must complete special order form found online www.abhmfg.com or by sending in a sample mortise lock body being used prior to manufacturing
- 1-3/4" standard door thickness minimum (specify if other than 1-3/4")
- Meets ADA requirements
- All mounting hardware goes thrugh existing mortise loce body prep - no additional prep required
- Once continuous spring provides a smoother operation and an extended life for the unit
- Push/pull trim is non-handed
- Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- For mortise lock functions where thumb turn will be used, eithe rmoun the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
- Handles can be mounted up or down by simply rotatiing trim 180°
- UL listed in the U.S.A. and Canada for use on door fire rated 3 hour or less up to 4'0" x 8'0"
- Average weight per unit = 4.25 lbs
- Patent #5,730,478 & #6,196.599
