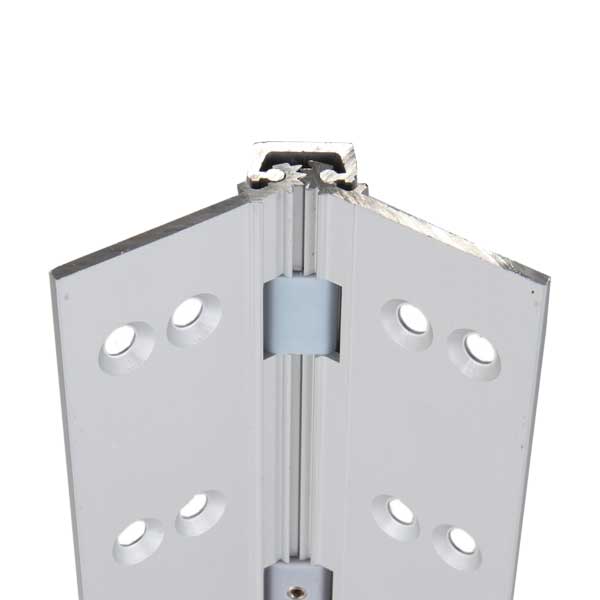

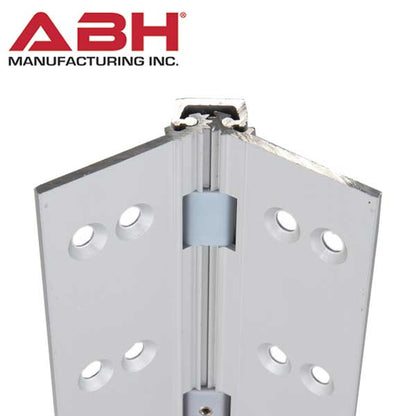

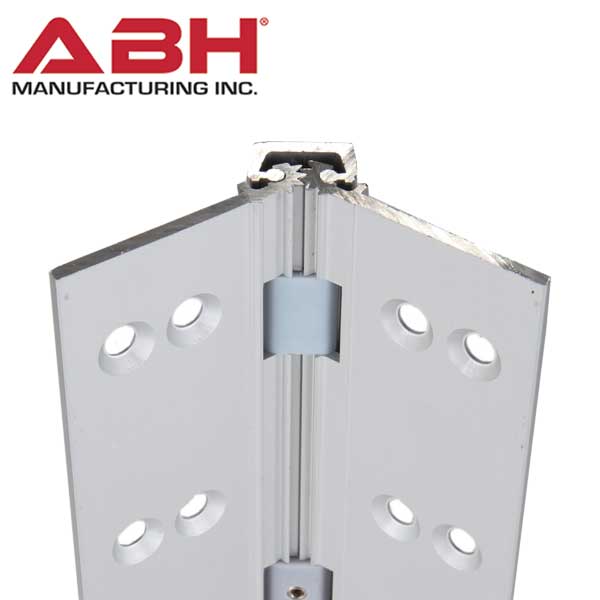

ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1

ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1

$65.63 $78.99
Available: In Stock
Wishlist
  • Product SKU: ABH-A110HDC083-CLEAR
  • ABH-A110HDC083-CLEAR

    Continuous hinges alleviate most common alignment problems such as door binding and sagging by evenly distributing the weight throughout the entire door and frame. Provides extra security by eliminating the gap between the door and the frame; thus, disallowing the ability to pry the opening.

    Features:

    • Fully Concealed
    • Heavy Duty
    • No door inset, flush mount
    • 83" long
    • 48" door width maximum
    • 450lbs max door weight


    $65.63

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Function: Continuous concealed door hinge, full mortise
Handing: Reversible
Door Thickness: 1-3/4"
Door Width Max: 48"
Door Weight Max:  450lbs.
Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
Length: 83"
Finish: Clear Anodized Aluminum
Fire Rating: Approved for use on metal doors up to 90mins.
Approved for wood doors up to 60mins.
Certifications: ANSI / BHMA 156.26 Grade 1
Warranty:  Limited Lifetime Manufacturer's Warranty



Downloads:

ABH-A110HDC083-CLEAR

Continuous hinges alleviate most common alignment problems such as door binding and sagging by evenly distributing the weight throughout the entire door and frame. Provides extra security by eliminating the gap between the door and the frame; thus, disallowing the ability to pry the opening.

Features:

  • Fully Concealed
  • Heavy Duty
  • No door inset, flush mount
  • 83" long
  • 48" door width maximum
  • 450lbs max door weight


Specifications:

Function: Continuous concealed door hinge, full mortise
Handing: Reversible
Door Thickness: 1-3/4"
Door Width Max: 48"
Door Weight Max:  450lbs.
Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
Length: 83"
Finish: Clear Anodized Aluminum
Fire Rating: Approved for use on metal doors up to 90mins.
Approved for wood doors up to 60mins.
Certifications: ANSI / BHMA 156.26 Grade 1
Warranty:  Limited Lifetime Manufacturer's Warranty



Downloads:

Compatible With
