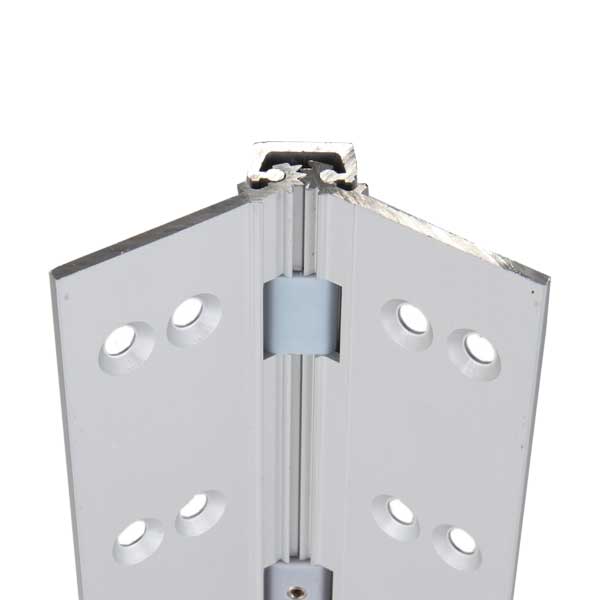

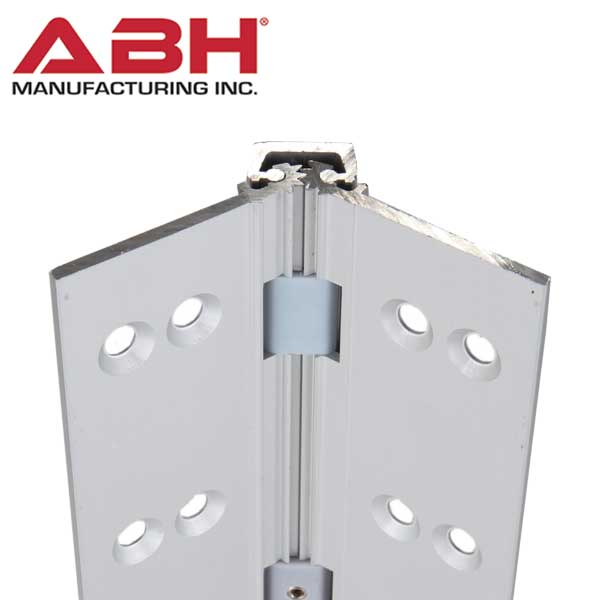

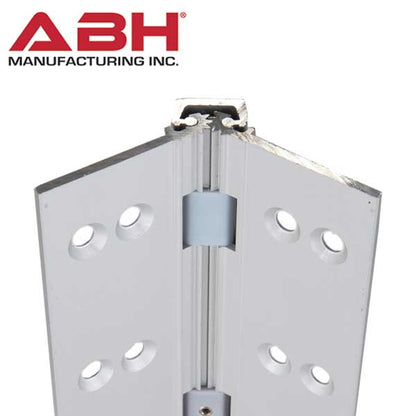

*Discontinued* ABH - A110 - Continuous Hinges - Geared - EPT Prep - Full Mortise - 83" length - LHR - Clear Aluminum - Grade 1

*Discontinued* ABH - A110 - Continuous Hinges - Geared - EPT Prep - Full Mortise - 83" length - LHR - Clear Aluminum - Grade 1

Discontinued
SKU ABH-A110HDC083-LHR-PT-CLEAR NSID 19325
$121.98

Ā

Continuous hinges alleviate most common alignment problems such as door binding and sagging by evenly distributing the weight throughout the entire door and frame. Provides extra security by eliminating the gap between the door and the frame; thus, disallowing the ability to pry the opening. This is prepped with electric power transfer which is used to transfer wires from the door frame to the edge of the door.

Features:

  • Fully Concealed
  • Heavy Duty
  • EPT Prepped
  • No door inset, flush mount
  • 83" long
  • 48" door width maximum
  • 450lbs max door weight
  • NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST

View full details

Details

Specifications:

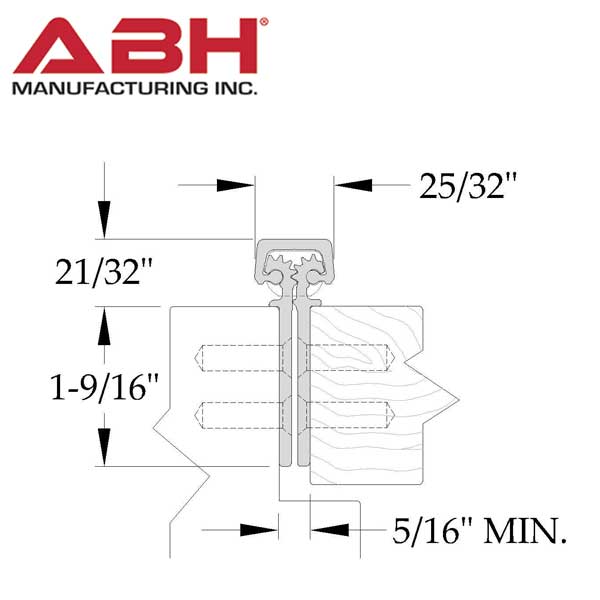

Function: Continuous concealed door hinge, full mortise, EPT Prepped

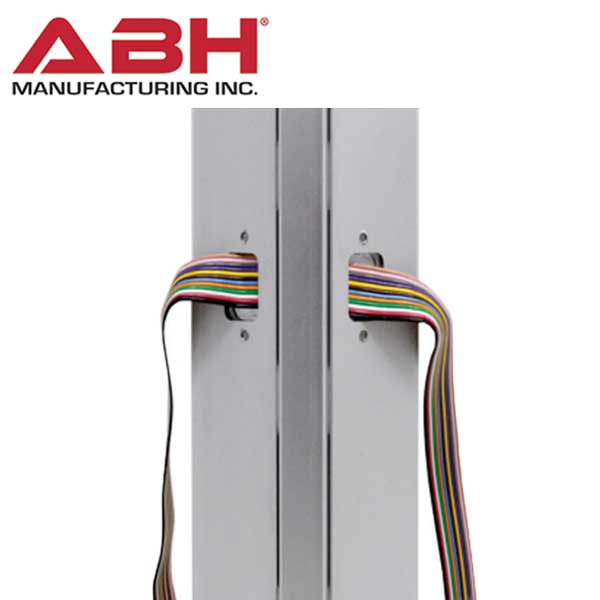

Size of Concealed Electrification Panel: 3/4" wide, 12 Gauge Wire
Electrification Panel Height: 41-1/2" from the top
Handing: Left-Hand Reversible
Door Thickness: 1-3/4"
Door Width Max: 48"
Door Weight Max: 450lbs.
Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
Length: 83"
Finish: Clear Anodized Aluminum
Fire Rating: Approved for use on metal doors up to 90mins.
Approved for wood doors up to 60mins.
Certifications: ANSI / BHMA 156.26 Grade 1
Warranty: Limited Lifetime Manufacturer's Warranty
