ABH - A110LL - Continuous Hinges - Geared - Concealed - Lead-Lined - Full Mortise - Flush Mount - Aluminum - 95" - Grade 1
In Stock
SKU:
ABH-A110LL-C-095
NSID:
29593
29594
29595
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $110.85
-
$149.99 - $110.85
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ABH-A110LL

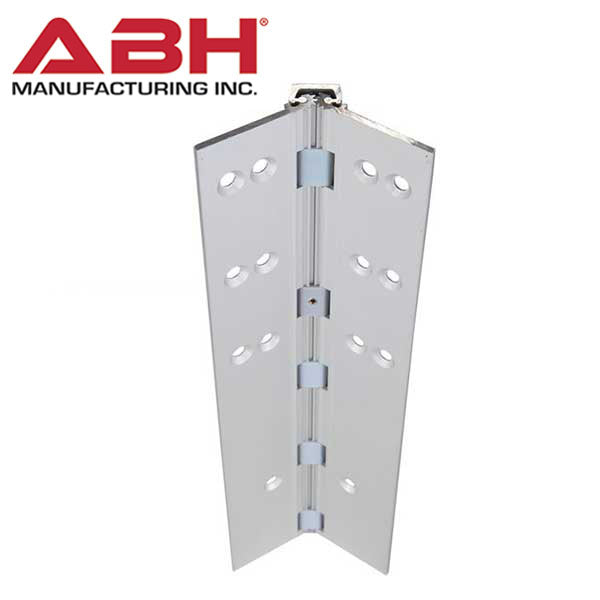

The ABH-A110LL is a fully concealed full mortise aluminum continuous geared hinge with a lead-lined staggered hole pattern for doors up to 1,000 lbs.
Features
- BHMA Grade 1
- Fully concealed
- Lead-Lined for doors up to 1,000 lbs.
- No door inset
- Flush mount
- NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
| Specifications | |
|---|---|
| Door Width Max | 48" |
| Max Door Weight | 1,000 LBS |
| Avg. Weight Per Unit | 11 LBS |
| Mounting | No door inset, flush mount |
| Fasteners | 12-24 x 7/8" undercut self drilling, thread forming tek machine screws |
| Application | For renovation with new doors and/or frames, as well as new construction |
| Standard Lengths | 79", 83", 85", 95" and 120" |

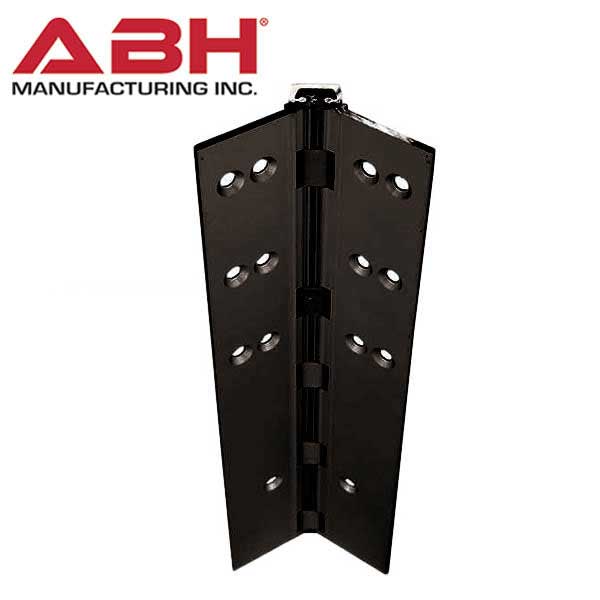

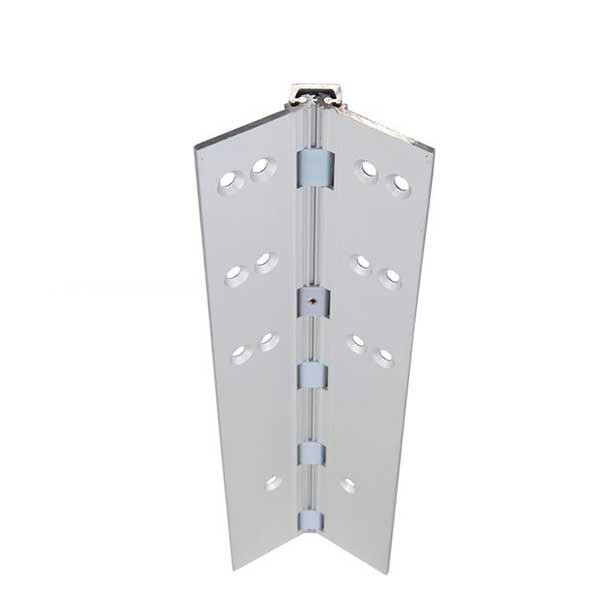

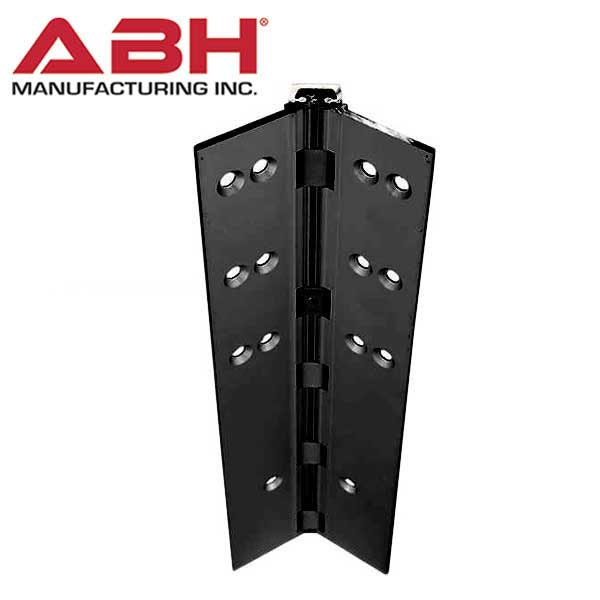

| Finishes | Clear, dark bronze, and black anodized |
| Fire Rating | Approved for use on metal swinging type fire doors rated up to and including 90 minutes. Approved for use on wood swinging type fire doors rated up to and including 60 minutes. |
| Downloads |
|---|
| Data Sheet |
| Template |
| Cross References |
| Installation Instructions |
Note: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST.
