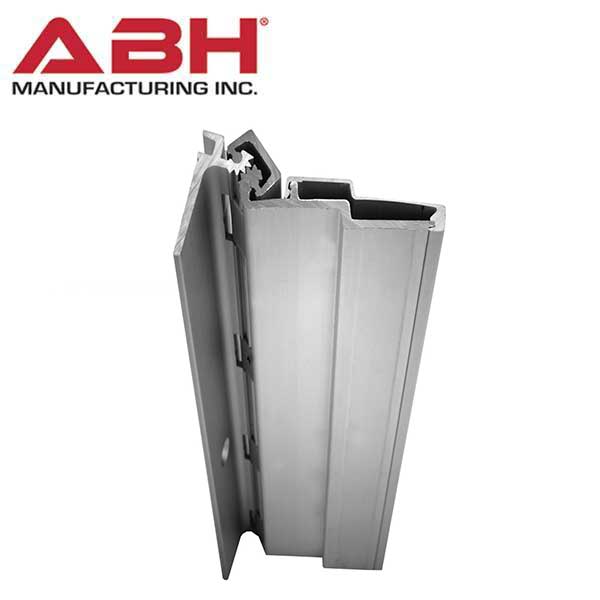

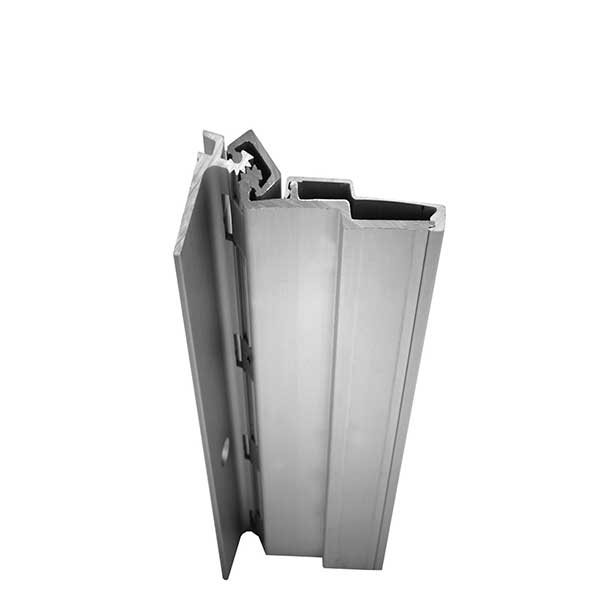

ABH - A210HD - Continuous Geared Hinges - Full Surface - Heavy Duty - Flush Mount - Aluminum - 83"
$89.53
$107.43
Availability:
Available
Wishlist
- Product SKU: ABH-A210HD-C-83-FM
- NSID: 25049
-
ABH-A210HD-C-83-FM
The ABH-A210HD-C-83-FM is a full surface aluminum geared hinge.- BHMA Grade 1
- Full surface
- Swing clear application
- Heavy duty
- No door inset
- Flush mount
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
$89.53
Door Width Max | 48" |
Door Weight Max | 450 LBS |
Avg. Weight Per Unit | 14 LBS |
Fasteners | 12-24 x 3/4" undercut self drilling, thread forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door |
Application | Swing clear |
Downloads:
ABH-A210HD-C-83-FM
The ABH-A210HD-C-83-FM is a full surface aluminum geared hinge.
- BHMA Grade 1
- Full surface
- Swing clear application
- Heavy duty
- No door inset
- Flush mount
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
Door Width Max | 48" |
Door Weight Max | 450 LBS |
Avg. Weight Per Unit | 14 LBS |
Fasteners | 12-24 x 3/4" undercut self drilling, thread forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door |
Application | Swing clear |
