Availability: In Stock
  • Product SKU: ABH-A410HD-D-095
  • NSID:
  • ABH-A410XXXX

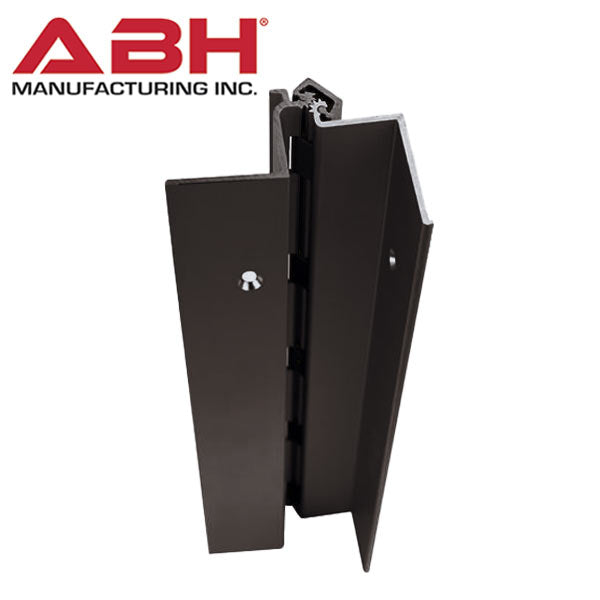

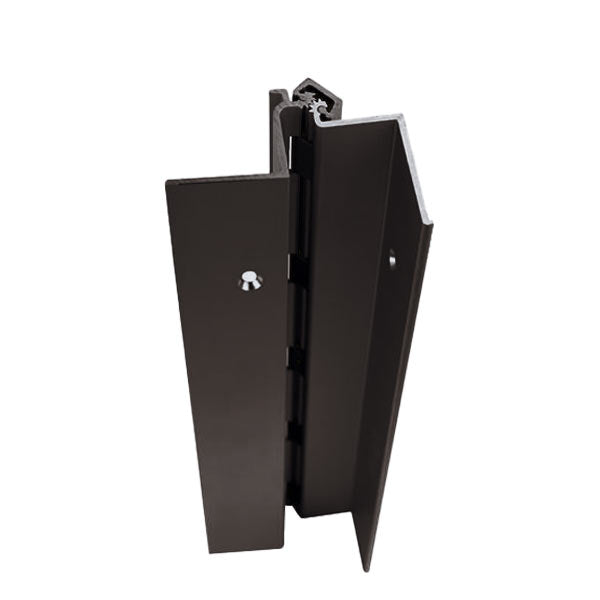

    The ABH-A410 is a fully concealed full mortise aluminum continuous geared hinge with a lead-lined staggered hole pattern for doors up to 1,000 lbs. Heavy duty option available for doors up to 450lbs.

    Features

    • BHMA Grade 1
    • Fully concealed
    • Lead-Lined for doors up to 1,000 lbs.
    • Heavy Duty for doors up to 450 lbs.
    • No door inset
    • Flush mount
    • Swing clear application
    • Door edge protection lip
    • NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST

    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs
Specifications
Door Width Max 48"
Max Door Weight Lead Lined 1,000 LBS
Max Door Weight Heavy Duty 450 LBS
Avg. Weight Per Unit 14 LBS
Mounting No door inset, flush mount
Fasteners 12-24 x 7/8" undercut self drilling, thread forming tek machine screws
Application For use on 1-3/4" thick door, square edged only
Standard Lengths 79", 83", 85", 95" and 120"
Finishes Clear, dark bronze, and black anodized
Fire Rating Approved for use on metal swinging type fire doors rated up to and including 90 minutes.
Approved for use on wood swinging type fire doors rated up to and including 60 minutes.


Downloads
Data Sheet
Template
Cross References
Installation Instructions

ABH-A410XXXX


The ABH-A410 is a fully concealed full mortise aluminum continuous geared hinge with a lead-lined staggered hole pattern for doors up to 1,000 lbs. Heavy duty option available for doors up to 450lbs.

Features

  • BHMA Grade 1
  • Fully concealed
  • Lead-Lined for doors up to 1,000 lbs.
  • Heavy Duty for doors up to 450 lbs.
  • No door inset
  • Flush mount
  • Swing clear application
  • Door edge protection lip
  • NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
Specifications
Door Width Max 48"
Max Door Weight Lead Lined 1,000 LBS
Max Door Weight Heavy Duty 450 LBS
Avg. Weight Per Unit 14 LBS
Mounting No door inset, flush mount
Fasteners 12-24 x 7/8" undercut self drilling, thread forming tek machine screws
Application For use on 1-3/4" thick door, square edged only
Standard Lengths 79", 83", 85", 95" and 120"
Finishes Clear, dark bronze, and black anodized
Fire Rating Approved for use on metal swinging type fire doors rated up to and including 90 minutes.
Approved for use on wood swinging type fire doors rated up to and including 60 minutes.


Downloads
Data Sheet
Template
Cross References
Installation Instructions
