*Discontinued* ABH - A502 - Continuous Hinges - Pin and Barrel - Full Surface - Heavy Duty - Flush Mount - Stainless Steel - 95"

*Discontinued* ABH - A502 - Continuous Hinges - Pin and Barrel - Full Surface - Heavy Duty - Flush Mount - Stainless Steel - 95"

Discontinued
SKU ABH-A502-95-US32D NSID 24569
$287.64$345.17On Sale You save $57.53 (17%)

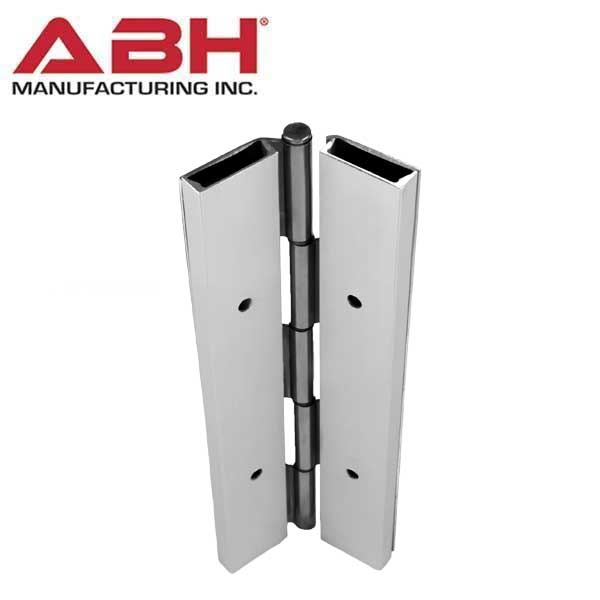

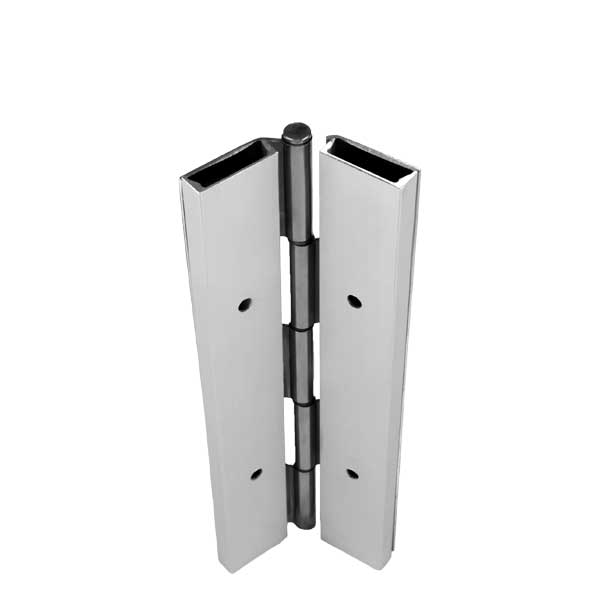

The ABH-A502-95-US32D is a fully concealed aluminum geared hinge.

  • BHMA Grade 1
  • Full surface
  • No door inset
  • Heavy duty
  • Flush mount
  • 48" door width maximum
  • NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST

View full details

Details



Door Width Max 48"
Door Weight Max 600 LBS
Avg. Weight Per Unit 11 LBS
Fasteners

1/4-20 x 3/4" round head self-drilling tek machine screws, zinc plated for door
Fire Rating Tested and certified by UL
20 minutes - wood doors
90 minutes hollow metal and composite wood fire doors
3 hours - hollow metal doors
