ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel
ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel
ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel
ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel
ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel

ABH - Electrical Power Transfer Unit - Concealed - Fits 5/16 Wire - 10" - Satin Stainless Steel

$51.45 $61.49
Available: In Stock
Wishlist
  • Product SKU: ABH-PTR105
  • ABH-PTR105

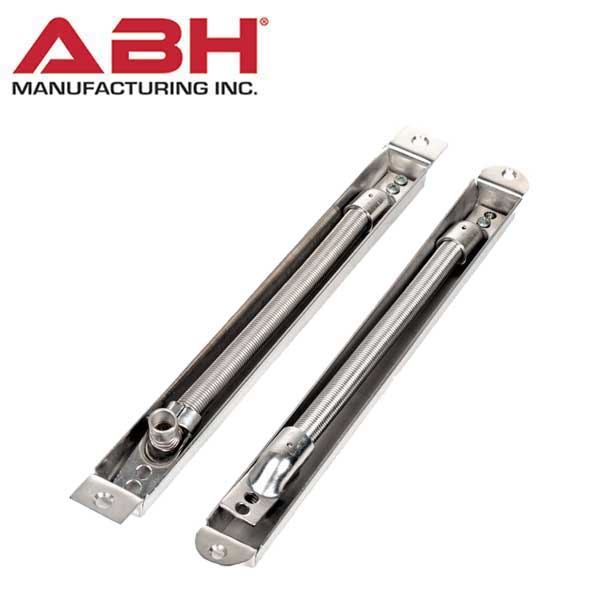

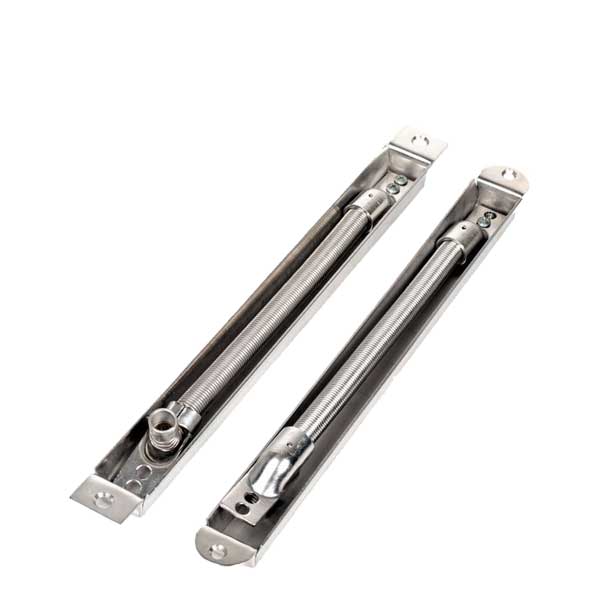

    The PTR105 provides housing for running wires from the frame to the door in a secure and discreet manner. Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.

    Features:

    • Stainless steel housing and spring conduit
    • Spring conduit fits wire bundles up to 5/16" thick (not included)
    • Works with most butt hinges, continuous hinges and ¾” offset pivots
    • 105° maximum door swing, round mounting tabs
    • Matches most door and frame preps


    $51.45

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Construction: Steel Construction
Function: Mortise Power Transfer
Door Thickness: 1-3/4" - 2"
Max Wire Thickness: 5/16"
Frame Cut Out:  Rectangular 11/16" deep (min.) For wood frame
Spring Conduit Length: 10"
Power Rating: 30 VAC, 42.5 VDC, 10 Watts max
Applications that allow 105° swing: Most butt hinges, continuous hinges, and ¾” offset pivots
Finish:  Satin Stainless Steel
Fire Rating: UL/ULC Listed for use on fire doors


Downloads:

ABH-PTR105

The PTR105 provides housing for running wires from the frame to the door in a secure and discreet manner. Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.

Features:

  • Stainless steel housing and spring conduit
  • Spring conduit fits wire bundles up to 5/16" thick (not included)
  • Works with most butt hinges, continuous hinges and ¾” offset pivots
  • 105° maximum door swing, round mounting tabs
  • Matches most door and frame preps


Specifications:

Construction: Steel Construction
Function: Mortise Power Transfer
Door Thickness: 1-3/4" - 2"
Max Wire Thickness: 5/16"
Frame Cut Out:  Rectangular 11/16" deep (min.) For wood frame
Spring Conduit Length: 10"
Power Rating: 30 VAC, 42.5 VDC, 10 Watts max
Applications that allow 105° swing: Most butt hinges, continuous hinges, and ¾” offset pivots
Finish:  Satin Stainless Steel
Fire Rating: UL/ULC Listed for use on fire doors


Downloads:

Compatible With
