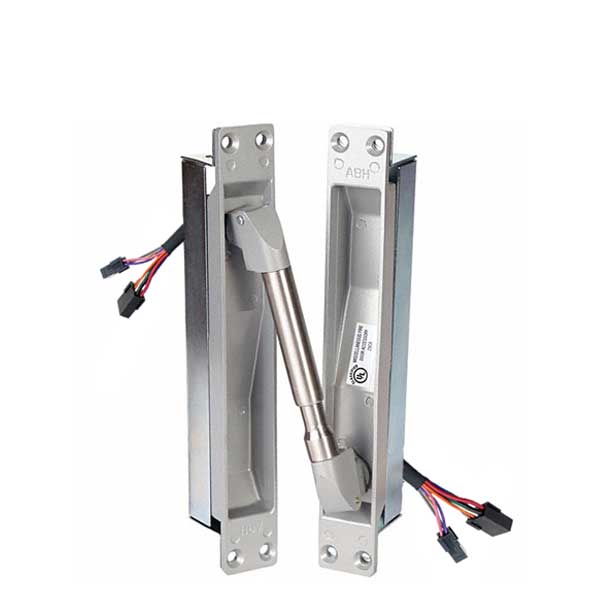

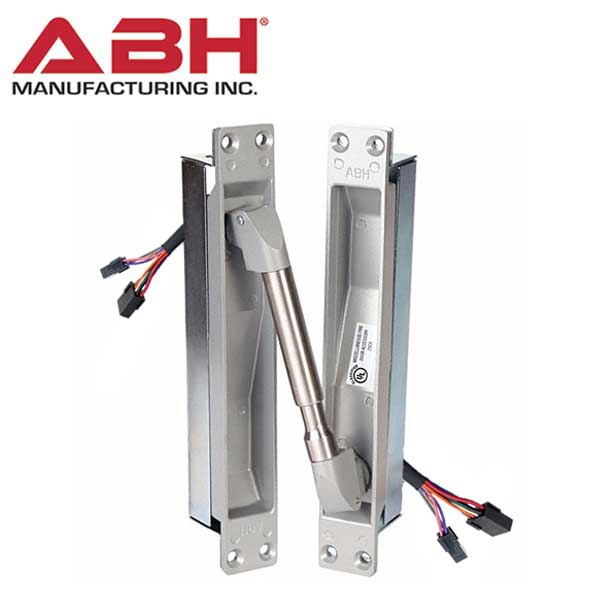

ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga - 6" - Satin Aluminum
ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga  - 6" - Satin Aluminum
ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga  - 6" - Satin Aluminum
ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga  - 6" - Satin Aluminum
ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga  - 6" - Satin Aluminum

ABH - Electrical Power Transfer Unit - Concealed - Wire Connectors - 24ga - 6" - Satin Aluminum

$231.00 $277.00
Available: In Stock
Wishlist
  • Product SKU: ABH-PT1000EZ- EZAL-6-US28
  • ABH-PT1000EZ- EZAL-6-US28

    The PT1000EZ provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner. Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position. Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors.

    Features:

    • All metal construction
    • Ideal for high abuse or heavy traffic situations
    • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
    • Comes with (12) 24ga AWG Wires
    • Wires come with EZ wire connectors.
    • Matches most door and frame preps


    $231.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Construction: Steel Construction
Function: Mortise Power Transfer
Door Thickness: 1-3/4" - 2"
Wire Gauge: 24ga AWG
Wire Connectors: Allegion Connectors Both Ends
Wire Length: 6"
Power Rating: 24VDC, 1A
Applications that allow 180° swing: Cam lift hinges (up to 1/2" lift)
Butt hinges up to 5"
Up to 3/4" offset pivots
Other Applications: 5-1/2" butt hinges 130° swing
6" butt hinges 110° swing
Finish:  Satin Aluminum
Fire Rating: UL/ULC Listed for use on fire doors


Downloads:

ABH-PT1000EZ- EZAL-6-US28

The PT1000EZ provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner. Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position. Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors.

Features:

  • All metal construction
  • Ideal for high abuse or heavy traffic situations
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • Comes with (12) 24ga AWG Wires
  • Wires come with EZ wire connectors.
  • Matches most door and frame preps


Specifications:

Construction: Steel Construction
Function: Mortise Power Transfer
Door Thickness: 1-3/4" - 2"
Wire Gauge: 24ga AWG
Wire Connectors: Allegion Connectors Both Ends
Wire Length: 6"
Power Rating: 24VDC, 1A
Applications that allow 180° swing: Cam lift hinges (up to 1/2" lift)
Butt hinges up to 5"
Up to 3/4" offset pivots
Other Applications: 5-1/2" butt hinges 130° swing
6" butt hinges 110° swing
Finish:  Satin Aluminum
Fire Rating: UL/ULC Listed for use on fire doors


Downloads:

Compatible With
