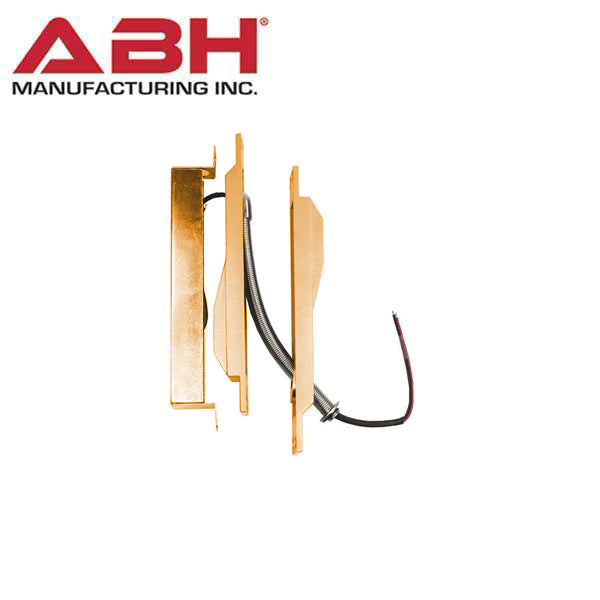

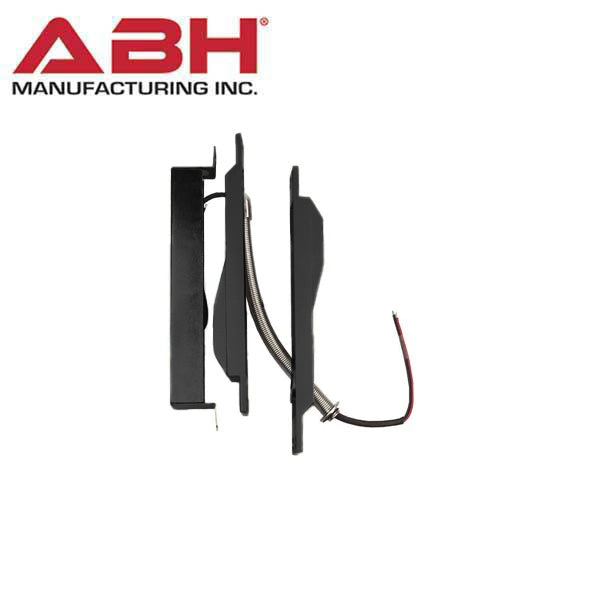

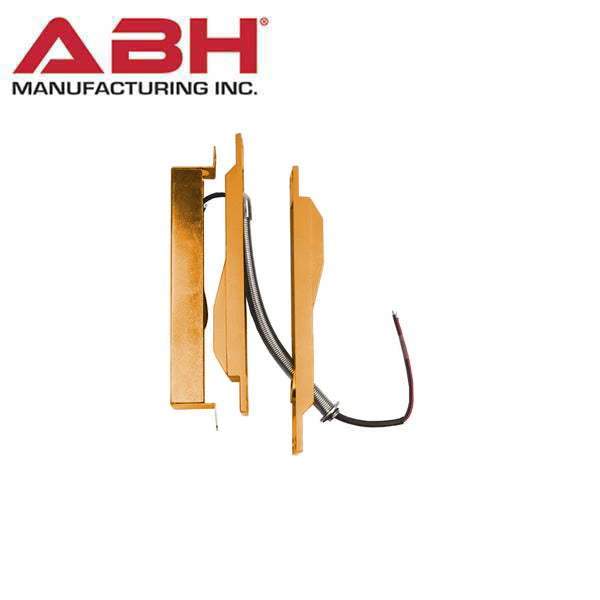

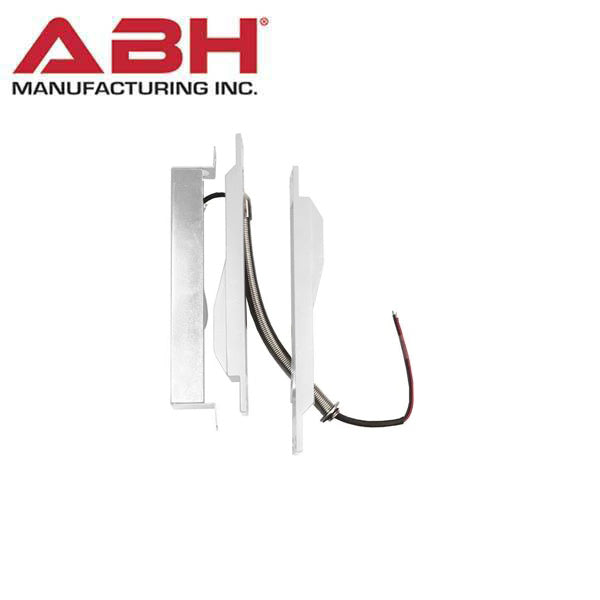

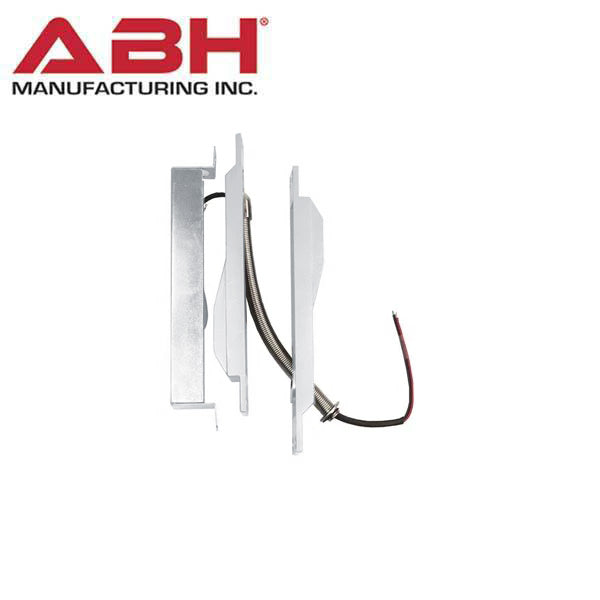

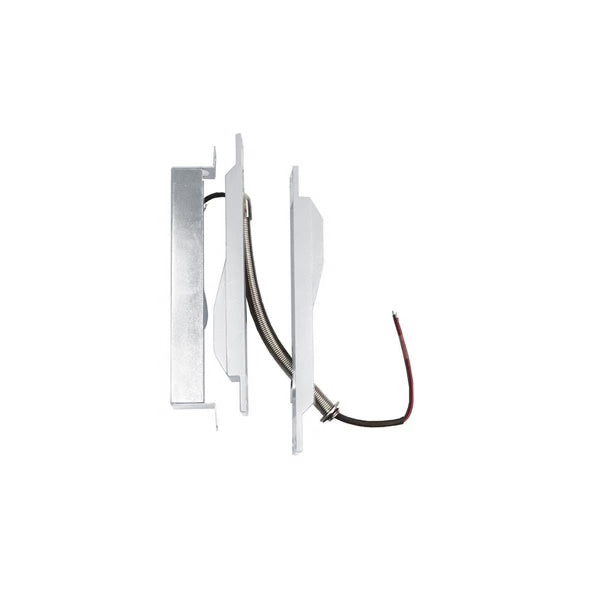

ABH - PT200SC Power Transfer - Optional Finish
Available to Order
SKU:
ABH-PT200SC-US28
NSID:
- $278.40
-
$614.40 - $278.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ABH-PT200SC
Electrical Power Transfers
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Electrical Power Transfers
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
| PT200SC | (2) 18 AWG Wires | Max. Rating: 24 VDC, 1A |
-
Features:
- Power Transfer (2) 18 AWG Wires for Swing Clear Applications
- Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
- All metal construction including backboxes - NO PLASTIC PARTS
- Ideal for high abuse or heavy traffic situations
- UL/ULC Listed for use on fire doors
- Packaged individually with fasteners for wood, steel, or aluminum doors and frames
- Approximate shipping weight: 3 lbs.
- Patent Pending
- Matches competitor's door and frame prep
-
Standard Applications:
- 1-3/4" - 2-1/4" Door thickness
- For use with Swing Clear Hinges
- Door Openings 90° - 180°
