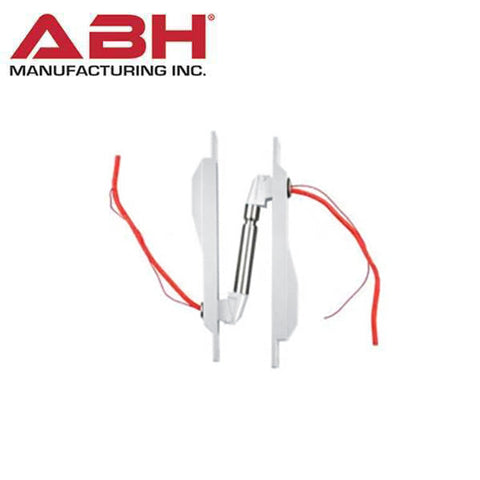

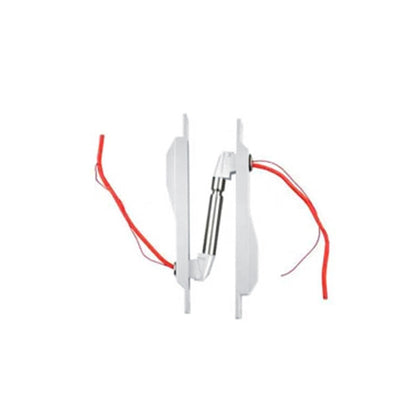

ABH - PT6PLUS Power Transfer - Optional Finish
Available to Order
SKU:
ABH-PTC6PLUS-US28
NSID:
- $241.98
-
$534.00 - $241.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ABH-PT6PLUS
Power Transfer Cat. 6 Plus Ethernet Cable
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
Power Transfer Cat. 6 Plus Ethernet Cable
Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.
| PT6PLUS | CAT-6 Standard Ethernet Cable (Max. 550MHz | (1) 22 AWG Wire; Max Rating: 24VDC, 1 A |
-
Features:
- PT6PLUS provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
- Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
- All metal construction including backboxes - NO PLASTIC PARTS
- Ideal for high abuse or heavy traffic situations
- UL/ULC Listed for use on fire doors
- Packaged individually with fasteners for wood, steel, or aluminum doors and frames
- Not for use with swing-clear hinges, pocket pivots, butt hinges larger than 6”, 1-1/2” offset pivots, or center hung doors
- Standard Finishes: US28 - Brushed Aluminum and Powder Coated Dark Bronze to match US10B Finish
-
Standard Applications:
- 1-3/4" Door thickness
- Cam lift hinges (up to 1/2" lift) - allowing for 180° door swing
- Butt hinges up to 5" - allowing for 180° door swing
- 5-1/2" butt hinges - allowing for 130° door swing
- 6" butt hinges - allowing for 110° doo swing
- Up to 3/4" offset pivots allowing for 180° door swing
- Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors
- Average weight per unit = 1.5 lbs
