Abrites - ZN086 - MC9S12 Adapter for ABPROG

Abrites - ZN086 - MC9S12 Adapter for ABPROG

In stock
SKU ABRITES-ZN086 NSID 70019
$40.00$48.00On Sale You save $8.00 (17%)
Get it shipped Today! Order within:

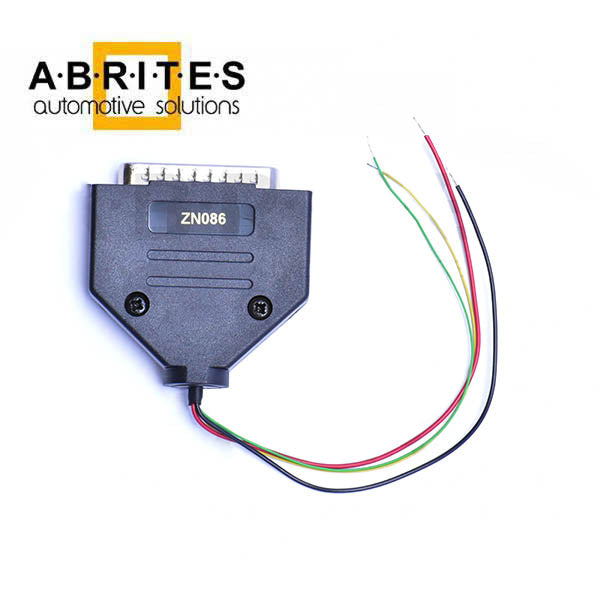

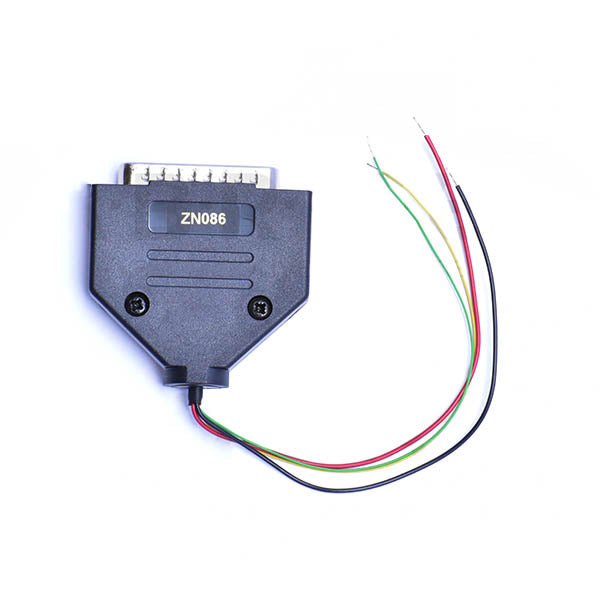

The ZN086 adapter for ABPROG is used for establishing communication with a specific type of processors. This adapter is not a standalone tool, it is used in boot mode by directly soldering the wires to four points on the PCB. The adapter is then connected to the ABPROG and AVDI to complete the procedure.

Main functionalities:

  • Reading data from MC9S12 processors
  • Writing data from MC9S12 processors
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Supported processors:

  • Unlocked MC9S12xxxxxxxxx processors

Pinout:

  • DB25 (Male) connector - used for connecting to ABPROG

4 wires 20 cm each as follows:

  • 14pin - GND - black 0.25
  • 21pin - +5v - red 0.25
  • 11pin - RST - yellow 0.14
  • 19pin - BKGD - green 0.14

These reading and writing functionalities are accessible via ABPROG Upgraded and Classic menus in the ABRITES software.
AVDI and active AMS are required.
