Abus - 00299 - Valve Lockout Ball Valve Lockout
In Stock
SKU:
ABS-00299
NSID:
38649
38650
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $26.66
-
$27.29 - $26.66
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

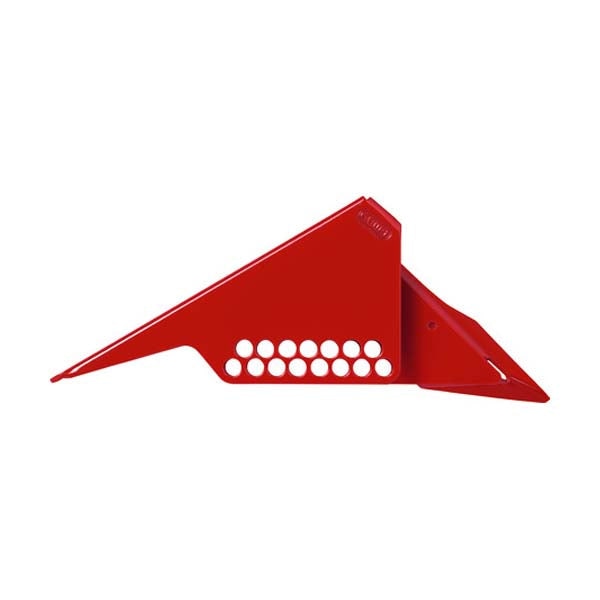

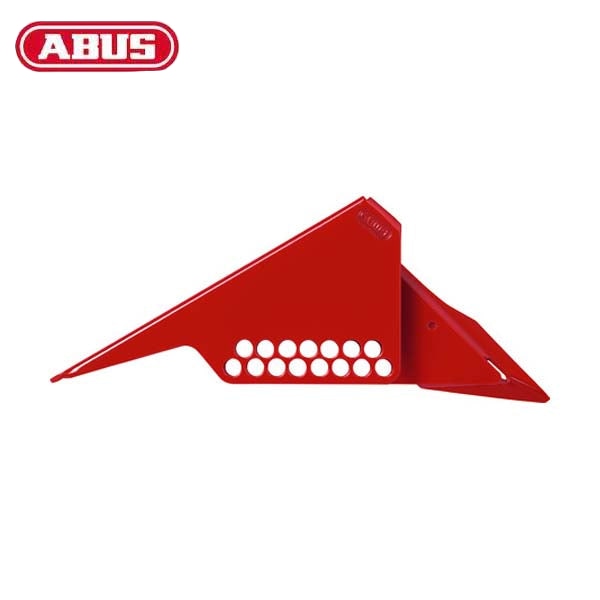

Ball Valve Lockout Ball Valve Lockout ABUS plastic ball valve lockouts secure valve handles of various designs in the off position.
- Lockout device made of robust and dielectric polypropylene
- Available in two different sizes to match most common valve handles
- Numerous locking holes allow for optimal positioning on the handle
During maintenance work, certain valves on machinery have to be locked in order to protect employees. This ball valve lockout device is used to block access to levers on standard ball valves. It stands out not only due to its low weight, it convinces mainly by the exact fit around the valve. The four arms of the lockout device make for an optimal reinforcement and easily grip even large levers. Padlocks can be exactly positioned due to the many holes on the device.
Technology:
- High-quality polypropylene; long-lasting, robust and non-conductive
- Two sizes: Handles for ball valves from 1/2" to 8"
- Well-positioned padlock holes for better grip on the valve
Operation and use:
- To block most common ball valves
Variants:
- V442: Small
- V448: Big
| Depth: | 4 31/64 inch |
| Finish: | Red |
| Length: | 12 1/64 inch |
| Locking Points: | 1 |
| Max. Handle Thickness: | 25/64 inch |
| Max. Handle Width: | 29/32 inch |
| Shackle Diameter: | 9/32 inch |
| Weight [lbs]: | 1.28 lbs |
| Width: | 4 3/32 inch |
