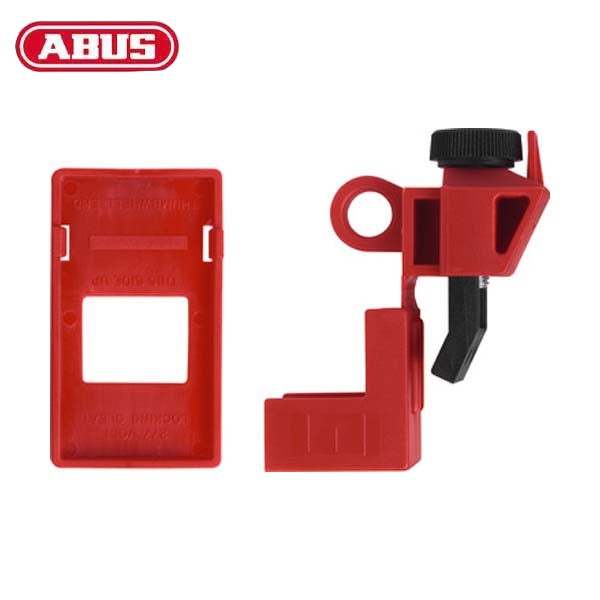

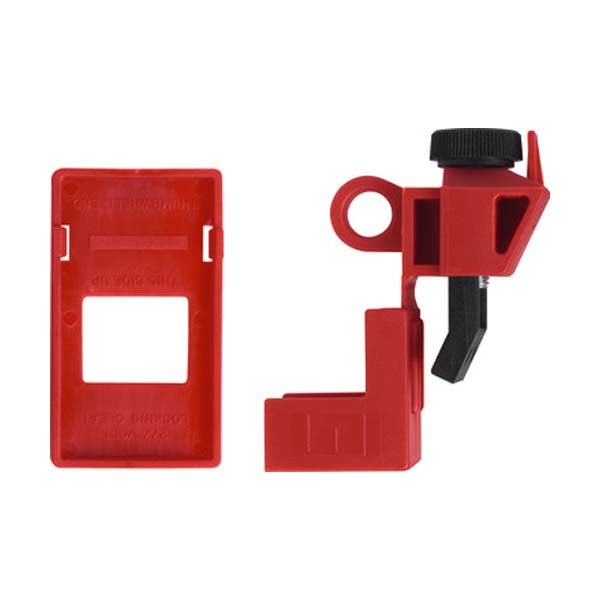

*Discontinued* Abus - 00368 - Circuit Breaker Lockout E201
Out of Stock
SKU:
ABS-00368
NSID:
38700
- $9.31
-
$11.17 - $9.31
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Circuit Breaker Lockout E201 For locking fuses in the control cabinet. The rocker is locked in the Off position by the E201 lock before being secured in position with a padlock.
- Lockout device made of high-quality dielectric plastic
- Comes with an adapter for blade-type circuit breakers
- Applicable on most common single-pole circuit breakers
- $9.31
-
$11.17 - $9.31
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSingle-pole circuit breakers can effectively be locked out by these devices. By turning the screw, the lockout device pinches the switch and blocks it from movement. During maintenance work, this procedure makes sure that switches and therefore the machines are not accidentally turned on. The non-conductive circuit breaker lockout can be used universally on any standard single-pole circuit breaker. Thanks to the additional adapter, the lockout device can also be used on blade-type electric fuses.
Technology:
- High-quality materials: long-lasting, robust and non-conductive
- Easy-to-use with screwing mechanism for secure fixation
- Can be used universally on common single-pole circuit breakers
- With adapter for blade-type electric fuses
Operation and use:
- Block access to single-pole circuit breakers during maintenance
| Depth: | 1 17/64 inch |
| Length: | 2 3/4 inch |
| Locking Points: | 1 |
| Max. Width of Circuit Breaker: | 5/8 inch |
| Shackle Diameter: | 9/32 inch |
| Weight [lbs]: | .03 lbs |
| Width: | 1 1/32 inch |
