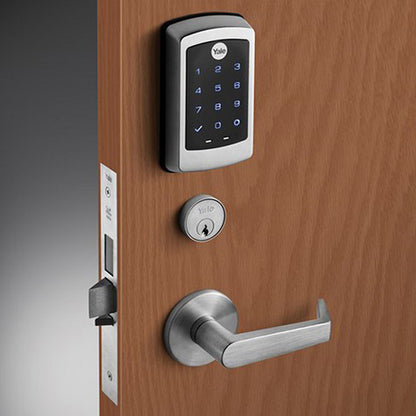

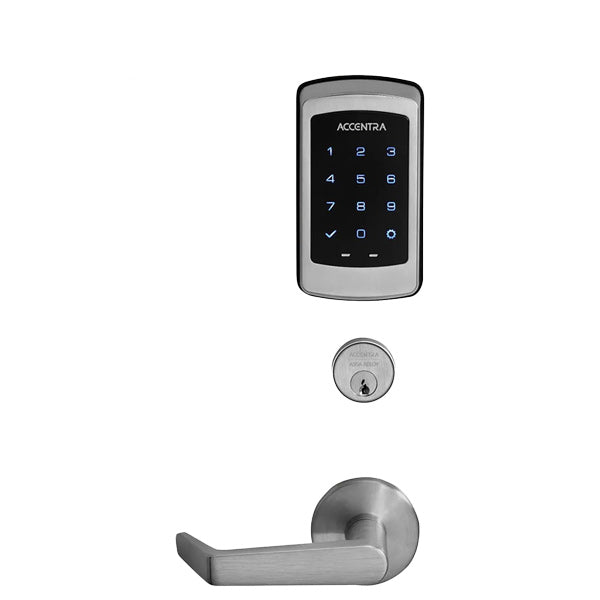

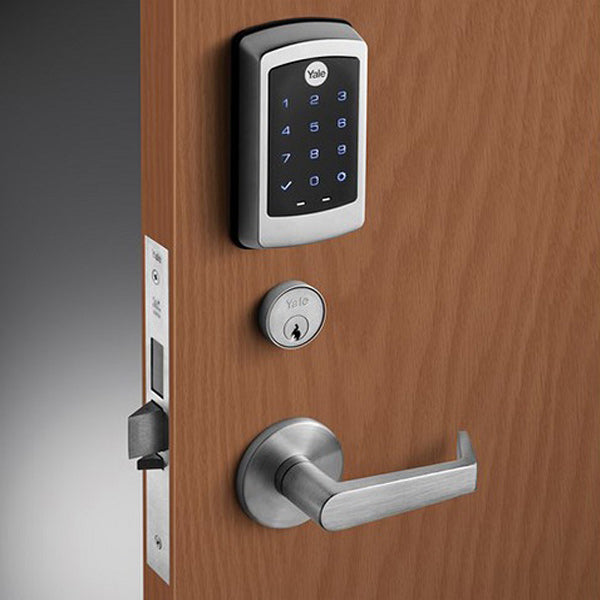

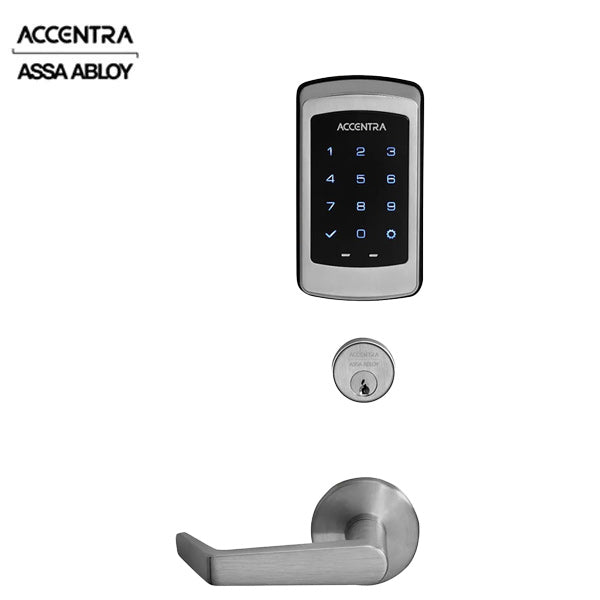

Accentra (Formerly Yale) - NTM628 - NR nexTouch - Sectional Mortise lock - Augusta Lever - Capacitive Touchscreen - Non-Handed - Satin Chrome - 626/US26D

Accentra (Formerly Yale) - NTM628 - NR nexTouch - Sectional Mortise lock - Augusta Lever - Capacitive Touchscreen - Non-Handed - Satin Chrome - 626/US26D

Available to order
SKU YALE-AUR-NTM628-NR-626 NSID 77121
$655.14$786.17On Sale You save $131.03 (17%)
Please Note: This product has a lead time

The latch bolt is retracted by the lever on either side, except when the outside lever is locked. Deadbolt operated by key outside. When the deadbolt is projected, the lever is automatically locked. Anti-panic operation. Operating the inside lever automatically retracts the latch bolt and deadbolt with the outside lever remaining locked. Deadlocking latch bolt.

Features:

  • All the features of the original nexTouch keypad lock in an attractive mortise design
  • Field reversible handing
  • Weather resistant seal
  • UL/cUL fire listed for use on fire doors having a rating up to and including 3 hours
  • Lever design meets the accessibility guidelines of the Americans with disabilities act
  • Three-year limited warranty on the mechanical and electrical components and a one-year limited warranty on the finish
  • ANSI/BHMA A156.13, Series 1000, Grade 1
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Cylinder  2153 Accentra/Yale E1R Para Keyway, 2553 Schlage C Keyway
Usage  Heavy Duty
Handing  Completely Reversible
ADA Compliance  Meets ADA requirements - A117.1 Accessibility Code
Reader Technology  NR: Keypad only, no radio
Backset  2-3/4"
Door Thickness  1-3/4"
ANSI/BHMA Standard  Certified ANSI/BHMA grade 1
Lock Function  Touchscreen Keypad
Fire Rating  UL Listed up to 3 hours
Power  AA alkaline batteries (included) with optional hardware input f or 9 VDC external power, 9v battery power backup on keypad
Strike  4-7/8"x 1-1/4" ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design  AUR (Augusta)
Warranty  3-year limited
