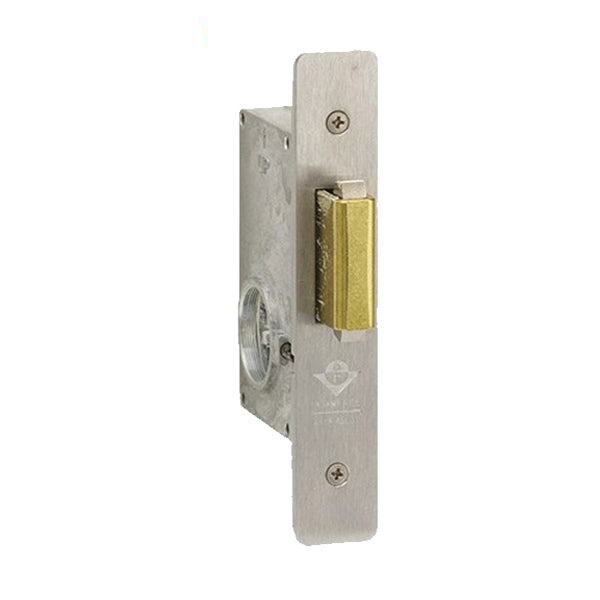

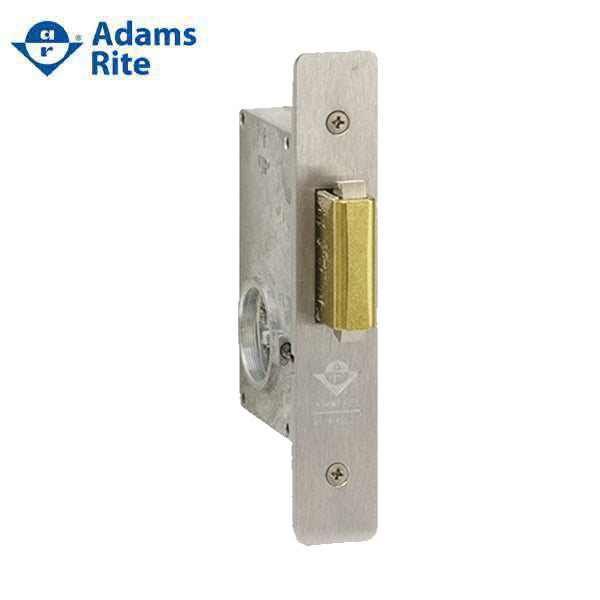

Adams Rite - 2331 - Heavy Duty Deadbolt - 1-3/4" Backset - w/ Strike - Satin Chrome
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $178.98
-
$213.58 - $178.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
2331 Heavy Duty Deadbolt provides a heavy duty deadbolt lock that expands into the strike for heavy duty hollow metal or wood applications.
Function:
A heavy duty deadbolt for hollow metal or wood sliding doors, the 2331 Heavy Duty Deadbolt throws a massive brass bolt into its strike, then expands two stainless steel dogs to secure the door. A single turn of the key expands or retracts the bolt. There is no latch action.
Operation:
360° turn of key or thumbturn extends and projects or retracts and withdraws the bolt. Key cannot be removed unless bolt is positively locked or totally retracted. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder or thumbturn with special cam dimensions. Lock accepts cylinder from either or both sides.
More Details Below
Features
| Cylinder Backset | 1-3/4" [44.45 mm] |
| Armored Faceplate | Measures 1" x 5-3/4" [25.4 mm x 146.1 mm]; Flat faceplate of brass. Available in a variety of finishes. |
| Bolt |
Brass with stainless steel dogs,1/2" x 1-1/2" [12.7 mm x 38.1 mm] with 3/4"[19.1 mm] horizontal throw and 11/32" [8.7mm] expansion above and below main bolt. |
| Special Cylinder Cam | Operable by any standard mortise cylinder with special cam dimensions. Cylinders with such cams can be readily obtained from most cylinder manufacturers. |
| Strike | 1/8" x 1" x 4-11/16" [3.2 mm x 25.4 mm x 119.1 mm] with 5/8" x 1-5/8" [15.9 mm x 41.3 mm] opening. Brass, with four-screw mounting. Trim finish same as faceplate. |
| What's Included | Individually boxed with strike and wood screws for mounting lock and strike. Cylinder and/or thumbturn available separately. |
