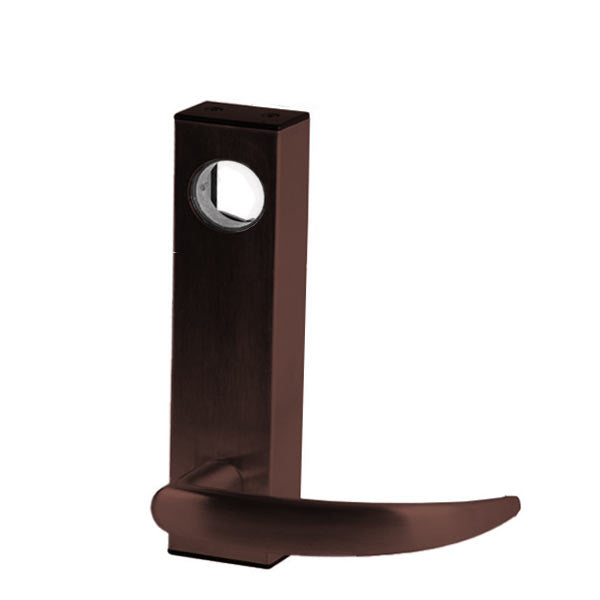

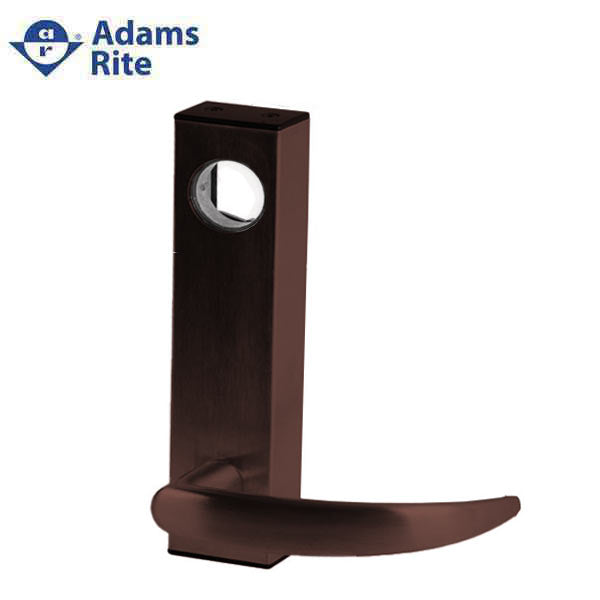

Adams Rite - 3080 - Entry Lever Trim - Narrow Stile - Without Cylinder - Dark Bronze - Non-Handed
- Product SKU: ADR-3080-01-0-31-US10B
- NSID: 23705
-
ADR-3080-01-0-31-US10B
The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
The 3080 Series provides outside activation of doors that have any type of Adams Rite exit device or deadlatch. Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so levers can be changed without having to replace the entire trim.Cylinder Sold Separately
More Details Below
Features
| For Exit Device | SVR - Surface Vertical Rods |

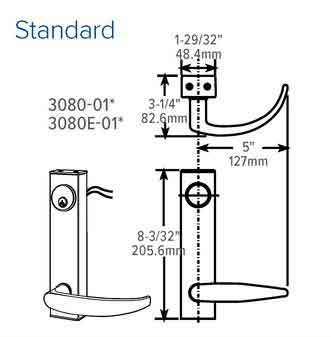

| Handle | The 3080-01 curved levers are designed to return within 1/2" (12.7 mm) of the door face. |
| Lever | Standard Lever, Curved |
| Finish | US10B - Dark Bronze |
| Handing | No Handing |
| Mortise Cylinder |
Has hole for standard 1" [25.4 mm] length, 1-5/32" (29.4 mm) diameter cylinder with MS® Cam, available separately |
Downloads
ADR-3080-01-0-31-US10B
The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
The 3080 Series provides outside activation of doors that have any type of Adams Rite exit device or deadlatch. Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so levers can be changed without having to replace the entire trim.
Cylinder Sold Separately
More Details Below
Features
| For Exit Device | SVR - Surface Vertical Rods |
| Handle | The 3080-01 curved levers are designed to return within 1/2" (12.7 mm) of the door face. |
| Lever | Standard Lever, Curved |
| Finish | US10B - Dark Bronze |
| Handing | No Handing |
| Mortise Cylinder |
Has hole for standard 1" [25.4 mm] length, 1-5/32" (29.4 mm) diameter cylinder with MS® Cam, available separately |
