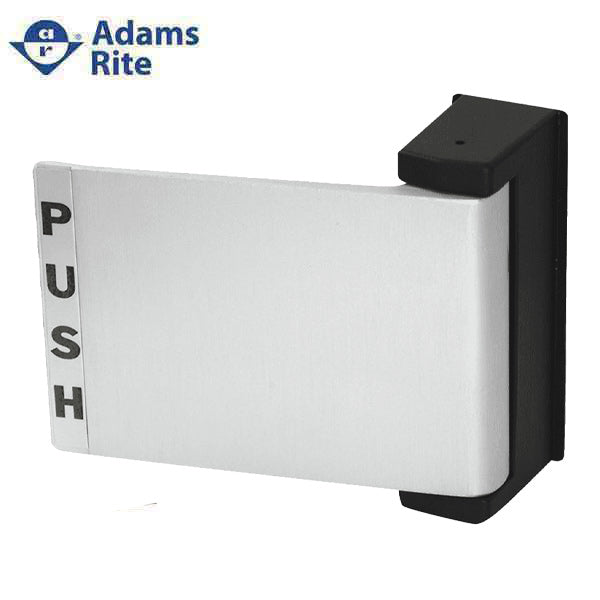

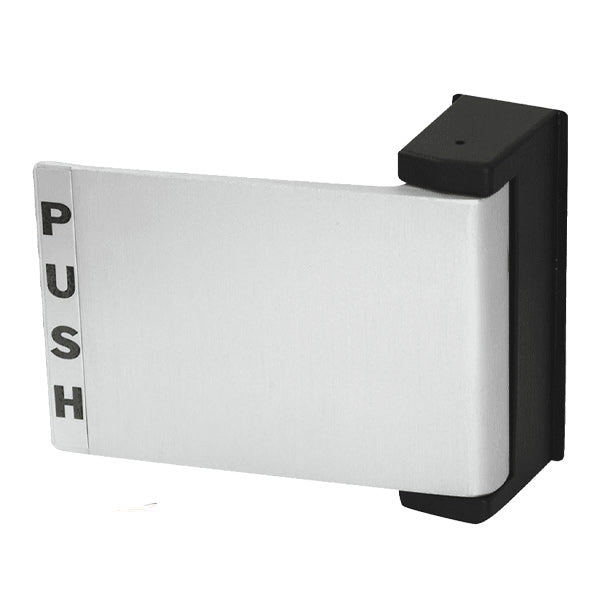

Adams Rite - 4590 - Deadlatch Paddle Handle - Pull to Left - 1-3/4" Door - Aluminum Anodized - for 4300/4500/4900 Deadlatches

Adams Rite - 4590 - Deadlatch Paddle Handle - Pull to Left - 1-3/4" Door - Aluminum Anodized - for 4300/4500/4900 Deadlatches

In stock
SKU ADR-4590-01-00-628 NSID 804
$78.31$93.97On Sale You save $15.66 (17%)
Get it shipped Today! Order within:


The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.

An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch

More Details Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Features

Operation
Configured pull left . Can be reconfigured to any mode in the
field. Dogging may not be utilized in pull configuration.
Paddle Extruded aluminum
Escutcheons Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction
Cam Plug

Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins
Monitor Switches None

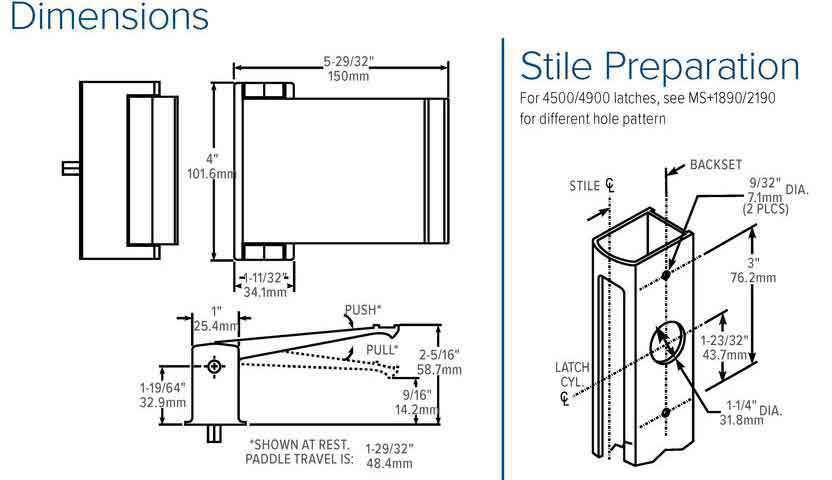

Door Thickness

For 4300, 4500, 4900 Series Deadlatches - 1-3/4"
Paddle Dogging Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging “PUSH” version only. Turning hex key in escutcheon holds the paddle down, leaving door freeswinging.

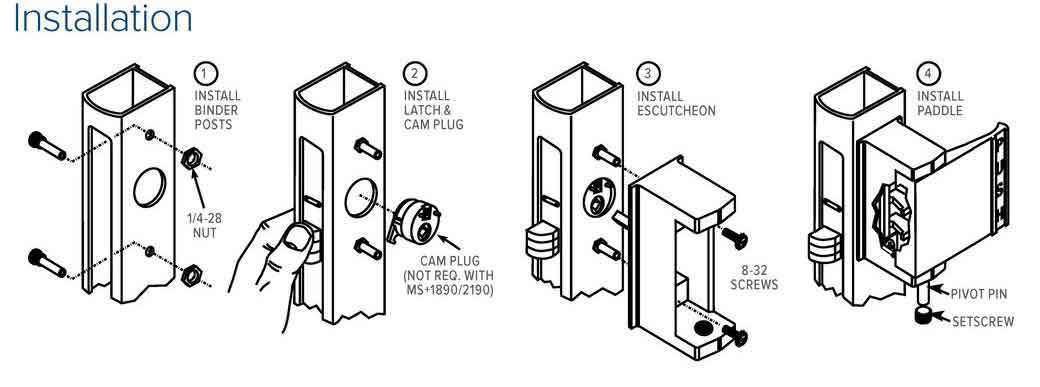

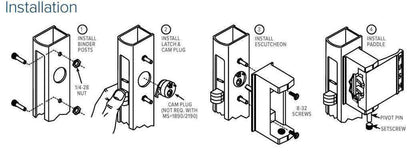

Download Installation Instructions Here
