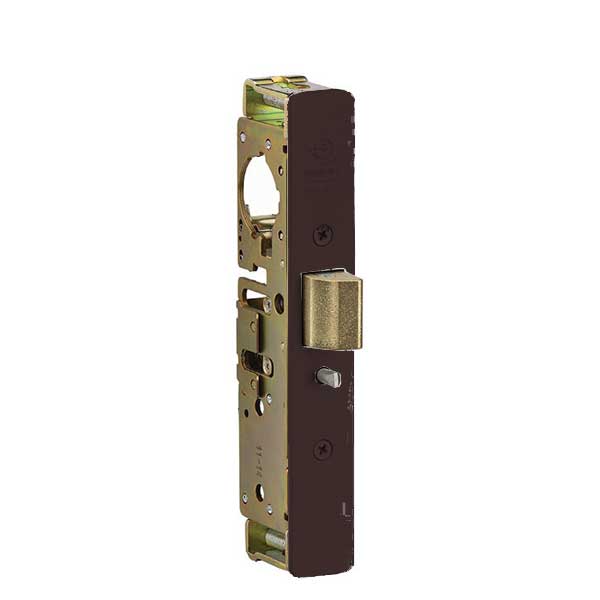

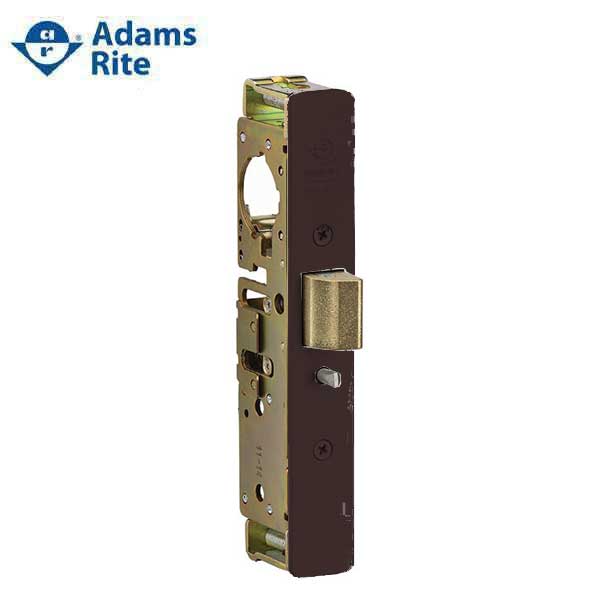

Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset - RH or LHR - 2-5/8" Mortised - Flat/Standard Jamb - Dark Bronze - Metal Door
Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset -  RH or LHR - 2-5/8" Mortised -  Flat/Standard Jamb - Dark Bronze - Metal Door
Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset -  RH or LHR - 2-5/8" Mortised -  Flat/Standard Jamb - Dark Bronze - Metal Door
Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset -  RH or LHR - 2-5/8" Mortised -  Flat/Standard Jamb - Dark Bronze - Metal Door
Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset -  RH or LHR - 2-5/8" Mortised -  Flat/Standard Jamb - Dark Bronze - Metal Door

Adams Rite - 4900 - Heavy Duty Deadlatch - 1-1/8" Backset - RH or LHR - 2-5/8" Mortised - Flat/Standard Jamb - Dark Bronze - Metal Door

$62.70 $121.00
Available: In Stock
Wishlist
  • Product SKU: ADR-4900-36-201-313
  • LIST PRICE: $121.00

    ADR-4900-36-201-313
    Item Number: 7011

    Flexibility of traffic control and installation is offered by 4900 Heavy Duty Deadlatches. A key-controlled bolt hold-back feature allows for two-way traffic for applications which require free entrance at certain times and exit-only at other times. This allows a "locked" entrance to be used as an exit by visitors already in the building. 1-3/4" [44.5 mm] minimum door thickness required. Interchangeable, without stile modification, with any MS1850SN Deadlock of same backset and faceplate shape. Replaces 4520 and discontinued 4720 ANSI Deadlatches.
    For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI).

    More Details Below

    •
    $62.70

Features

Backset  1-1/8" [28.6 mm]
Case Steel with corrosion-resistant plating. Measures 7/8" x 5-13/16" x
depth [22.2 mm x 147.6 mm x depth]
Bolt Holdback
While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt  Solid brass. Handing is easily reversible without special tools. Measures 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw.
Auxiliary Linchpin  Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in thefield for right or left beveled edge doors.
Strike Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush.
Standard Package Individually boxed with strike plate, flat and radius faceplates, and mounting screws. Cylinder, paddle, handle available separately.


Installation Instructions Download Here

 Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS®cam Cylinder Sold Separately

For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Series MS® Deadlock provides maximum security and ease of installation.

Operation
Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS®cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Lock accepts cylinder from either or both sides.

LIST PRICE: $121.00

ADR-4900-36-201-313
Item Number: 7011

Flexibility of traffic control and installation is offered by 4900 Heavy Duty Deadlatches. A key-controlled bolt hold-back feature allows for two-way traffic for applications which require free entrance at certain times and exit-only at other times. This allows a "locked" entrance to be used as an exit by visitors already in the building. 1-3/4" [44.5 mm] minimum door thickness required. Interchangeable, without stile modification, with any MS1850SN Deadlock of same backset and faceplate shape. Replaces 4520 and discontinued 4720 ANSI Deadlatches.
For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI).

More Details Below

  •

Features

Backset  1-1/8" [28.6 mm]
Case Steel with corrosion-resistant plating. Measures 7/8" x 5-13/16" x
depth [22.2 mm x 147.6 mm x depth]
Bolt Holdback
While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt  Solid brass. Handing is easily reversible without special tools. Measures 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw.
Auxiliary Linchpin  Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in thefield for right or left beveled edge doors.
Strike Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush.
Standard Package Individually boxed with strike plate, flat and radius faceplates, and mounting screws. Cylinder, paddle, handle available separately.


Installation Instructions Download Here

 Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS®cam Cylinder Sold Separately

For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Series MS® Deadlock provides maximum security and ease of installation.

Operation
Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS®cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Lock accepts cylinder from either or both sides.

Compatible With
