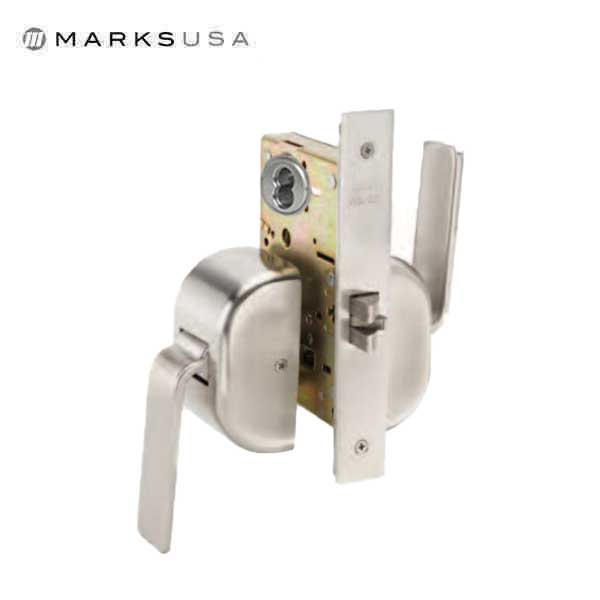

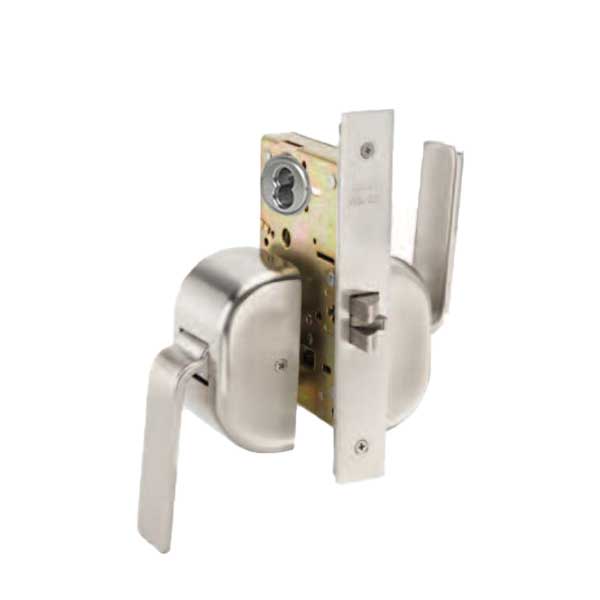

Marks USA - 5PD - LifeSaver Single Cylinder Mortise Behavioral Health Paddleset - Push / Pull - Anti-Ligature - Dormitory - 2-3/4" Backset - Satin Stainless - Grade 1
In Stock
SKU:
MRK-5PDFW-32D-G3
NSID:
17310
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $220.84
-
$288.00 - $220.84
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The PD Series LifeSaver Anti-Ligature Mortise Hospital Push/Pull Paddlesets are the best alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings.
Features:
- Functional, modern design with variable mounting positions
- Short throw angle allows for easy push/pull action to open doors even when hands are not free
- Standard 32D finish
- Universal assemblies can be push/pull vertical up or down
- Easily reversible configuration for push or pull styles
- Door Thickness is self adjusting for thicker doors
- ANSI-A156.2, Grade 1
- ADA Compliant
- Non-Handed
Specifications:
| Construction | Mortise Hospital Push and Pull Paddleset |
| Function | F13 - Dormitory - Outside keyed, Inside Thumbturn |
| Paddle | Extruded aluminum |
| Backset | 2-3/4" |
| Strike | #9035, 4-7/8" ASA curved lip strike |
| Door Thickness | 1-3/4” door thickness, self adjusting for thicker doors |
| Mounting | Variable mounting positions |
| Handing | Non-Handed Easily reversible configuration for push or pull styles |
| Finish | US32D Satin Stainless Steel |
| Door prep | Government standard #161 door prep |
| Cylinder: | G3 - Less Cylinder |
| Certifications | ANSI-A156.2, Grade 1. ADA Compliant |
| Manufacturer's Warranty | Limited Lifetime Warranty |
