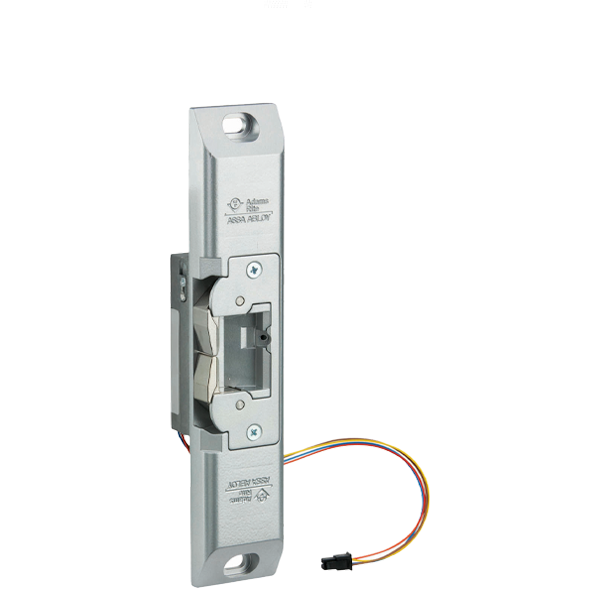

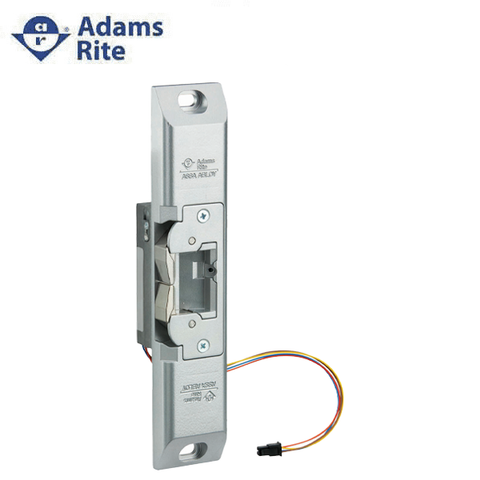

*Discontinued* Adams Rite - 74R1 - Electric Strike for Narrow Stile Rim Exit Devices - 3/4" Pullman Latchbolt - Satin Black Ritecoat - Fail Safe/Fail Secure - 12/24 VDC
Out of Stock
SKU:
ADR-74R1-119
NSID:
78786
- $299.99
-
$359.99 - $299.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This UltraLine® electric strike is for Rim Exit Devices with 3/4" Pullman Type Latchbolts, and is designed for use in narrow stile aluminum, hollow metal, and wood applications.
Specifications:
| Included Parts | Strike Body, Faceplates, Mounting screws, Mounting Plate Shims |
| Faceplate Type | Attached |
| Compatibility | Rim Exit Device with Pullman Latcholt |
| Voltage | 12 volts, 16 volts, 24 volts |
| Current and Duty | DC continuous or intermittent |
| Current Draw | .44 at 12 VDC .46 at 16 VDC .23 at 24 VDC |
| Operating Mode | Fail Secure (Standard), Fail Safe |
| ANSI/BHMA Grade | Grade 1 |
| Case Dimensions | 1-13/32" L x 1-1/16" W x 3-3/8" H |
| Faceplate Dimensions | 1-3/4" L x 11/16" W x 9" H |
| Strike Opening | 5/8" L x 9/16" W x 1-7/16" H |
| Door Material | Aluminum, Hollow Metal, Wood |
| Preload Solution | Yes |
| Ultraline | Yes |
| Static Strength | 1500 lbs |
| Dynamic Strength | 70 ft lbs |
| Cycle Testing | 250K |
| Compliance Details | UL Listed, BHMA Certified |
| Warranty | 5 Year Limited Warranty |
