Adams Rite - 74R2 - Electric Strike for Narrow Stile Rim Exit Devices - 1/2" Pullman Latchbolt - Anodized Aluminum - Fail Safe/Fail Secure - 12/24 VDC

Adams Rite - 74R2 - Electric Strike for Narrow Stile Rim Exit Devices - 1/2" Pullman Latchbolt - Anodized Aluminum - Fail Safe/Fail Secure - 12/24 VDC

In stock
SKU ADR-74R2-130 NSID 718
$219.91$256.20On Sale You save $36.29 (14%)
Get it shipped Today! Order within:

List Price: 364.00

ADR-74R2-130

74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" [12.7 mm] Pullman latchbolts.
For use in aluminum, hollow metal or wood applications.
Designed for use in aluminum applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Features

Certifications ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

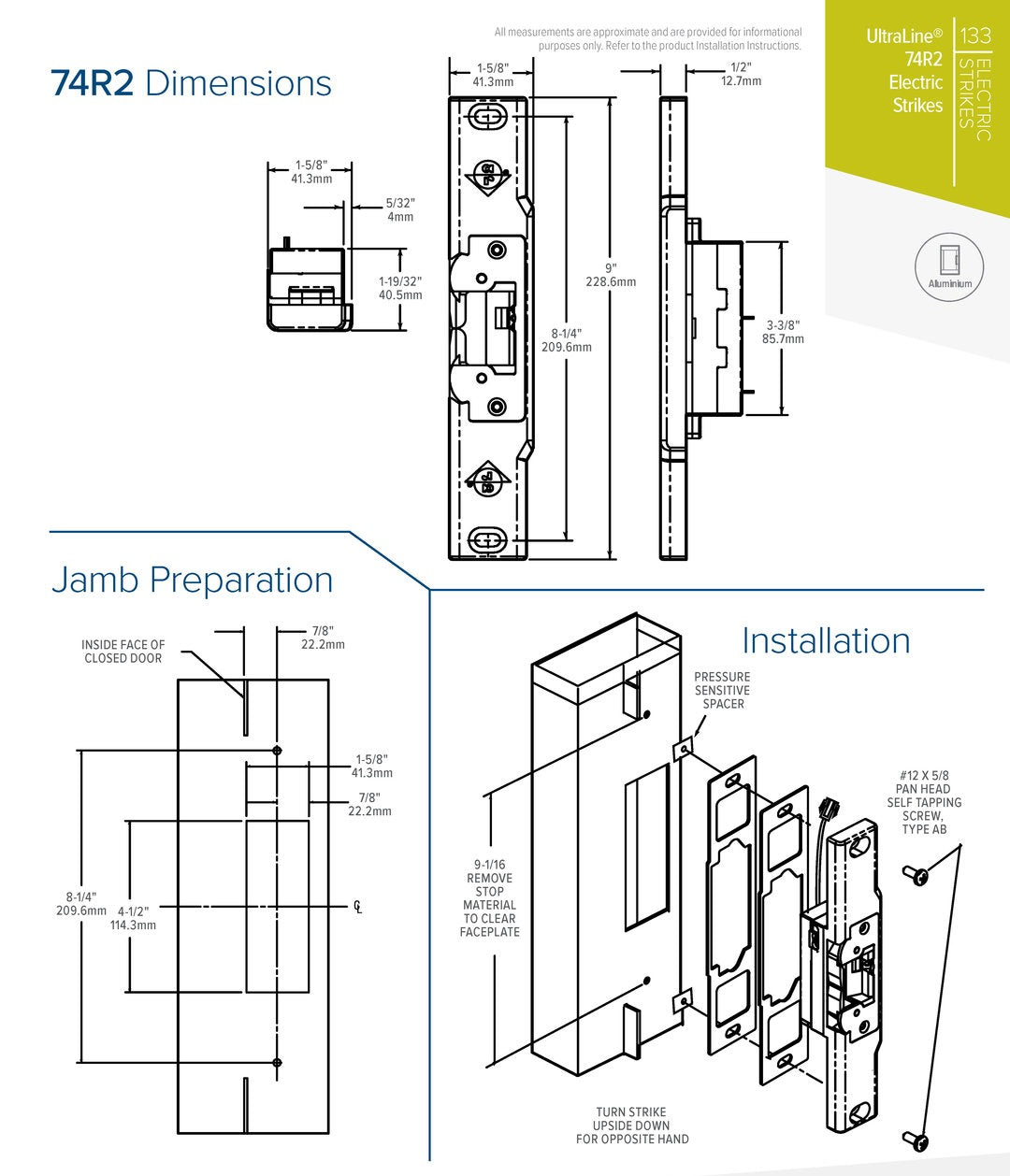

Case 1-13/32" x 3-3/8" x 1-1/8" deep [35.7 mm x 85.7 mm x 28.6 mm deep]
Strike Opening Bolt retaining keeper is stainless steel.
5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep].
Faceplate

Not separate 1-5/8" x 9 x 1/2" [41.3 mm x 228.6 mm x 12.7 mm]
Voltage Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector
Current Draw

44A at 12 VDC
23A at 24 VDC
Fail Safe | Fail Secure Field selectable fail safe/fail secure
