Adams Rite - 8200MLR - Narrow Stile - Surface Vertical Rod Exit Device - 36" - US32D - Stainless Steel
In Stock
SKU:
ADR-8200MLR-36-US32D
NSID:
67499
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $1,350.00
-
$1,620.00 - $1,350.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LIST PRICE: $713.00

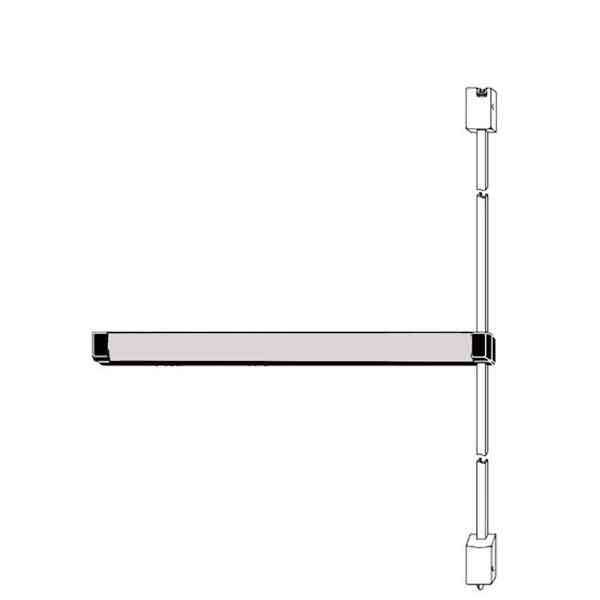

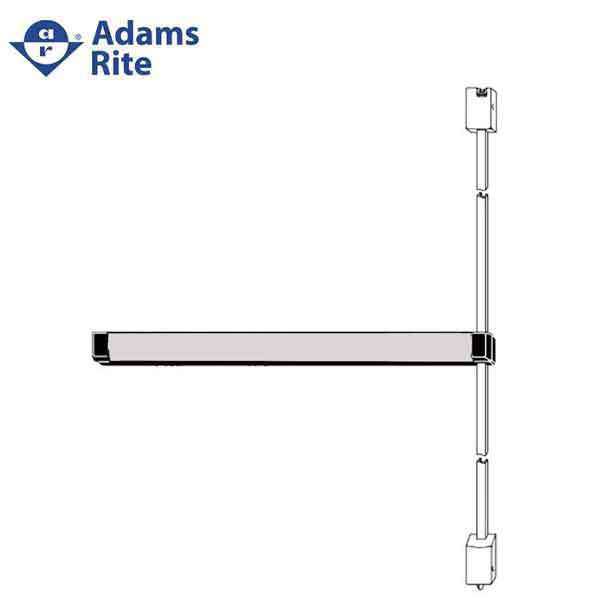

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a lifesafety exit device with surface vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors
More Details Below
Features
| Certifications | UL 305 Panic hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2 |
| Materials | Push bar made of extruded aluminum, US32D - Stainless Steel Finish |
| Handing | Device is non-handed. |
| Push bar Length |
Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width. |
| Bar Height | Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm]. |
| Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. |
| Door Height | Standard configuration suitable for doors up to 8' [2.44 m] door, with bar height at 40" [1016 mm] – 44" [1117.6 mm]. For doors up to 10' [3.05m] use 8055 Tall Door Kit available separately |
| Stile Width | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | Electric Dogging |
| Latch Retraction | Motor Latch Retraction |
| Fasteners | Standard machine screws |
| Cylinders | Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately |
| Cylinder x Fixed Pull Functions | For entry trim function 03 (Night latch - key releases latch) select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately |
| Entry Trim Functions | For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32 [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately |
| Bolts and Strikes | The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. Supplied with standard header strike. |
