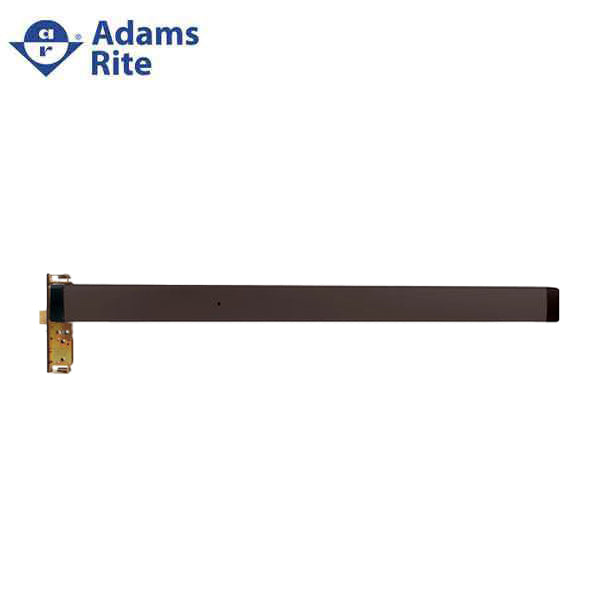

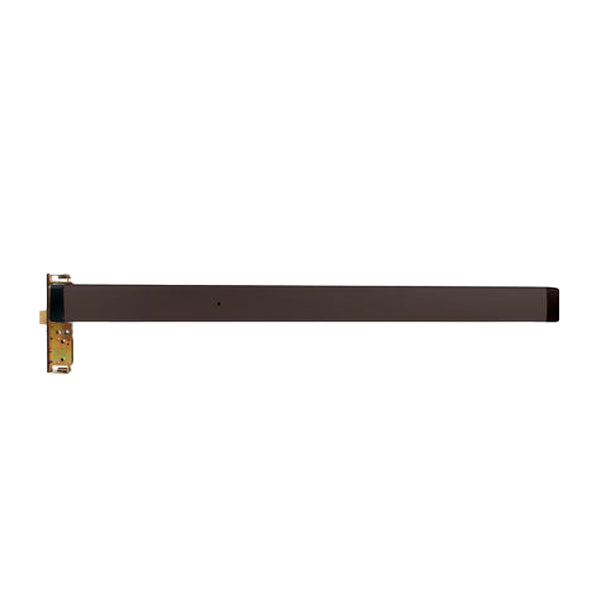

Adams Rite - 8420 - Narrow Stile - Mortise Exit Device - Dark Bronze Anodized - 1 1/18" - LHR - 42"

In Stock
SKU: ADR-8420-38242
NSID: 32262

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$415.13
$725.00
$415.13

LIST PRICE: $725.00

The 8400 Series Narrow Stile Mortise Exit Device is designed
for narrow stile aluminum applications that require a lifesafety exit device with mortise locking solution.
Designed for use in single door applications.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Certifications UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Materials Push bar made of extruded aluminum,
clad or anodized in a variety of finishes
Handing LHR
Push bar Length

Standard size: 36" [914.4 mm], Standard width bars can be field cut to the next smallest opening width.

Backset 1-1/8" [28.6 mm] Fits standard cutout used for the
Adams Rite 4900 Heavy Duty Deadlatch
on narrow stile aluminum doors.
Door Thickness Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging Standard dogging with hex key
Fasteners Standard machine screws.
Cylinders Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm].
Entry Trim Functions For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32 [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder.Accommodates cylinder lengths from 1" [25.4
mm] to 1-1/4" [31.8 mm]. Sold separately.
Bolts and Strikes

Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt. Standard strike of stainless steel included.


Download Installation Instructions Here
