Please Note: This product ships within 2 Days
ADR-8675-36-83-628

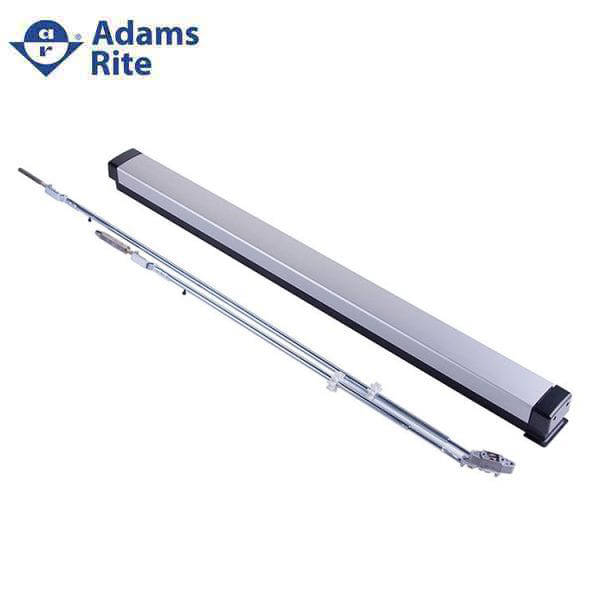

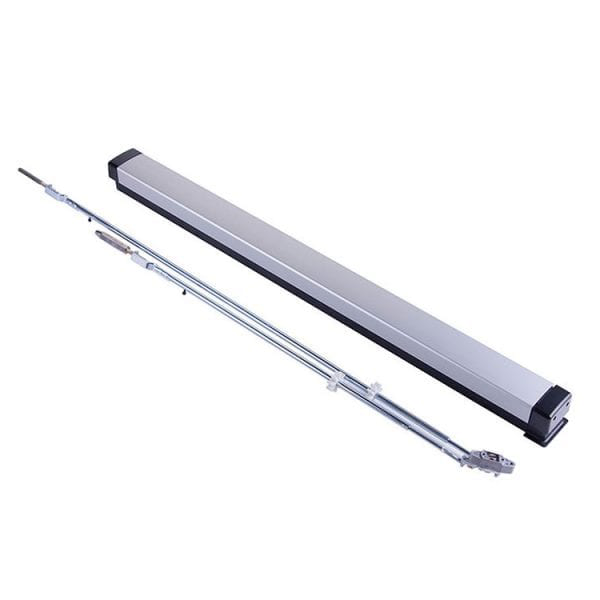

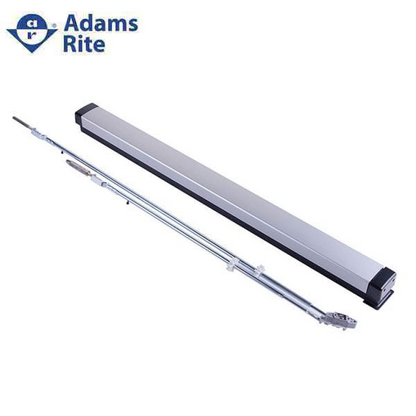

Designed for applications that require a life-safety exit device with concealed vertical rods for two-point locking.
Features:
More Details Below
Features
Materials | Push bar made of extruded aluminum, cladded or anodized |
Handing | Device is non-handed. |
Push bar Length | Standard sizes: 36" [914.4 mm]. Standard width bars can be field cut to the next smallest opening width. |
Bar Height |
Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm]. |
Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm]. Please contact factory for more details. |
Door Height | Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height. |
Stile Width | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors. |
Stile Wall | Doors with stile walls other than 1/8" [3.2 mm] require modification. |
Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
Dogging | Standard dogging with hex key or optional cylinder dogging. Electric Dogging option has been discontinued. Motorized and Electric Latch Retraction options can replace Electric Dogging requirement, see Options & Accessories. |
Fasteners | Standard machine screws |
Cylinders | Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately. |
