Adams Rite - 8803 - Narrow Stile - Rim Exit Device - 36" - Anodized Black

In Stock
SKU: ADR-8803-36
NSID: 16963

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$287.53
$500.00
$287.53

LIST PRICE: $500.00

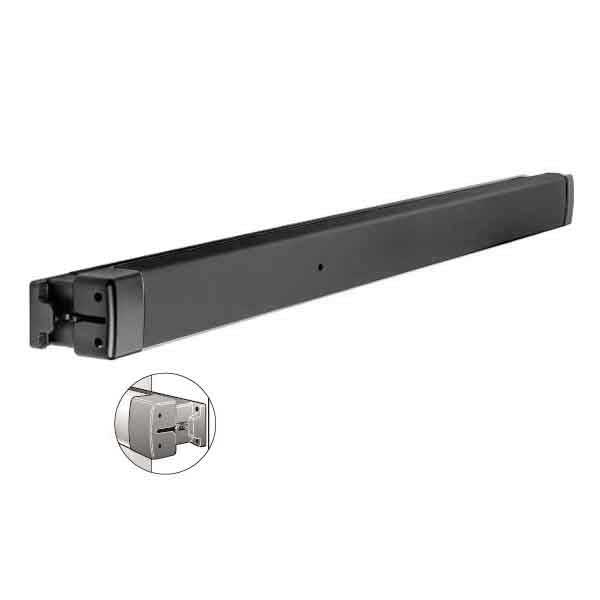

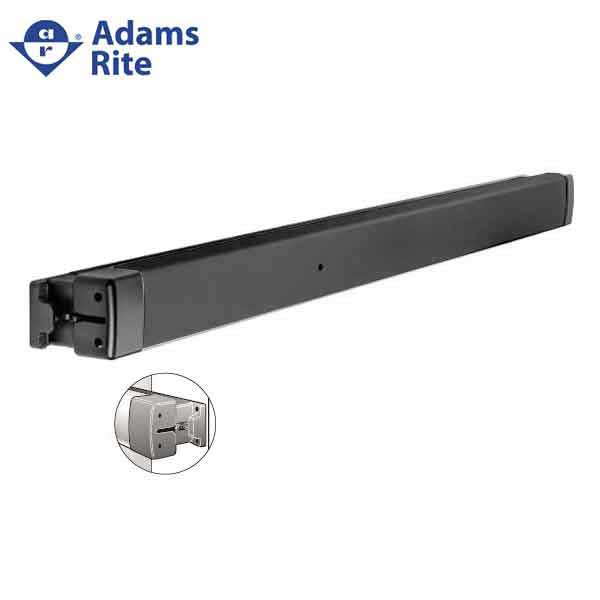

The 8800 Series Narrow Stile Rim Exit Device is designed for
narrow stile aluminum applications that require a life-safety exit

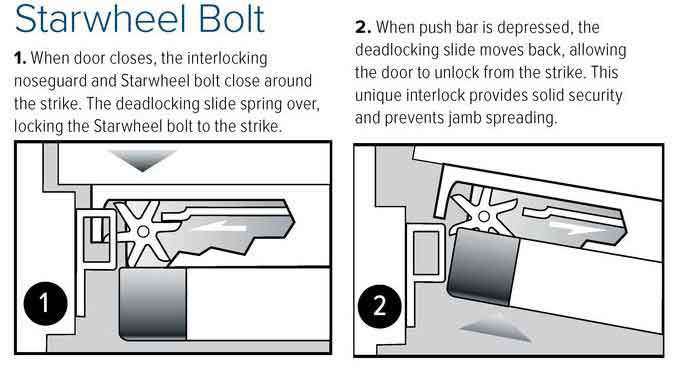

device with Starwheel interlocking solution. Designed for use in
applications with single doors or pairs of doors with a mullion.

More Details Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Features

Certifications UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Materials Push bar made of extruded aluminum,
clad or anodized in a variety of finishes
Handing Device is non-handed.
Push bar Length

Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width.

Door Thickness Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging Standard dogging with hex key or optional cylinder dogging.
Fasteners Standard machine screws.
Cylinders Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder

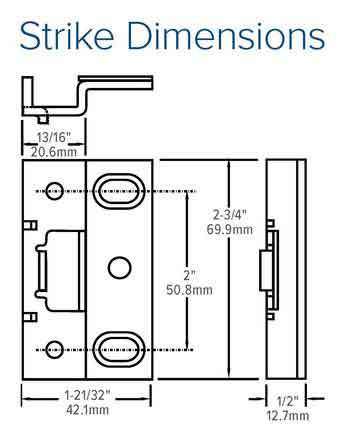

Strike Standard strike and narrow
versions for centering doors in 4"
jamb (both strikes included).



Download Installation Instructions Here
