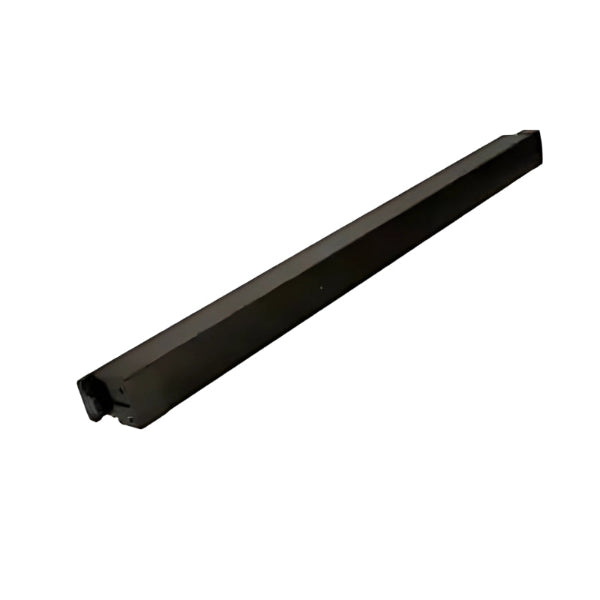

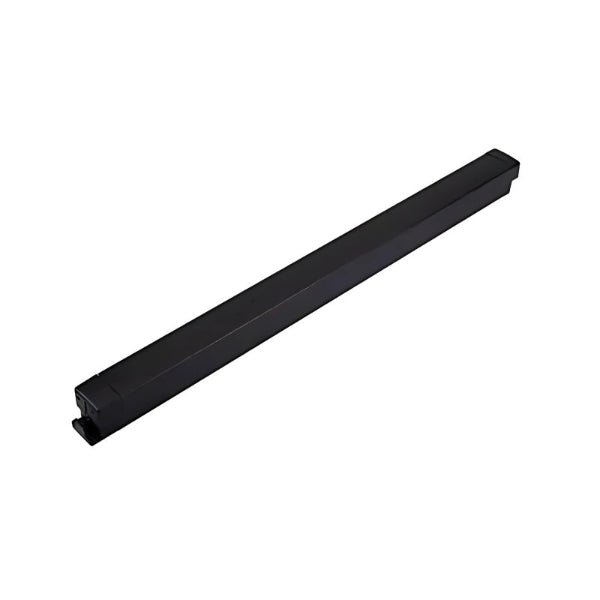

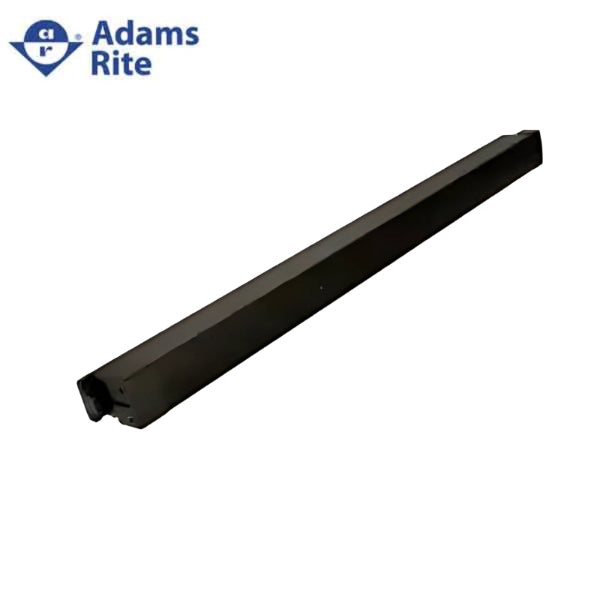

Adams Rite - 8803 - Narrow Stile - Rim Exit Device - 42" - Black Anodized Aluminum 315/335 Finish
In Stock
SKU:
ADR-8803-42
NSID:
77508
- $315.26
-
$378.31 - $315.26
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.
- Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Handing: The device is non-handed. Lever Entry Trim is field reversible.
- Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height: Standard model adjusts from 30” to 44”.
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16” when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging is also available for the 3100 and 8100 Series.
- Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn, and trim ring information.
- Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST
Specifications:
| Hand | Non-Handed |
| Color | Black Anodized Aluminum |
| Color Code | 315/335 |
| Door Thickness | 1-3/4 In. - 2-1/4 In |
| Device Length | 42 In |
| Fire Rated | No |
| Device Type | Rim |
| Includes Trim | No |
| Mechanical Function | Universal |
| Minimum Stile Size | 2 In |
| Physical Appearance | Narrow Stile Pushpad |
| Product Type | 8800 Series |
| Alternate Part Number | 189336 |
